AMGO BP-9X

The BP-9X is a base-plate two-post lift designed for low ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling higher than 9.5 feet. The BP-9X features symmetric arms, and automatic arm restraints. The BP-9X also has a single point release switch to make it easier to unlock both column locks from one column.

Click to download Product Brochure

Click to download Product Manual

Description

Features

9,000 lbs capacity, commercial grade 2-post base plate lift is designed andbuilt for professional shops and home garages to fit low ceiling workshop environment without overhead obstructions.
Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety.
4 three-stage arms are suitable for more vehicles.
Automatic arm restraints keep the arms locked in their proper positions.
Self-lubricating UHMW Polyethylene sliders and bronze bush.
Aircraft quality cable is used for synchronization.
Detachable foot guard and tool tray allow for a clutter free workspace.

Model	BP-9X
Lifting Capacity	9,000 lbs （4,082 kg）
Lifting Time	49s

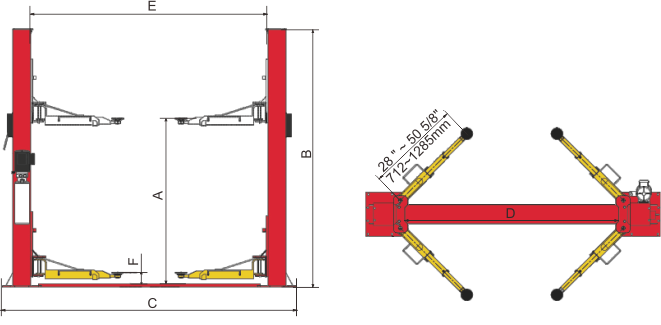

A: Lifting height	76 3/8″ ~ 85 3/8″ (1940~2169mm)
B: Overall Height	111 7/8″ (2841mm)
C: Overall Width	136 1/4″ （3460mm）
D: Drive-Thru Clearance	100 3/4″ （2560mm）
E: Width Between Columns	112 1/4″ (2850mm)
F: Minimum Pad Height	3 1/2″ （90mm）
Gross Weight	1,590 lbs（721 kg）
Motor	2.0HP/220V/60Hz,Single Phase

Detailed Images

The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

4 three-stage arms are suitable for more vehicles.

Single point safety release makes it easier for operators to unlock both column locks from one column.

Two locks, one release. Only available from AMGO.

Optional base plate, Kit No: 20903

Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802

Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
