AMGO OHX-10H
The OHX-10H is the extremely high lifting model with lifting height up to 78 3/4″ ~ 87 3/4″. Height & Width adjustment. The lift is designed with super asymmetric arms and share many same features as model OHX-10.
Features
- Dual hydraulic cylinders, designed and made on high standard, high quality seals.
- Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
- 3/8″ aircraft quality cable is used for synchronization.
- Self lubricating UHMW Polyethylene sliders and bronze bushings.
- Single-point safety release, and dual safety design.
- Clear floor design, provides unobstructed floor use.
- Overhead safety stop device.
- Automatic arm restraints keep the arms locked in their proper positions.
- Adjustable heights for OHX-10H.
- Stackable adapters 1.5″, 2.5″, 5″ as standard.
- The height and width are adjustable.
- Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.
Model
- OHX-10H
Lifting Capacity
- 10,000 lbs (4,536 kg)
Lifting Time
- 63s

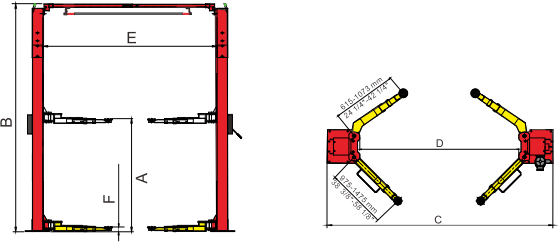

A: Lifting height
- 78 3/4″ ~ 87 3/4″ (2000~2229mm)
B: Overall Height
- 157″ ~ 168″ (3988~4267mm)
C: Overall Width
- 135″ ~ 140 7/8″ (3428/3578mm)
D: Minimum Pad Height
- 99 1/2″ ~ 105 1/2″ (2528 ~ 2678mm)
E: Width Between Columns
- 112 1/4″ ~ 118 1/8″ (2850 ~ 3000mm)
F: Minimum Pad Height
- 3 1/2″ （90mm）
Gross Weight
- 1,744 lbs （791 kg）
Motor
- 1,744 lbs （791 kg
Model
OHX-10H
Lifting Capacity
Lifting Time
A: Lifting height
B: Overall Height
C: Overall Width
D: Minimum Pad Height
E: Width Between Columns
F: Minimum Pad Height
Gross Weight
Motor
SPECIFICATIONS

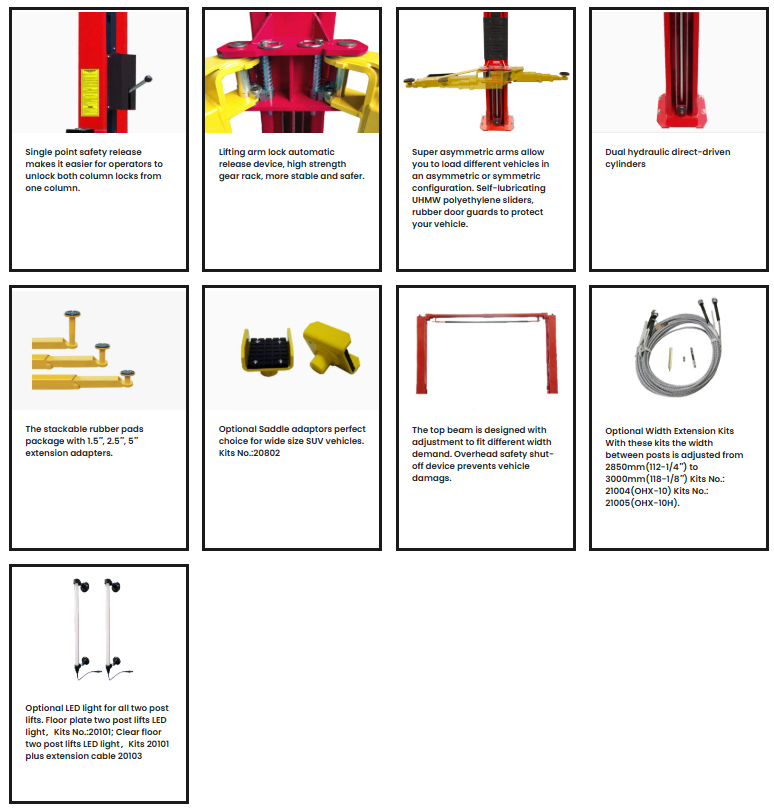

DETAILED IMAGES

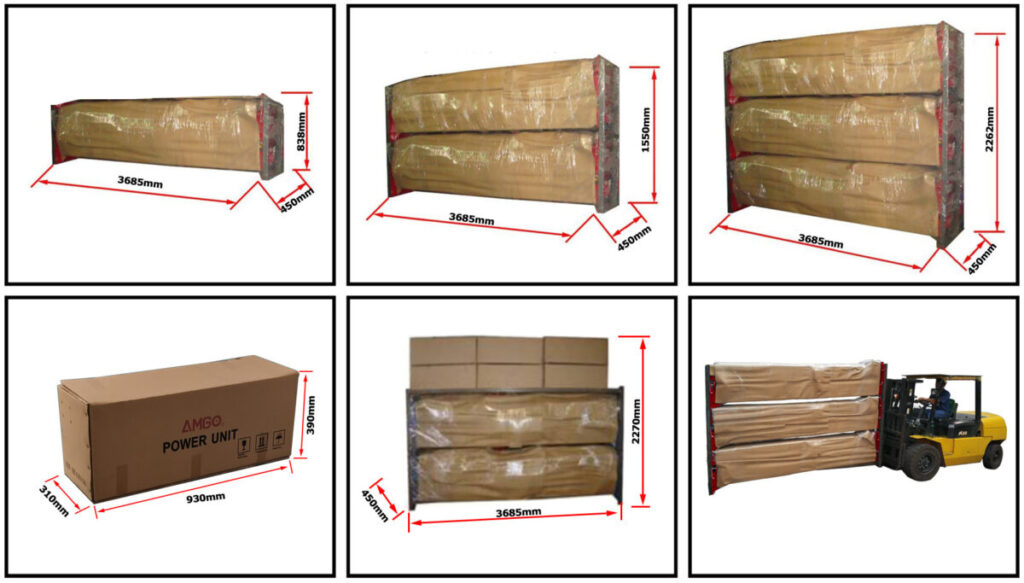

SHIPPING INFORMATION
