AMGO OHX-10

The OHX-10 is designed with super asymmetric arms that can be configured with symmetric and asymmetric. The very long carriages design makes the lift working much smoothly and reliable. The top beam is designed to be adjusted in length, so it is easy to install the OHX-10 with about 6″ wider by using the width extension kits.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • Dual direct drive hydraulic cylinders made to high standards
  • Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration
  • Single point safety release, allows the operator to disengage both columns simultaneously
  • Self lubricating UHMW Polyethylene sliders and bronze bushings
  • Clear floor design, provides unobstructed floor use
  • Single piece column allowing for easier installation
  • Stackable rubber pads and 1.5″, 2.5″, 5″
  • Width adjustable kit optional. Part #21004
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Model

  • OHX-10

Lifting Capacity

  • 10,000 lbs (4,536 kg)

Lifting Time

  • 57s

A: Lifting height

  • 71 1/2″〜80 1/2″ (1815〜2044mm)

B: Overall Height

  • 144″ (3658mm)

C: Overall Width

  • 135″ / 140 7/8″ (3428/3578mm)

D: Minimum Pad Height

  • 99 1/2″ / 105 1/2″ (2528/2678mm)

E: Width Between Columns

  • 112 1/4″ / 118 1/8″ (2850/3000mm)

F: Minimum Pad Height

  • 3 1/2″ （90mm）

Gross Weight

  • 1,620 lbs (735 kg)

Motor

  • 2.0HP/220V/60Hz,Single Phase

Model

OHX-10

SPECIFICATIONS

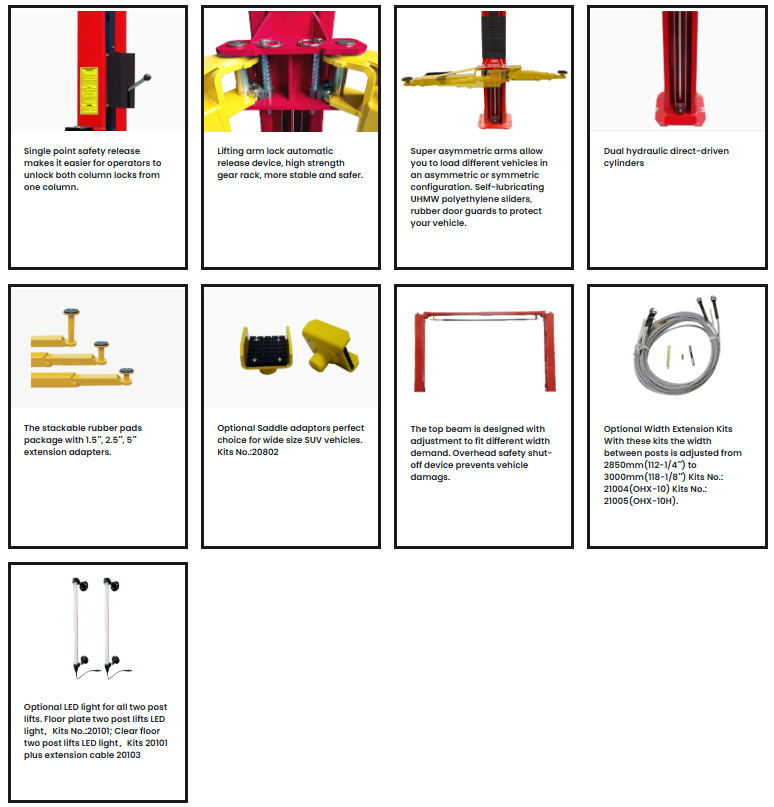

DETAILED IMAGES
