AMGO OH-9

Our OH-9 fits in garages with 12.5 ft ceilings and has a lifting height of 71 1/2″〜80 1/2″. With a 9,000lbs lifting capacity and a great price, this is the perfect lift for any shop or garage enthusiast by having both configuration of Symmetric and Asymmetric arms.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • Dual direct drive hydraulic cylinders made to high standards
  • Super-Asymmetric Arm design, makes finding the lift point of the car easier
  • Single point safety release, allows the operator to disengage both columns simultaneously
  • Self lubricating UHMW Polyethylene sliders and bronze bushings
  • Clear floor design, provides unobstructed floor use
  • Overhead safety shut off device measures vehicle damage
  • Stackable rubber pads and 1.5″, 2.5″, 5″
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Model

  • OH-9

Lifting Capacity

  • 9,000 lbs (4,082 kg)

Lifting Time

  • 57s

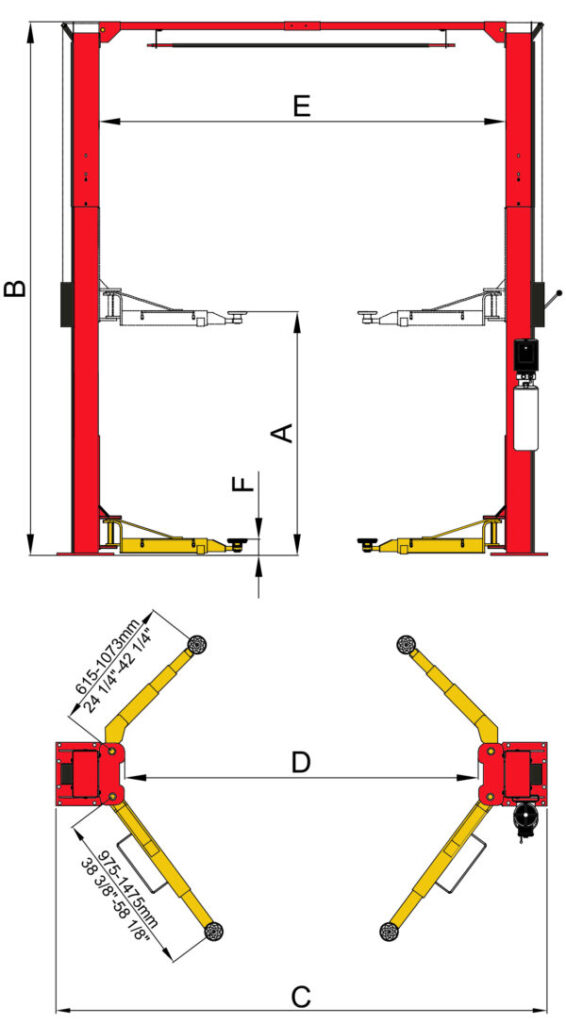

A: Lifting height

  • 71 1/2″〜80 1/2″ (1815〜2044mm)

B: Overall Height

  • 142 1/2″/ 150 1/2″ (3621/3821mm)

C: Overall Width

  • 135″ (3428mm)

D: Minimum Pad Height

  • 99 1/2″ (2528mm)

E: Width Between Columns

  • 112 1/4″ (2850mm)

F: Minimum Pad Height

  • 3 1/2″ （90mm）

Gross Weight

  • 1,515lbs (687kg)

Motor

  • 2.0HP/220V/60Hz,Single Phase

Model

OH-9

SPECIFICATIONS

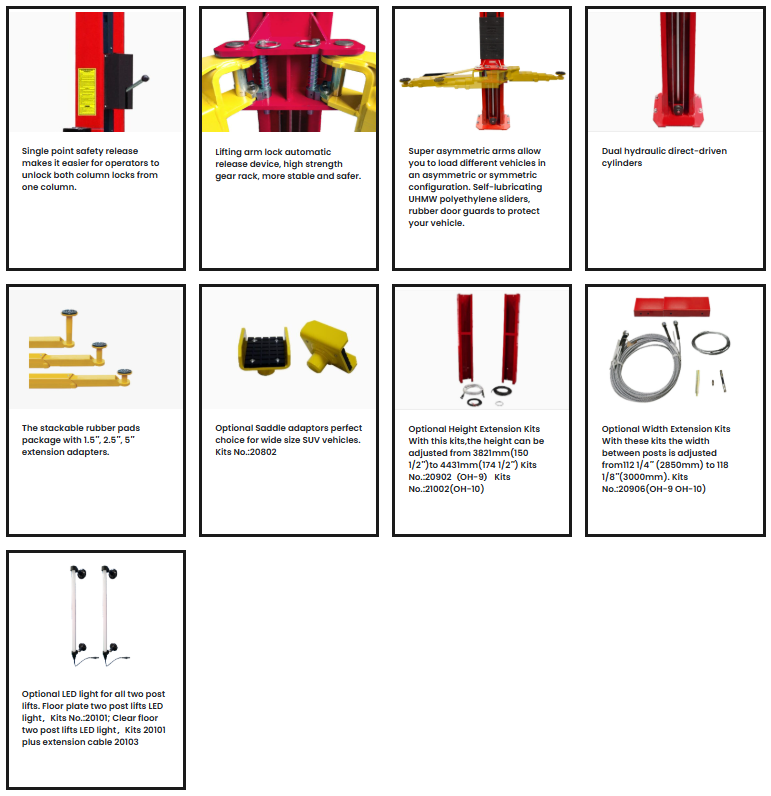

DETAILED IMAGES
