AMGO OH-18

AMGO’s latest OH-18 boasts heavy-duty construction, offering immense lifting capacity up to 18000lbs. It features long, sturdy carriages for enhanced stability and is equipped with two types of rubber pads to suit various vehicles. Moreover, it incorporates AMGO’s 3 in 1 technology for effortless height setting.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

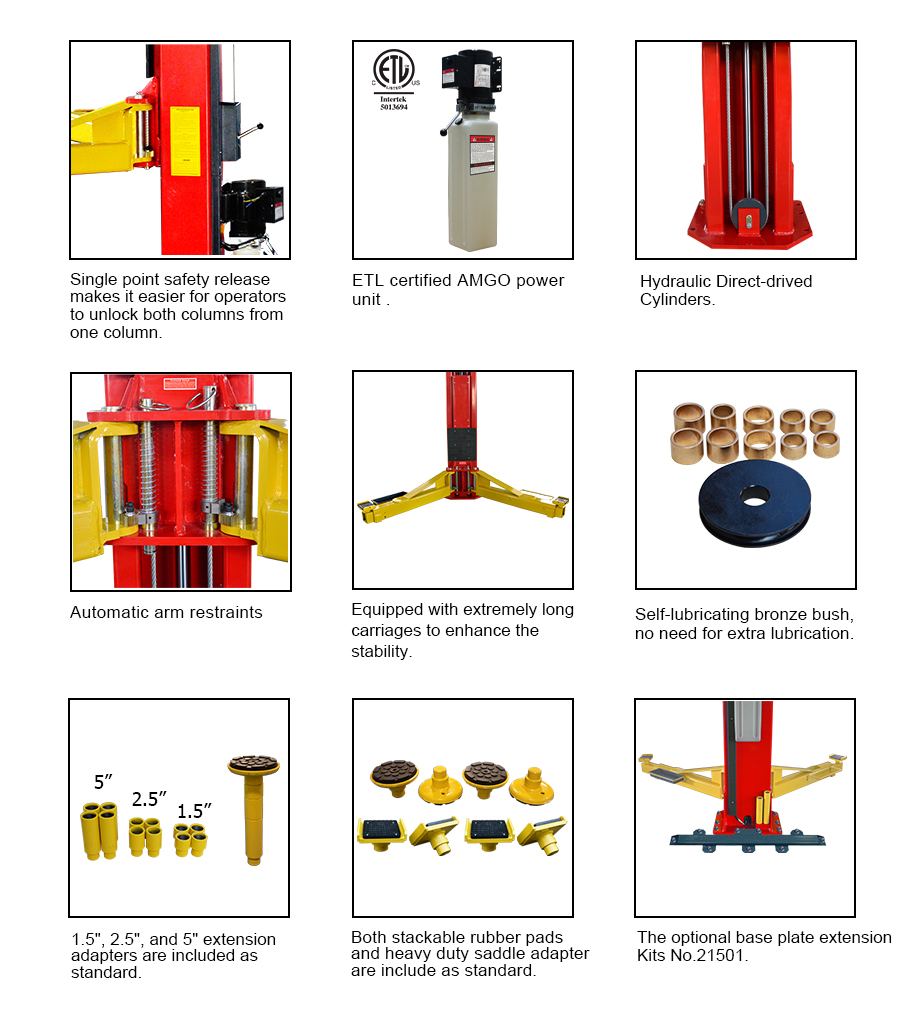

Features

  • 18,000 Lbs capacity
  • Clearfloor design, provide unobstructed floor space.
  • Overhead safety shut-off device.
  • Manual single-point safety release, unlock both columns from 1 side.
  • Automatic arms restraints.
  • Aero sync cables incorporate AMGO 3 in 1 technology.
  • Dual hydraulic direct-drived cylinders, designed and made on high standard, high quality seals for cylinder.
  • Standard two-stage rugged arms to ensure the heavy load stability.
  • Equipped with long, sturdy carriages for enhanced stablity.
  • Both standard rubber pads and heavy duty saddle adapters come as standard.
  • Available with 3 heights settings.

Model

  • OHX-10

Lifting Capacity

  • 10,000 lbs (4,536 kg)

Lifting Time

  • 57s

A: Lifting height

  • 71 1/2″〜80 1/2″ (1815〜2044mm)

B: Overall Height

  • 144″ (3658mm)

C: Overall Width

  • 135″ / 140 7/8″ (3428/3578mm)

D: Minimum Pad Height

  • 99 1/2″ / 105 1/2″ (2528/2678mm)

E: Width Between Columns

  • 112 1/4″ / 118 1/8″ (2850/3000mm)

F: Minimum Pad Height

  • 3 1/2″ （90mm）

Gross Weight

  • 1,620 lbs (735 kg)

Motor

  • 2.0HP/220V/60Hz,Single Phase

Model

OHX-10

SPECIFICATIONS

DETAILED IMAGES

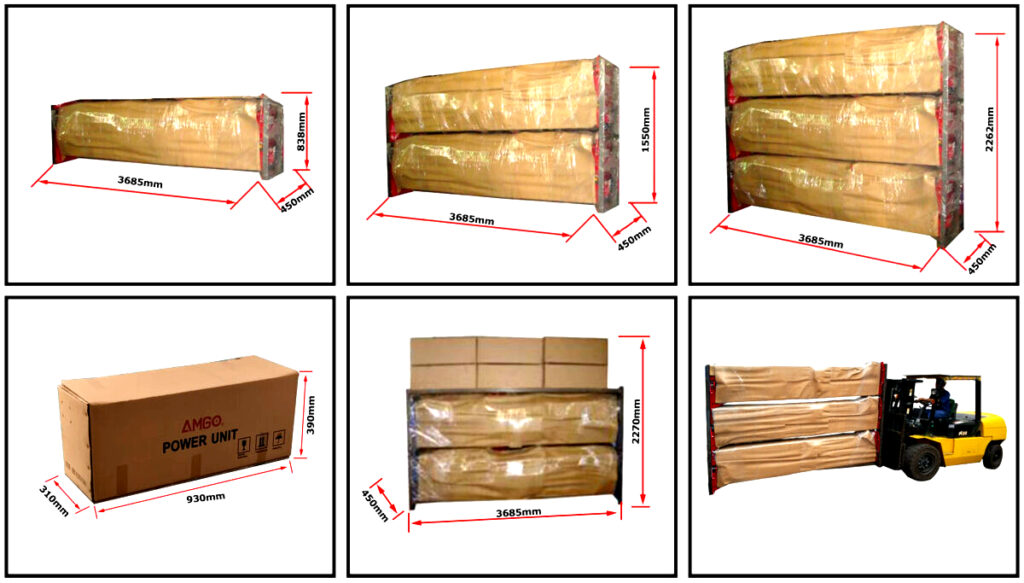

SHIPPING INFORMATION
