AMGO OH-12S
Our newest Heavy Duty two post lift: OH-12S is the ideal choice for shops and service centers with limited ceiling height. The OH-12S can be set to three different heights, only available at AMGO.

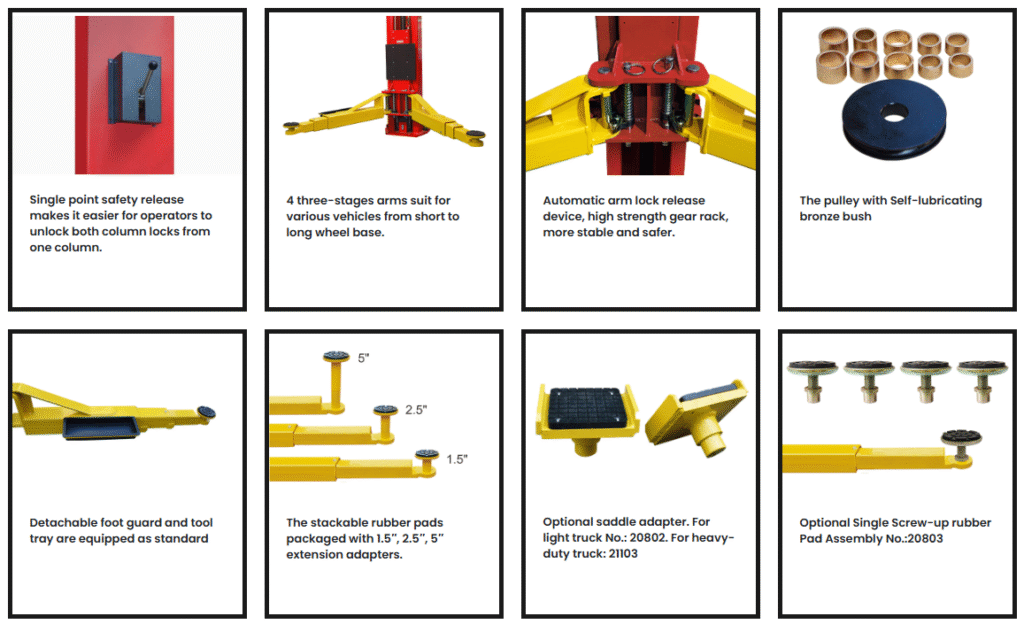

Features
- 12,000 lbs capacity
- Single-point safety lock release
- Exclusive: adjustable three height setting accommodates varying service ceiling heights
- 4 three-stage arm design allows to lift vehicles from short to long wheel base
- Exclusive: adjustable three height setting accommodates varying service ceiling heights
- Automatic arm restraints keep the arms locked in their proper positions
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Aviation standard durable cables used for synchronization
- Detachable foot guard and tool tray come standard
- 5-3-2 warranty: 5 years for steel construction, 3 years for hydraulic parts,and 2 years for electrical components.
Model
- OH-12S
Lifting Capacity
- 12,000 lbs (5,443 kg)
Lifting Time
- 69s
A: Lifting height
- 72 1/2″ ~ 81 1/2″ (1842~2071mm)
B: Overall Height
- 143 1/8″/155 1/8″/167 1/8″ (3635/3940/4245mm)
C: Overall Width
- 150 3/4″ (3829mm)
D: Minimum Pad Height
- 109 3/4″ (2787mm)
E: Width Between Columns
- 123 1/2″ (3137mm)
F: Minimum Pad Height
- 4 1/2″ (115mm)
Gross Weight
- 2,174 lbs (986 kg)
Motor
- 2.0HP/220V/60Hz,Single Phase
Model
OH-12S
Lifting Capacity
Lifting Time
A: Lifting height
B: Overall Height
C: Overall Width
D: Minimum Pad Height
E: Width Between Columns
F: Minimum Pad Height
Gross Weight
Motor
SPECIFICATIONS
DETAILED IMAGES

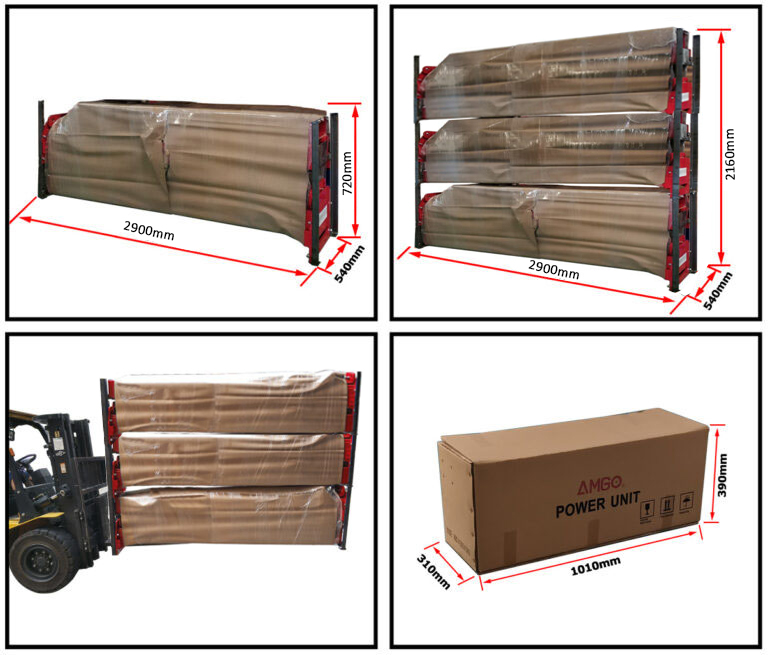

SHIPPING INFORMATION
