AMGO BP-9X
The BP-9X is a base-plate two-post lift designed for low ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling higher than 9.5 feet. The BP-9X features symmetric arms, and automatic arm restraints. The BP-9X also has a single point release switch to make it easier to unlock both column locks from one column.
Features
- 9,000 lbs capacity, commercial grade 2-post base plate lift is designed andbuilt for professional shops and home garages to fit low ceiling workshop environment without overhead obstructions.
- Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety.
- 4 three-stage arms are suitable for more vehicles.
- Automatic arm restraints keep the arms locked in their proper positions.
- Self-lubricating UHMW Polyethylene sliders and bronze bush.
- Aircraft quality cable is used for synchronization.
- Detachable foot guard and tool tray allow for a clutter free workspace.
Model
BP-9X
Lifting Capacity
9,000 lbs (4,082 kg)
Lifting Time
49s
A: Lifting height
76 3/8″ ~ 85 3/8″ (1940~2169mm)
B: Overall Height
111 7/8″ (2841mm)
C: Overall Width
136 1/4″ (3460mm)
D: Minimum Pad Height
100 3/4″ (2560mm)
E: Width Between Columns
1,916 lbs(869 kg)
F: Minimum Pad Height
3 1/2″ (90mm)
Gross Weight
1,590 lbs(721 kg)
Motor
2.0HP/220V/60Hz,Single Phase
SPECIFICATIONS
DETAILED IMAGES

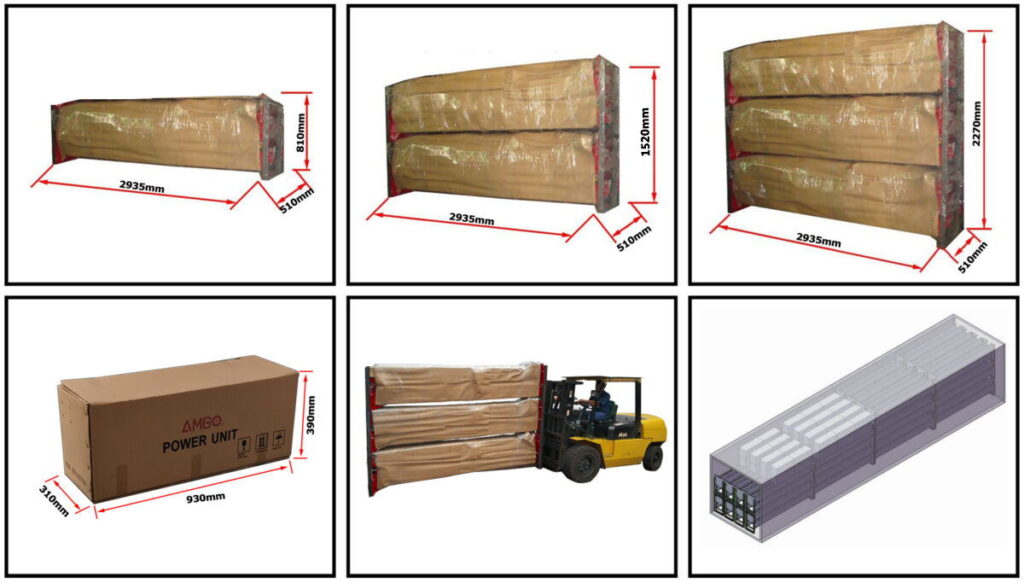

SHIPPING INFORMATION
