LR06 Low Rise Lift
The Portable low-rised lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business.
Provides good working height for tires, brakes and body repairs.
Features
- Automatic multiple safety locks.
- Automatical safety lock release.
- Portable unit is easy to move with the power unit stand.
- High speed: From 105-600 mm(4 1/8″-23 5/8”) in just 50 seconds.

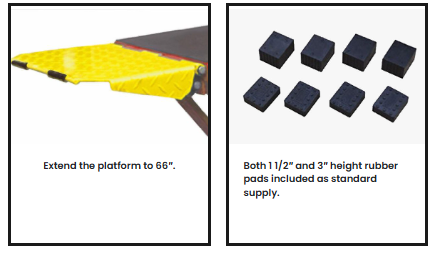

- Standard rubber pads included.
Model
- LR10
Lifting Capacity
- 10,000 lbs
Lifting Time
- 50s

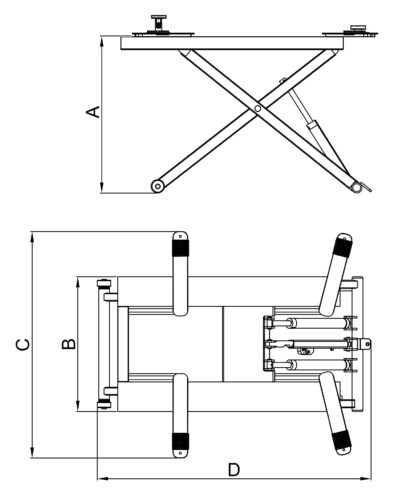

A1: Max. Lifting Height
- 23 5/8″ (600mm)
A2: Minimum Height
- 4 1/8″ (105mm)
B: Runway Length
- 53 1/4″ (1352mm)
C: Overall Width
- 70″ (1780mm)
D: Width Between Runways
- 34 1/8″ (868mm)
E: Overall Length
- 76 1/4″ (1938mm)
F: Overall Runway Length(Inc.Ramp)
- 66″ (1676mm)
Gross Weight
- 1,025lbs (465kg)
Motor
- 1.0HP, 110V/60Hz, Single Phase
Model
LR10
Lifting Capacity
Lifting Time
A1: Max Lifting Height
A2: Minimum Height
B: Runway Length
C: Overall Width
D: Width Between Runways
E: Overall Length
F: Overall Runway Length(Inc.Ramp)
Gross Weight
Motor
SPECIFICATIONS
DETAILED IMAGES

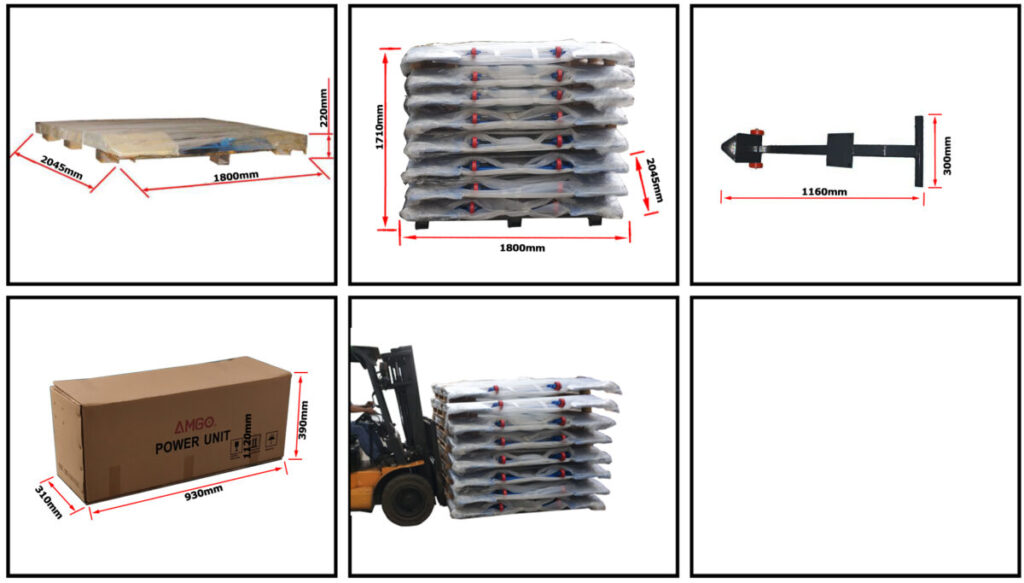

SHIPPING INFORMATION
