EM06 Portable Mid Rise Lift
This mid-rise, portable lift is an excellent choice for a low ceiling tire shop or service center that wants to get a passenger car or light SUV lifted as quickly as possible. The EM06 model raises vehicles to a full 40″. Simply drive the vehicle over the approach ramps and place the rubber support blocks under the vehicle’s lifting points.
Features
- Moveable Electric / Hydraulic Cabinet with hand-release power unit.
- Mechanical hand-release safety lock with automatic activation.
- Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.
- Can be made portable by using the OPTIONAL dolly, Kit No: EM002.
Model
- EM06
Lifting Capacity
- 6,000 lbs
Lifting Time
- 26s

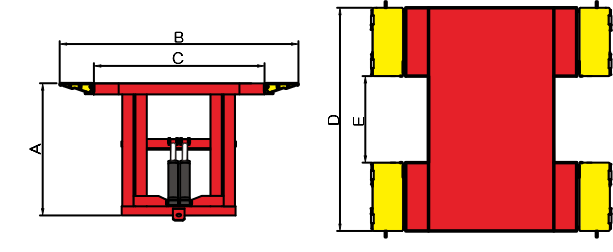

A: Lifting height
- 41 3/4″ (1060mm)
A: Minimum Height
- 4 1/8″ (105mm)
B: Platform Width
- 80″ (2030mm)
C: Swing Width
- 57 1/2″ (1460mm)
D: Overall Length
- 77 1/8″ (1960mm)
Gross Weight
- 1202lbs (545kg)
Motor
- 2.0HP,220V/60Hz,single phase
Model
EM06
Lifting Capacity
Lifting Time
A: Lifting height
A: Minimum Height
B: Platform Width
C: Swing Width
D: Overall Length
Gross Weight
Motor
SPECIFICATIONS

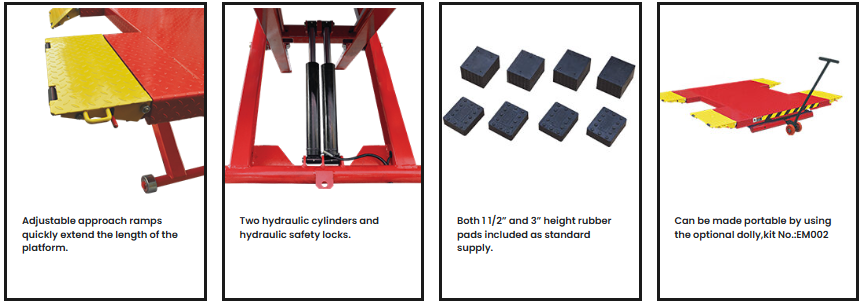

DETAILED IMAGES

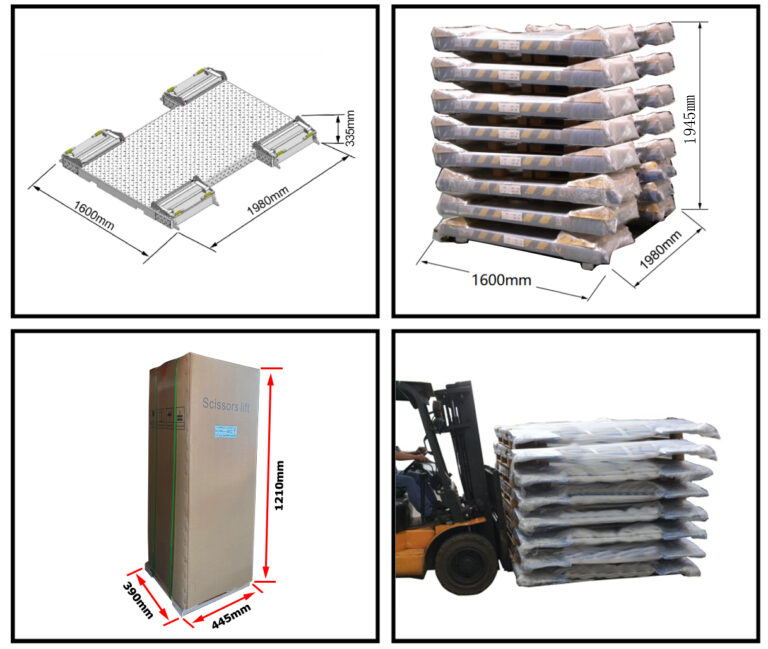

SHIPPING INFORMATION
