AMGO SML-7
The SML-7 is a portable single-column lift that is perfect for shops or homeowners who don’t want to take up space. The lift allows the operator to walk under the vehicle or move the lift around.
Features
- 7,000lbs capacity, portable single post lift.
- Max. lifting height: 77 3/4″ (1976 mm)
- Min height: 4 3/8″ (110 mm)
- Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze bushings.
- High quality cylinders and power units are manufactured to high quality standards.
- AMGO 5-3-2 Warranty.
Model
- SML-7
Lifting Capacity
- 7,000 lbs
Lifting Time
- 84S (110V) 32S (220V)

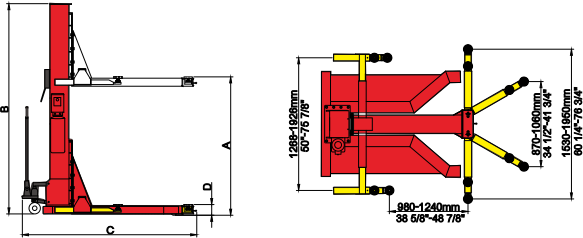

A: Lifting height
- 72″~77 3/4″ (1830mm ~ 1976mm)
B: Overall Height
- 108 7/8″ (2766mm)
C: Overall Width
- 90 3/8″ (2295mm)90 3/8″ (2295mm)
D: Minimum Pad Height
- 4 3/8 “（110 mm）
Gross Weight
- 1,916 lbs（869 kg）
Motor
- 1.0HP，110V/60Hz Single Phase 2.0HP，220V/60Hz Single Phase
Model
SML-7
Lifting Capacity
Lifting Time
A: Lifting height
B: Overall Height
C: Overall Width
D: Minimum Pad Height
Gross Weight
Motor
SPECIFICATIONS

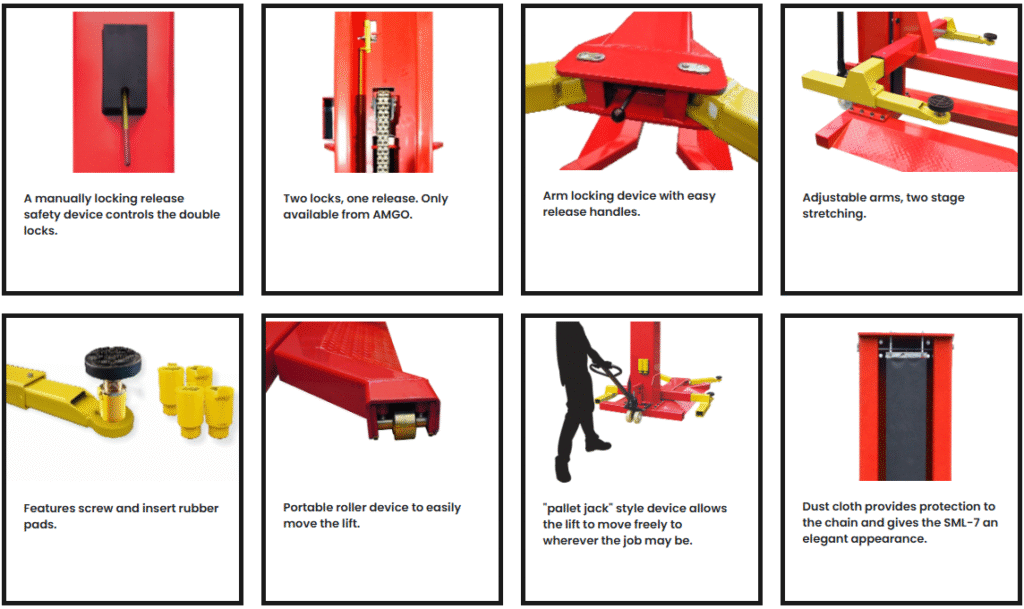

DETAILED IMAGES

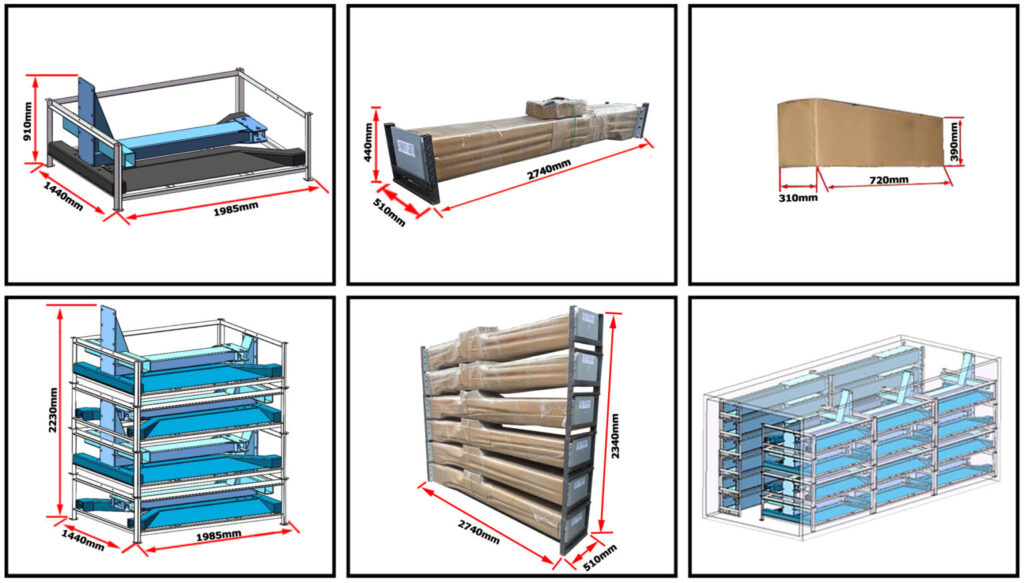

SHIPPING INFORMATION
