XL-7 Low Profile Scissors Lift
If you have a growing workload but limited space, then the AMGO XL-7 Scissors Lift is the perfect choice for you. AMGO’s Full Rise XL-7 Scissors Lift works great for raising vehicles high enough to walk underneath, and has a low profile design of only 4 ½ inches, maximizing limited bay space. The XL-7 is made stronger, more versatile, and easier to use and can lift 7,000lbs.
Features
- 24V control system for safety operation
- 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms
- Hydraulic cylinders built with hose burst valves for safety protection
- Both mechanical and hydraulic locking system. This makes it one of the safest small scissors lift in the world
- A safety stop device at the height of 11 7/8″(300mm), both control buttons are needed to lower the lift to ground, tone alarm for added safety.
- Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components
Model
- XL-7
Lifting Capacity
- 7,000 lbs
Lifting Time
- 42s

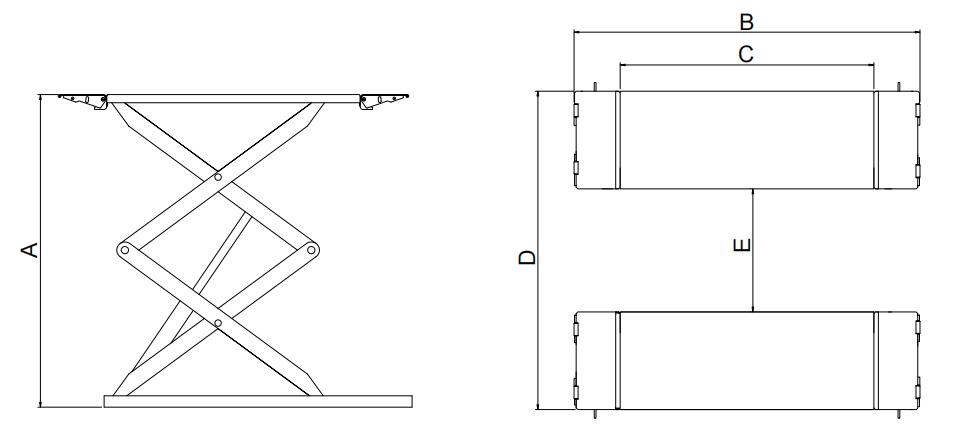

A1: Max. Lifting Height
- 78 3/4″ (2000mm)
A2: Minimum Height
- 4 1/2″ (115mm)
B: Overall Length(Inc Ramps)
- 80″ (2032mm)
C: Runway Length
- 57 5/8″ (1464mm)
D: Overall Width
- 76 3/4″ (1950mm)
E: Width Between Runways
- 29 1/2″ (750mm)
G: Runway Length
- 61 3/8″ – 77 1/8″ (1560mm-1960mm)
Gross Weight
- 1,949 lbs (884kg)
Motor
- 2.0HP, 220V/60Hz Single Phase
Model
XL-7
Lifting Capacity
Lifting Time
A1: Max. Lifting Height
A2: Minimum Height
B: Overall Length(Inc Ramps)
C: Runway Length
D: Overall Width
E: Width Between Runways
G: Runway Length
Gross Weight
Motor
SPECIFICATIONS

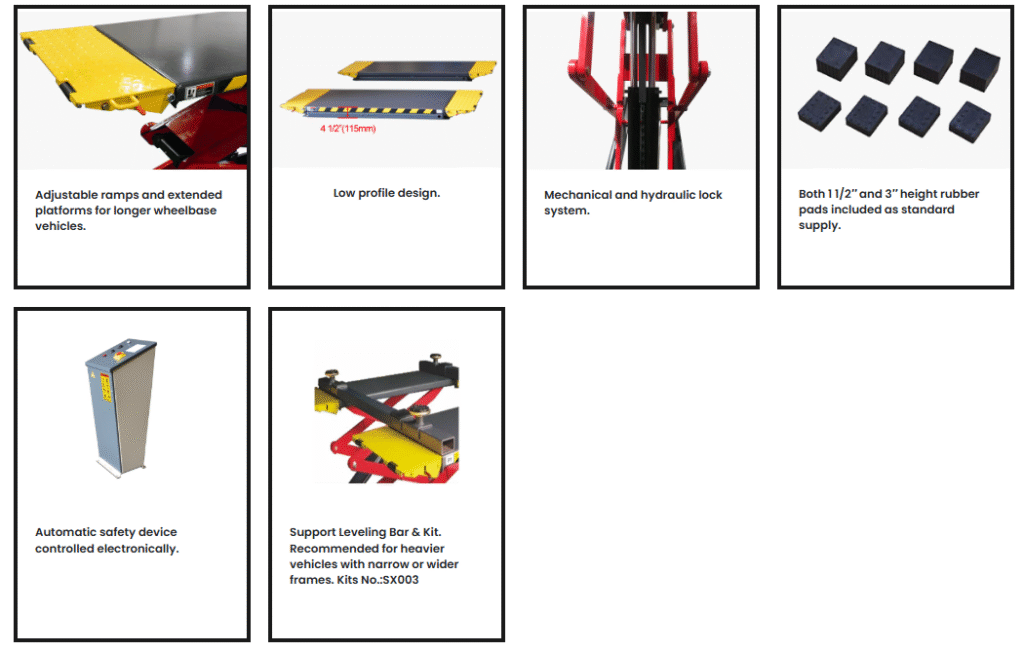

DETAILED IMAGES

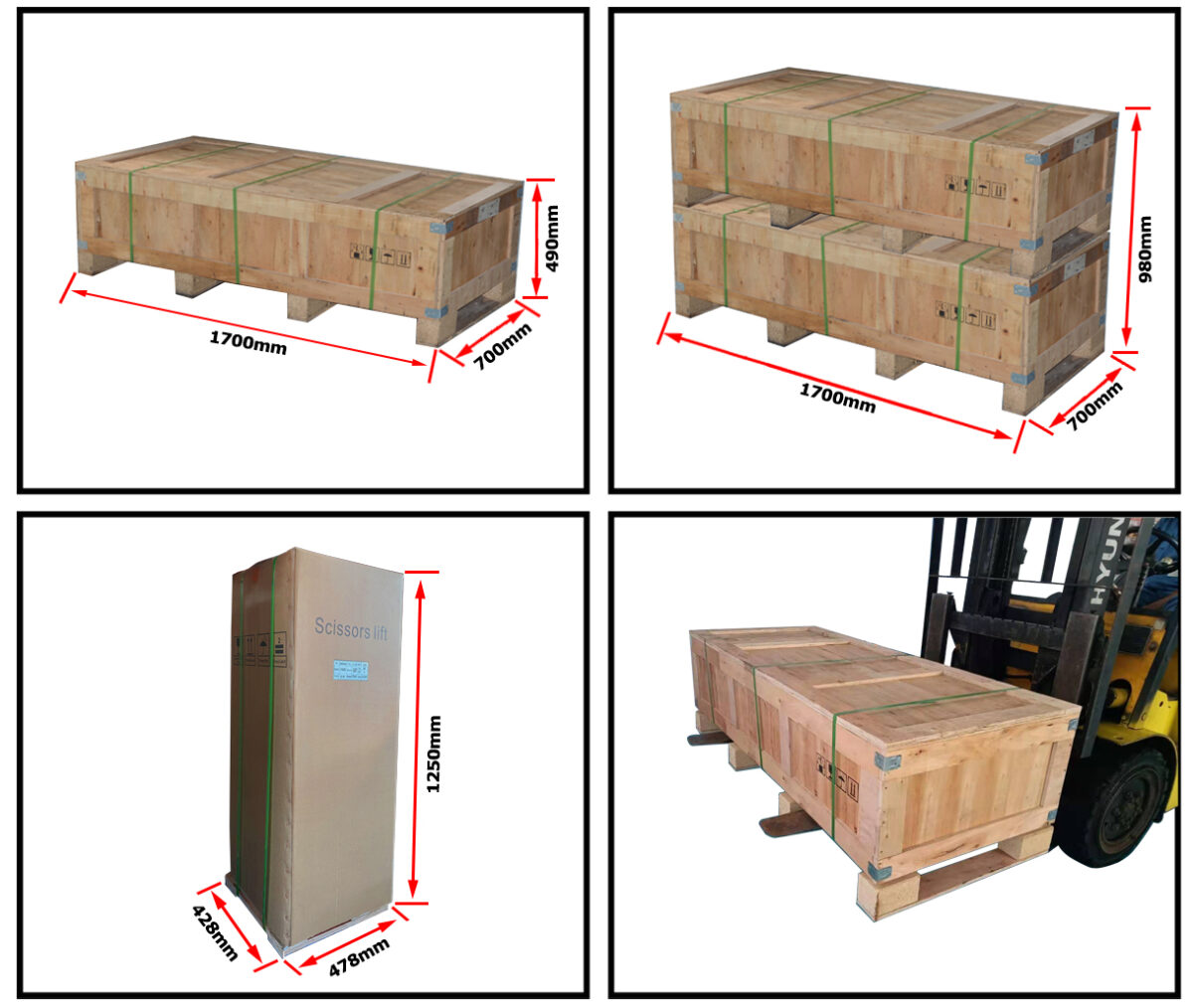

SHIPPING INFORMATION
