SPL-6 Single-post Parking Lift

The SPL-6 is our newest single post parking lift. This lift combines AMGO high quality with space saving design and easy operation. The SPL-6 is great fit for home garages and commercial shops.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • 6,000lbs lifting capacity
  • Manual safety lock release
  • Non slip lifting platform
  • H-shaped lifting platform with reinforced column
  • Low post height for low ceilings
  • Suitable for home garages and commercial applications
  • Reversible Drive in ramps (drive in from either side)
  • ETL certified power unit

Model SPL-6

Lifting Capacity - 6,000lbs

Lifting Time

  • 84s(110V) 32s(220V)

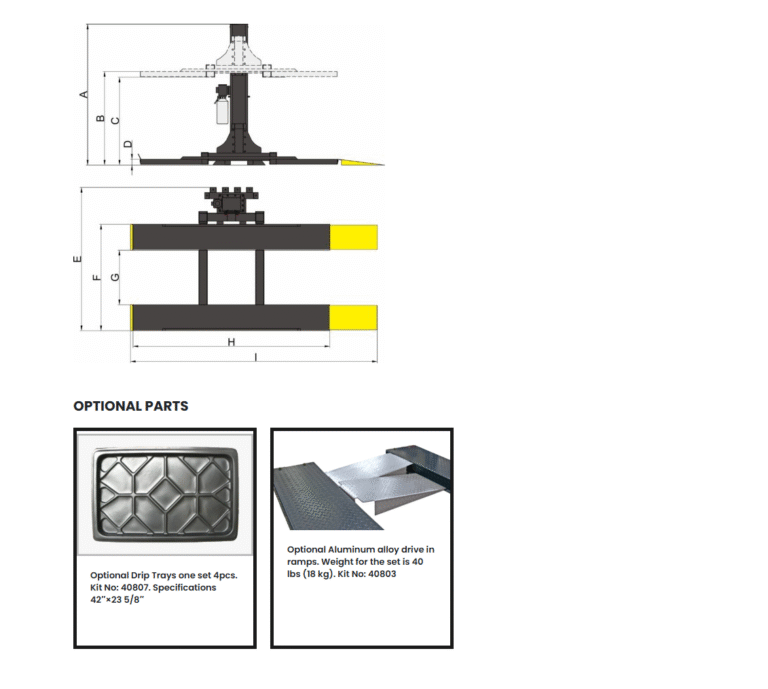

A： Overall Height

  • 108 7/8″ (2766mm)

B： Max. Lifting Height

  • 74″ (1880mm)

C： Max. Underneath Height

  • 69 1/4″ (1760mm)

D: Minimum Height

  • 6 3/8″ (160mm)

E： Overall Width

  • 111″ (2820mm)

F： Outside Edge of Runways

  • 82 3/8″ (2093mm)

G： Width Between Runways

  • 42 3/8″ (1077mm)

H： Platform Length

  • 152″ (3860mm)

I： Overall Length

  • 192 1/8″ (4880mm)

Gross Weight

  • 2,725lbs (1235kg)

Motor

  • 2.0HP, 220V/60Hz Single Phase

Model SPL-6
