AMGO 409-HP

A parking lift for full range vehicle including car, SUV and light truck.Similar to model 408-HP, but longer, wider and heavier.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • 9,000lbs lifting capacity
  • High lifting rise: 82”
  • AMGO exclusive hidden safety locks and manual single-point lock release
  • Multi safety locks in each column
  • Adjustable lock ladder
  • Automatic safety locks combined with redundant anti-fall devices
  • Double-S shaped columns for increased strength
  • Non-slip platform
  • Flexible Design: power side column can be installed at any corner
  • Designed portable,it can be moved easily by using the optional caster kits
  • 220V or 110V single phase power unit
  • AMGO 5-3-2 Warranty

Model

  • 409-HP

Lifting Capacity

  • 9,000lbs

Lifting Time

  • 122s(110V) 46s(220V)

A: Overall Length (Inc Ramps)

  • 200 3/4″ (5100mm)

B: Overall Length (No Inc. ramps)

  • 200 3/4″ (5100mm)

C: Overall Width

  • 126 1/4″ (3206mm)

D: Width Between Posts

  • 112 5/8″ (2860mm)

E: Max. Lifting Height

  • 87 3/4″ (2227mm)

F: Overall Height

  • 96 5/8″ (2455mm)

G: Minimum Height

  • 6 1/8″(155mm)

H: Max. Underneath Height

  • 83″ (2107mm)

I: Drive-Thru Clearance

  • 98 1/4″ (2496mm)

J: Width Between Runways

  • 42 3/8″ (1077mm)

K: Outside Edge of Runways

  • 82 3/8″ (2093mm)

K: Outside Edge of Runways

  • 82 3/8″ (2093mm)

Gross Weight

  • 1,993lbs (904kg)

Motor

  • 1.0HP 110V/60Hz; 2.0HP 220V/60Hz

Model

409-HP

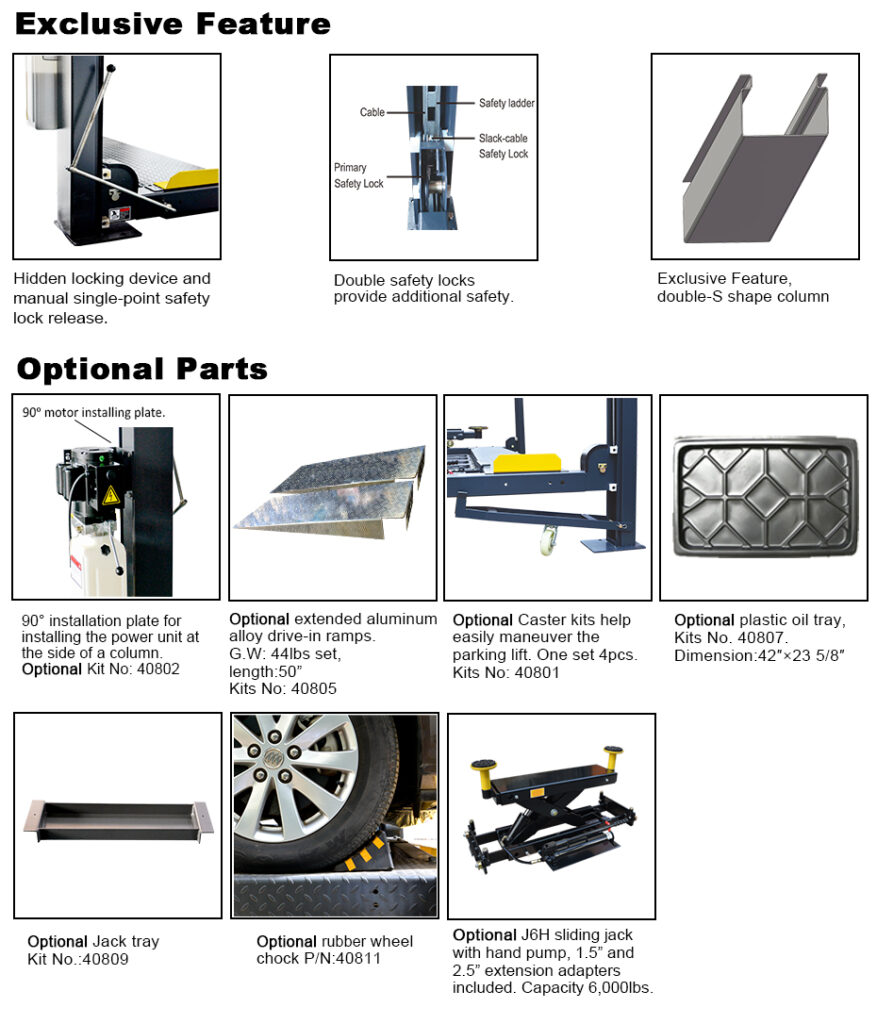

DETAILED IMAGES
