AMGO 409-DPX

Longer and higher model of 409-DP. More space created to park higher vehicles underneath, like SUV, light truck, etc.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • Lifting capacity: 9,000lbs, max. car weight:6,000lbs.
  • Max lifting height:87 11/16”
  • Low profile design, minimum platform height only 6 3/32″
  • Both primary & slack-cable safety devices as standard.

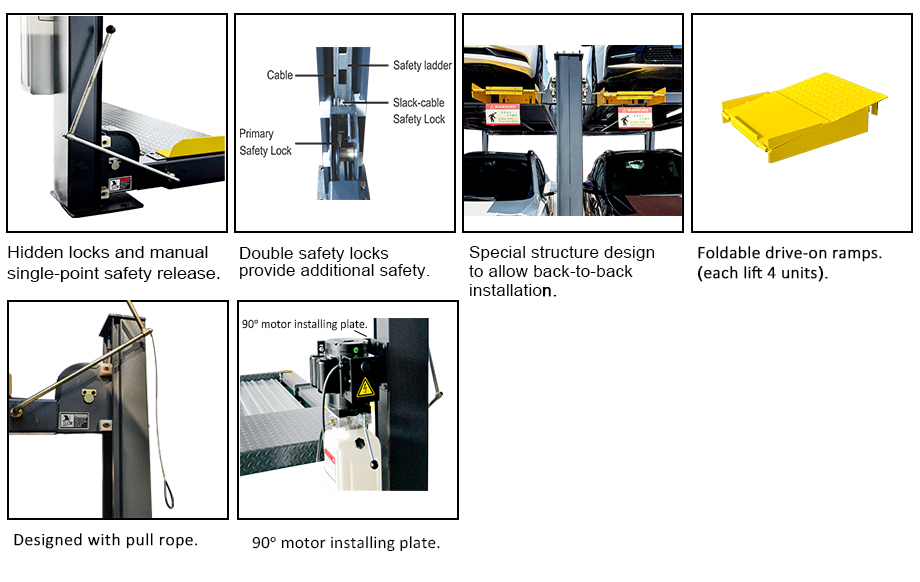

  • Exclusive: hidden safety locks and manual single-point safety release.
  • Exclusive: Foldable drive-on ramps of 4 units.
  • Exclusive: Ingenious designs to minimize the package size, reduces the transportation charge and storage cost.
  • Exclusive: Double S Shaped columns for increased strength.
  • Non-slip diamond platforms.
  • Adjustable multiple safety ladders.
  • Pull rope comes as standard.
  • 110V power unit is worked with the lift (lifting time: 120s), please specify when ordering.

Model

  • 409-DPX

Lifting Capacity

  • 9,000lbs

Lifting Time

  • 57s

A: Overall Length (Inc Ramps)

  • 234 27/32″

B: Overall Length (No Inc. ramps)

  • 201 3/8″

C: Overall Width

  • 201 9/16″

D: Width Between Posts

  • 192 1/16″

E: Max. Lifting Height

  • 177 23/32″

F: Overall Height

  • 96 21/32″

G: Minimum Height

  • 6 3/32″

H: Max. Underneath Height

  • 87 11/16″

H: Max. Lock Height to top of Runway

  • 84 15/16″

H: Max. Underneath Height

  • 83 3/4″

I: Max. Height Underneath Runway

  • 83 3/4″

H: Max. Lock Height underneath Runway

  • 81″

J: Width Between Runways

  • 37″

K: Overwall Width of Single Parking Unit

  • 74 13/32″

L: Width Between Two Parking Units

  • 21 21/32″

Gross Weight

  • 3,142 lbs

Motor

  • 2.0HP 220V Single Phase

Model

409-DPX
