AMGO 409-DP

Our newest space saving 9,000lbs lift. 1 lift can accommodate 2 parking positions to park 4 vehicles. It’s low profile, with hidden safety locks and single-point lock release. Foldable drive-on ramps come standard.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

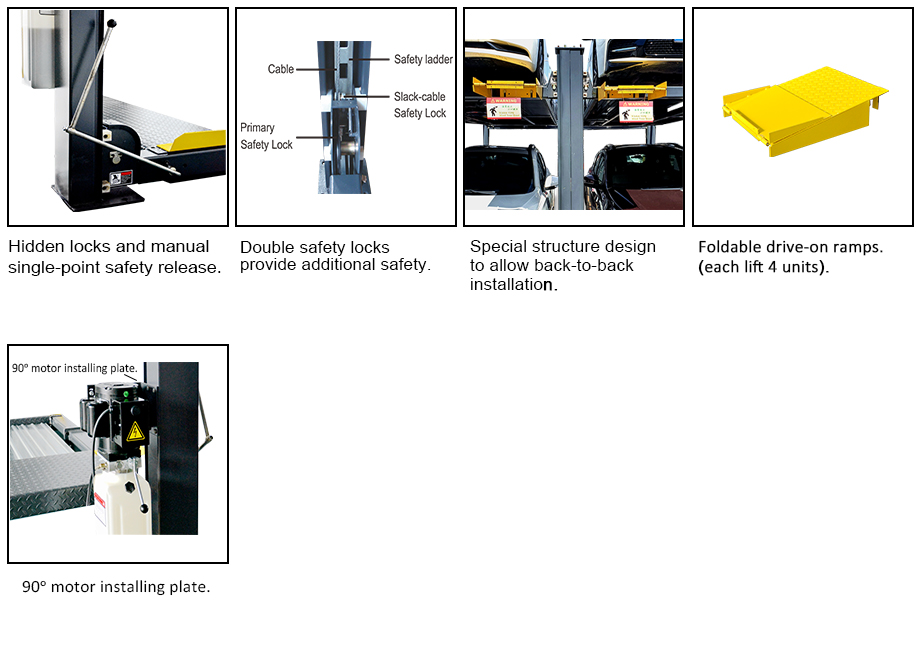

Features

  • Lifting capacity: 9,000lbs, max. car weight:6,000lbs.
  • Max lifting height: 73 11/16”
  • Low profile design, minimum platform height only 6 3/32″
  • Both primary & slack-cable safety devices as standard.
  • Exclusive: hidden safety locks and manual single-point safety release.
  • Exclusive: Foldable drive-on ramps of 4 units.
  • Exclusive: Ingenious designs to minimize the package size, reduces the transportation charge and storage cost.
  • Exclusive: Double S Shaped columns for increased strength.
  • Non-slip diamond platforms.
  • Adjustable multiple safety ladders.
  • 110V power unit is worked with the lift (lifting time: 100s), please specify when ordering.

Model

  • 409-DP

Lifting Capacity

  • 9,000lbs

Lifting Time

  • 47s

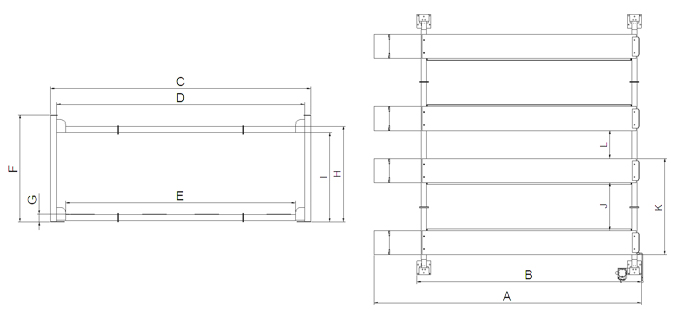

A: Overall Length (Inc Ramps)

  • 207 9/32″

B: Overall Length (No Inc. ramps)

  • 173 13/16″

C: Overall Width

  • 201 9/16″

D: Width Between Posts

  • 192 1/16″

E: Max. Lifting Height

  • 177 23/32″

F: Overall Height

  • 82 7/8″

G: Minimum Height

  • 6 3/32″

H: Max. Lifting Height

  • 70 15/16″

H: Max. Lock Height to top of Runway

  • 70 15/16″

H: Max. Underneath Height

  • 83″ (2107mm)

I: Max. Height Underneath Runway

  • 69 3/4″

H: Max. Lock Height underneath Runway

  • 67″

J: Width Between Runways

  • 37″

K: Overwall Width of Single Parking Unit

  • 74 13/32″

L: Width Between Two Parking Units

  • 21 21/32″

Gross Weight

  • 2,810 lbs

Motor

  • 2.0HP 220V Single Phase

Model

409-DP
