AMGO 407-P
The 407-P is a true space-saving powerhouse. The perfect parking lift for shops or home garage with limited floor space. The 407-P requires no special foundation or complicated installation.
Features
- 7,000lbs lifting capacity
- AMGO exclusive hidden safety locks and manual single-point lock release
- Multi safety locks in each column
- Adjustable lock ladder
- Automatic safety locks combined with redundant anti-fall devices
- Double-S shaped columns for increased strength
- Non-slip platform
- Flexible Design: power side column can be installed at any corner
- AMGO 5-3-2 Warranty
Model
- 407-P
Lifting Capacity
- 407-P
Lifting Time
- 68s(110V) 26s(220V)

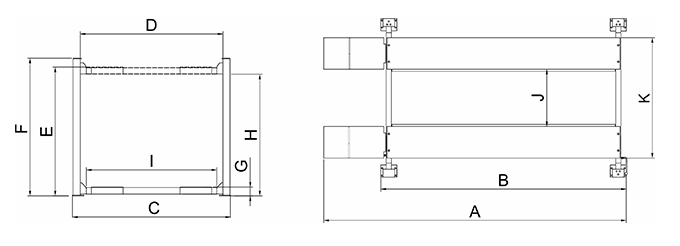

A: Overall Length (Inc Ramps)
- 185 1/2″ (4712mm)
B: Overall Length (No Inc. ramps)
- 152″ (3862mm)
C: Overall Width
- 94 7/8″ (2409mm)
D: Width Between Posts
- 85 3/8″ (2167mm)
E: Max. Lifting Height
- 73 3/4″ (1872mm)
F: Overall Height
- 82 7/8″ (2105mm)
G: Minimum Height
- 5 3/8″(135mm)
H: Max. Underneath Height
- 69 3/4″ (1772mm)
I: Drive-Thru Clearance
- 77″ (1956mm)
J: Width Between Runways
- 37″ (940mm)
K: Outside Edge of Runways
- 74 3/8″ (1890mm)
K: Outside Edge of Runways
- 74 3/8″ (1890mm)
Gross Weight
- 1,543lbs(700kg)
Motor
- 1.0HP 110V/60Hz; 2.0HP 220V/60Hz
Model
407-P
Lifting Capacity
Lifting Time
A: Overall Length (Inc Ramps)
B: Overall Length (No Inc. ramps)
C: Overall Width
D: Width Between Posts
E: Max. Lifting Height
F: Overall Height
G: Minimum Height
H: Max. Underneath Height
I: Drive-Thru Clearance
J: Width Between Runways
K: Outside Edge of Runways
Gross Weight
Motor

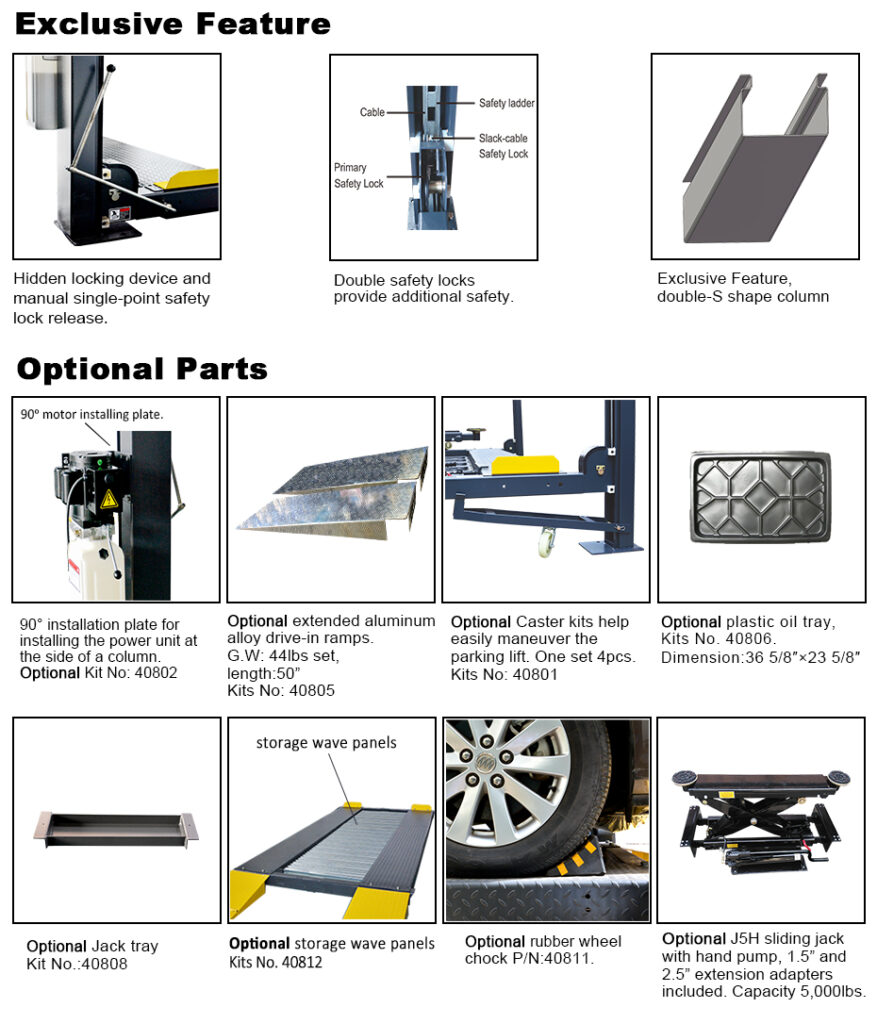

DETAILED IMAGES
SHIPPING INFORMATION
