AMGO PRO-18A

The PRO-18A, this is the lift you need if you want to have great features with a high capacity for alignment work performed on your vehicles.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

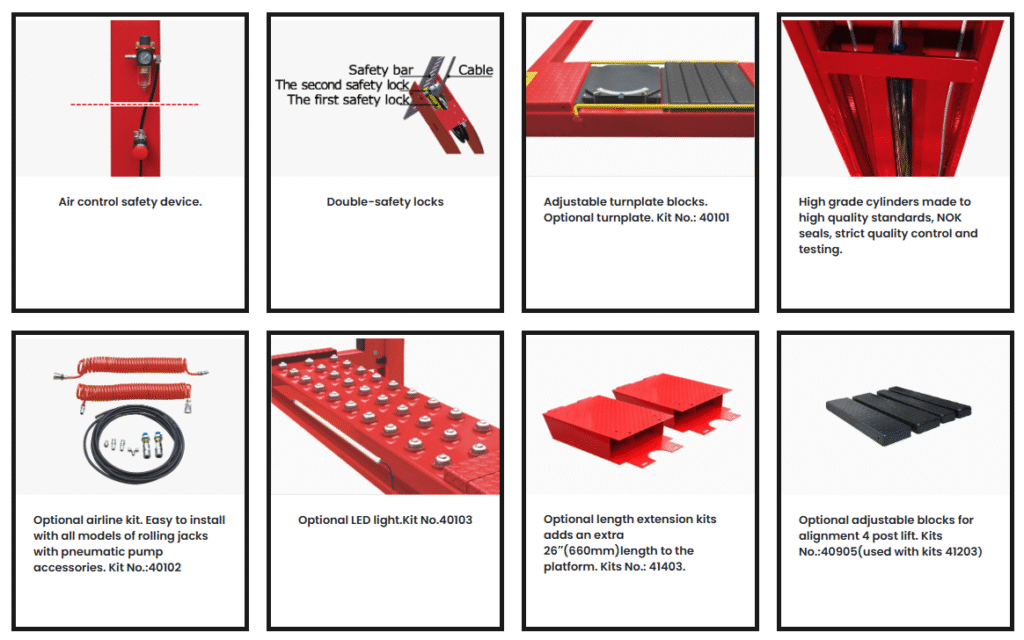

Features

  • 18,000 lbs capacity.
  • Air-Lock Released for Safety and Reliability of Convenient Operation
  • Mechanical self lock and cable breaking protection.
  • Optional turnplate pockets to fit different wheel bases
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
  • Optional Rolling Jack:
    - RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41801 and plus 41803
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components

Model

  • PRO-18A

Style

  • Alignment

Lifting Capacity

  • 18,000 lbs (8,000kg)

Lifting Time

  • 92s

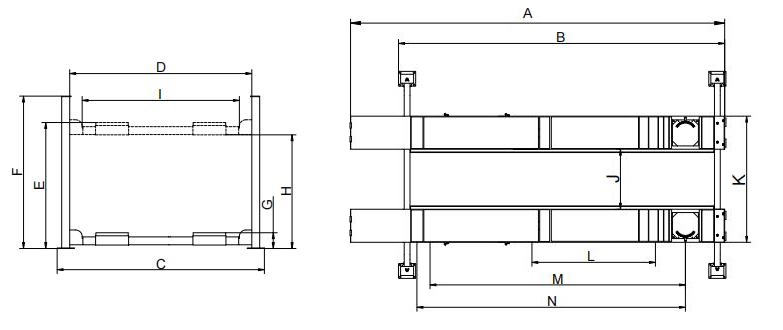

A: Overall Length (Inc.Ramps)

  • 292 3/4″ (7436mm)

B: Overall Length (No.Ramps)

  • 252 1/4″ (6408mm)

C: Overall Width

  • 137 1/8″ (3482mm)

D: Width Between Columns

  • 122 3/8″ (3108mm)

E: Max. Lifting Height

  • 75 3/8″ (1915mm)

F: Overall Height

  • 86″ (2185mm)

G: Minimum Height

  • 9 7/8″ (250mm)

H: Max. Underneath Height

  • 66 5/8″ (1692mm)

I: Drive-Thru Clearance

  • 108 1/4″ (2750mm)

J: Width Between Runways

  • 51 1/4″ (1302mm)

K: Outside Edge of Runways

  • 95 1/4″ (2418mm)

L: Min. Four Wheel Align

  • 99 5/8″ (2530mm)

M: Max. Four Wheel Align

  • 182 5/8″ (4640mm)

N: Max. Two Wheel Align

  • 209 1/8″ (5310mm)

Gross Weight

  • 4,429 lbs (2,009kg)

Motor

  • 2.0HP, 220V/60Hz Single Phase

Model

PRO-18A
