AMGO PRO-18

The PRO-18 is the perfect choice of lift, with the combination of great performance and safety, for your heavy-duty commercial services. The newly engineered PRO-18 four post lift is made stronger, more versatile, and easier to use than most other lifts while able to lift up to 18,000 lbs
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • 18,000 lbs capacity.
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self lock and cable breaking protection.
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
  • Optional Rolling Jacks:
    - RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41801
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Model

  • PRO-18

Style

  • Non-Alignment

Lifting Capacity

  • 18,000 lbs (8,000 kg)

Lifting Time

  • 92s

A: Overall Length (Inc.Ramps)

  • 293 1/4″ (7449mm)

B: Overall Length (No.Ramps)

  • 252 1/4″ (6408mm)

C: Overall Width

  • 137 1/8″ (3482mm)

D: Width Between Columns

  • 122 3/8″ (3108mm)

E: Max. Lifting Height

  • 73 1/2″ (1865mm)

F: Overall Height

  • 86″ (2185mm)

G: Minimum Height

  • 7 7/8″ (200mm)

H: Max. Underneath Height

  • 66 5/8″ (1692mm)

I: Drive-Thru Clearance

  • 108 1/4″ (2750mm)

J: Width Between Runways

  • 51 1/4″ (1302mm)

K: Outside Edge of Runways

  • 95 1/4″ (2418mm)

Gross Weight

  • 3,483lbs (1,580kg)

Motor

  • 2.0HP, 220V/60Hz Single Phase

Model

PRO-18

SPECIFICATIONS

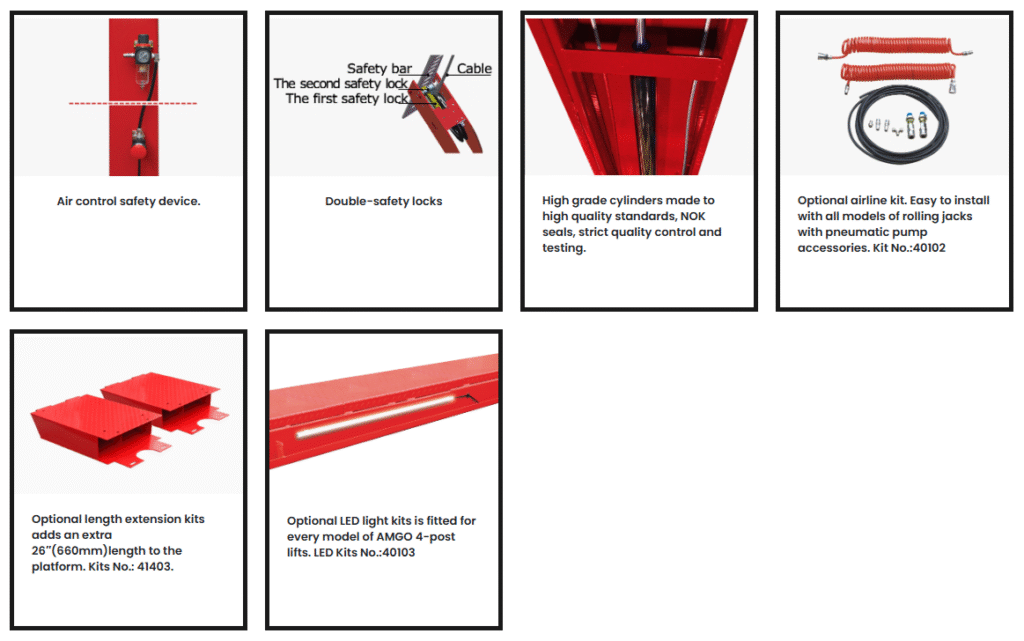

DETAILED IMAGES
