AMGO PRO-14AE

AMGO powerful 4-post lift provides a 14,000 lbs lifting capacity and features extra long runways to accommodate a wide variety of vehicle types and wheel bases.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • 14,000 lbs capacity.
  • Air-Lock Released for Safety and Reliability of Convenient Operation
  • Mechanical self lock and cable breaking protection.
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).
  • Optional Rolling Jacks:
    - RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
    - RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41403
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components

Model

  • PRO-14AE

Style

  • Alignment

Lifting Capacity

  • 14,000 lbs (6,500kg)

Lifting Time

  • 76s

A: Overall Length (Inc.Ramps)

  • 285 1/2″ (7252mm)

B: Overall Length (No.Ramps)

  • 245″ (6224mm)

C: Overall Width

  • 130 7/8″ (3324mm)

D: Width Between Columns

  • 116″ (2946mm)

E: Max. Lifting Height

  • 75 3/8″ (1915mm)

F: Overall Height

  • 86″ (2185mm)

G: Minimum Height

  • 9 7/8″ (250mm)

H: Max. Underneath Height

  • 66 3/4″ (1695mm)

I: Drive-Thru Clearance

  • 102 1/8″ (2592mm)

J: Width Between Runways

  • 47″ (1194mm), Max. 54 1/2″ (1385mm)

K: Outside Edge of Runways

  • 87″ (2210mm), Max. 94 1/2″ (2401mm)

L: Min. Four Wheel Align

  • 92 1/2″ (2350mm)

M: Max. Four Wheel Align

  • 169 5/8″ (4310mm)

N: Max. Two Wheel Align

  • 203 1/2″ (5170mm)

Gross Weight

  • 3,576 lbs (1,622kg)

Motor

  • 2.0HP, 220V/60Hz Single Phase

Model

PRO-14AE

SPECIFICATIONS

DETAILED IMAGES

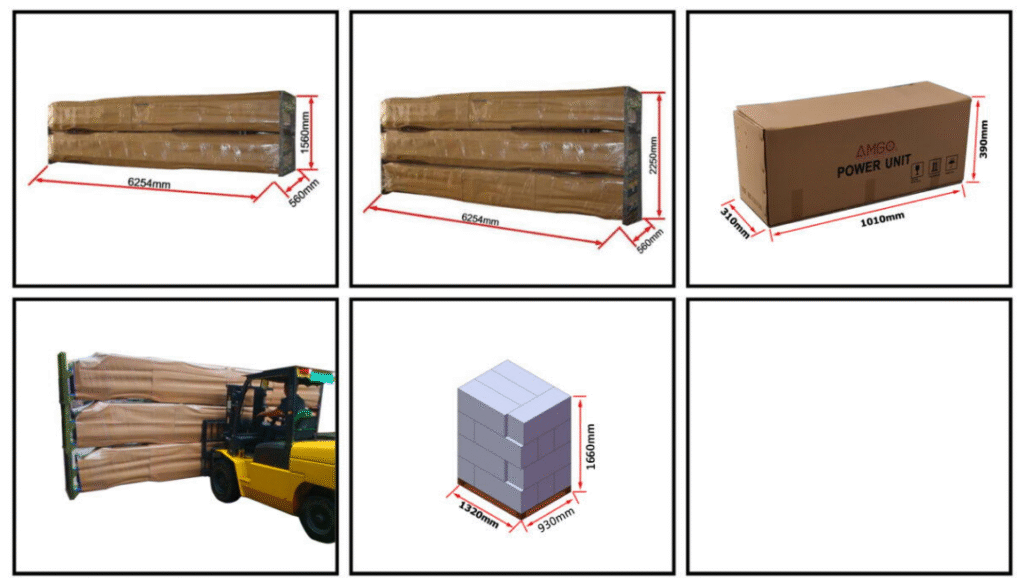

SHIPPING INFORMATION
