AMGO PRO-14A

The PRO-14A provides the same lifting capacity as the PRO-14 but with turn plates to do alignment work. It is built to commercial grade standards which will provide many years of service.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

Features

  • 14,000 lbs capacity.
  • Air-Lock Released for Safety and Reliability of Convenient Operation
  • Mechanical self lock and cable breaking protection.
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).
  • Optional Rolling Jacks:
    - RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
    - RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41403
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components

Model

  • PRO-14A

Style

  • Alignment

Lifting Capacity

  • 14,000 lbs (6,500kg)

Lifting Time

  • 76s

A: Overall Length (Inc.Ramps)

  • 257″ (6528mm)

B: Overall Length (No.Ramps)

  • 216 1/2″ (5500mm)

C: Overall Width

  • 130 7/8″ (3324mm)

D: Width Between Columns

  • 116″ (2946mm)

E: Max. Lifting Height

  • 75 3/8″ (1915mm)

F: Overall Height

  • 86″ (2185mm)

G: Minimum Height

  • 9 7/8″ (250mm)

H: Max. Underneath Height

  • 66 3/4″ (1695mm)

I: Drive-Thru Clearance

  • 102 1/8″ (2592mm)

J: Width Between Runways

  • 47″ (1194mm), Max. 54 1/2″ (1385mm)

K: Outside Edge of Runways

  • 87″ (2210mm), Max. 94 1/2″ (2401mm)

L: Min. Four Wheel Align

  • 92 1/2″ (2350mm)

M: Max. Four Wheel Align

  • 169 5/8″ (4310mm)

N: Max. Two Wheel Align

  • 175 1/4″ (4450mm)

Gross Weight

  • 3,400 lbs (1,542kg)

Motor

  • 2.0HP, 220V/60Hz Single Phase

Model

PRO-14A

SPECIFICATIONS

DETAILED IMAGES

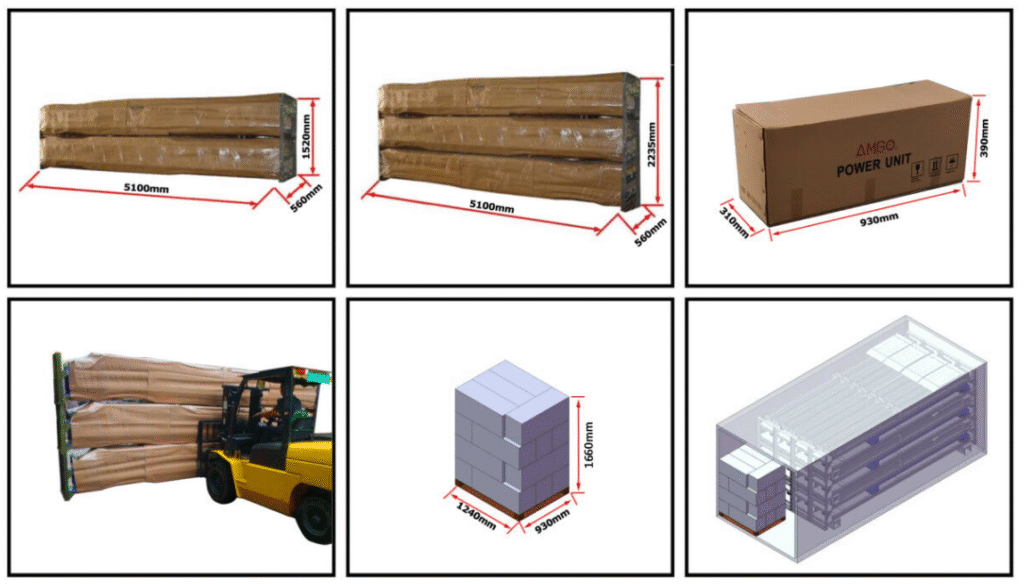

SHIPPING INFORMATION
