AMGO PRO-12A

The PRO-12A, with a 12,000 lb lifting capacity, provides wheel service maintenance with integrated rear slip plates and it has adjustable turn plate pockets to fit various wheelbases.
CONTACT US
Click to download Product Brochure
Click to download Product Manual

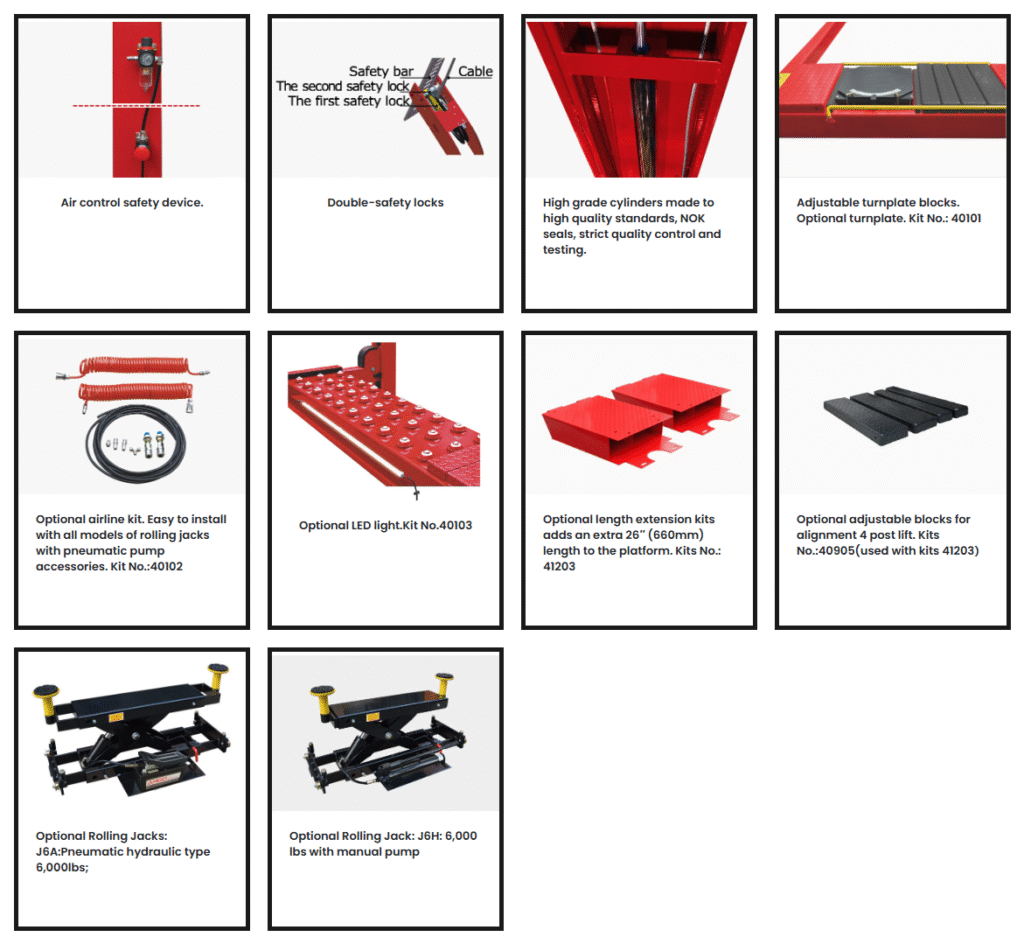

Features

  • 12,000 lbs lifting capacity.
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self lock and cable breaking protection.
  • 1/2″ Aircraft quality cable.
  • Optional adjustable turnplate pockets to fit different wheel bases.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4”(1100mm) and maximum distance is 51 1/8”(1300mm).
  • Optional Rolling Jacks:
    - J6H 6,000lbs manual control
    - J6A 6,000lbs pneumatic pump
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41203
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components

Model

  • PRO-12A

Style

  • Alignment

Lifting Capacity

  • 12,000 lbs (5,500 kg)

Lifting Time

  • 63s

A: Overall Length (Inc.Ramps)

  • 236 5/8″ (6012mm)

B: Overall Length (No.Ramps)

  • 200 3/4″ (5100mm)

C: Overall Width

  • 126 1/4″ (3208mm)

D: Width Between Columns

  • 126 1/4″ (3208mm)

E: Max. Lifting Height

  • 75 3/8″ (1915mm)

F: Overall Height

  • 86″ (2185mm)

G: Minimum Height

  • 8 5/8″ (220mm)

H: Max. Underneath Height

  • 67 7/8″ (1724mm)

I: Drive-Thru Clearance

  • 98 3/8″ (2498mm)

J: Width Between Runways

  • 43 1/4″ (1100mm), Max. 51 1/8″ (1300mm)

K: Outside Edge of Runways

  • 83 1/4″ (2116mm), Max. 91 1/8″ (2316mm)

L: Min. Four Wheel Align

  • 78 3/4″ (2000mm)

M: Max. Four Wheel Align

  • 155 7/8″ (3960mm)

N: Max. Two Wheel Align

  • 161 3/8″ (4100mm)

Gross Weight

  • 2,901 lbs (1,316kg)

Motor

  • 2.0HP, 220V/60Hz Single Phase

Model

PRO-12A
