AMGO OH-12

AMGO Heavy duty two post lifts are the best choice for heavy duty vehicles or trucks in commercial shops… stronger and higher!

Contact Us Now

Click to download Product Brochure

Click to download Product Manual

Description

Features

12,000 lbs capacity
Single-point safety release
4 three-stages arms allowing to lift the trucks from short to long wheel base
Automatic arm restraints keep the arms locked in their proper positions
Self-lubricating UHMW Polyethylene sliders and bronze bushings
Adjustable two height setting accommodate varying service ceiling heights
Aircraft quality cable is used for synchronization
Detachable foot guard and tool tray to allow for a clutter free work space
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Model	OH-12
Lifting Capacity	12,000 lbs (5,443 kg)
Lifting Time	69s
A: Lifting height	72 1/2″ ~ 81 1/2″ (1842~2071mm)
B: Overall Height	174″/186″/198″ (4420/4725/5030mm)
C: Overall Width	150 3/4″ (3829mm)
D: Drive-Thru Clearance	109 3/4″ (2787mm)
E: Width Between Columns	123 1/2″ (3137mm)
F: Minimum Pad Height	4 1/2″ (115mm)
Gross Weight	2,317 lbs (1051 kg)
Motor	2.0HP/220V/60Hz,Single Phase

Detailed Images

category

Single point safety release makes it easier for operators to unlock both column locks from one column.

category

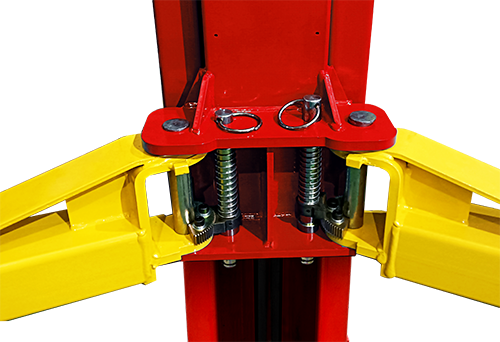

Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

category

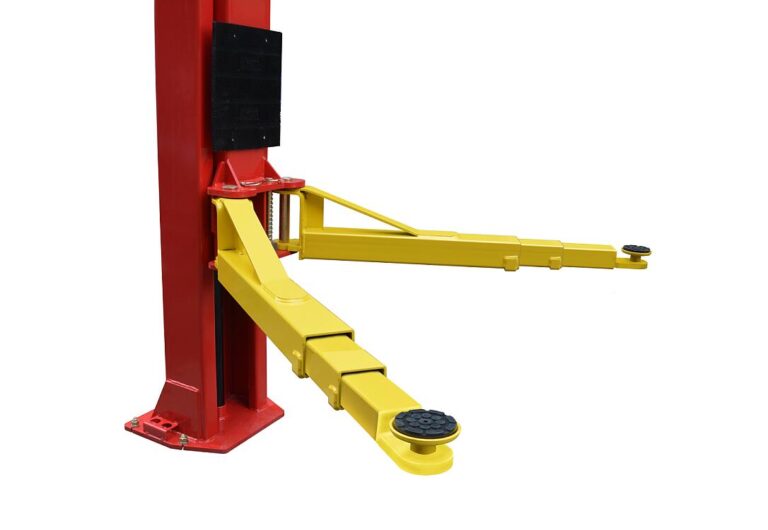

4 three-stages arms allowing to lift the trucks from short to long wheel base.

category

The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

category

Optional saddle adapter. For light truck No.: 20802. For heavy-duty truck: 21103

category

The Optional Base Plate Kits No.21501,lncluding extension frames,and 14 pcs of our standard Anchor Bolts.

category

Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
