AMGO OHX-10H

The OHX-10H is the extremely high lifting model with lifting height up to 78 3/4″ ~ 87 3/4″. Height & Width adjustment. The lift is designed with super asymmetric arms and share many same features as model OHX-10.

Click to download Product Brochure

Click to download Product Manual

Description

Features

Dual hydraulic cylinders, designed and made on high standard, high quality seals.
Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
3/8″ aircraft quality cable is used for synchronization.
Self lubricating UHMW Polyethylene sliders and bronze bushings.
Single-point safety release, and dual safety design.
Clear floor design, provides unobstructed floor use.
Overhead safety stop device.
Automatic arm restraints keep the arms locked in their proper positions.
Adjustable heights for OHX-10H.
Stackable adapters 1.5″, 2.5″, 5″ as standard.
The height and width are adjustable.
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.

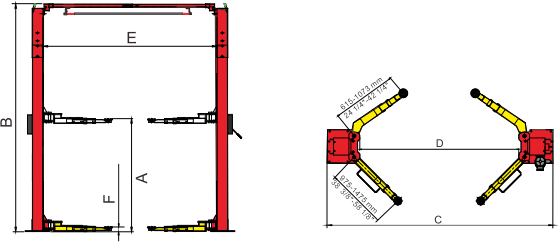

Model	OHX-10H
Lifting Capacity	10,000 lbs (4,536 kg)
Lifting Time	63s
A: Lifting height	78 3/4″ ~ 87 3/4″ (2000~2229mm)
B: Overall Height	157″ ~ 168″ (3988~4267mm)
C: Overall Width	135″ ~ 140 7/8″ (3428/3578mm)
D: Drive-Thru Clearance	99 1/2″ ~ 105 1/2″ (2528 ~ 2678mm)
E: Width Between Columns	112 1/4″ ~ 118 1/8″ (2850 ~ 3000mm)
F: Minimum Pad Height	3 1/2″ （90mm）
Gross Weight	1,744 lbs （791 kg）
Motor	2.0HP/220V/60Hz,Single Phase

Detailed Images

Single point safety release makes it easier for operators to unlock both column locks from one column.

Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

Super asymmetric arms allow you to load different vehicles in an asymmetric or symmetric configuration. Self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.

Dual hydraulic direct-driven cylinders

The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802

The top beam is designed with adjustment to fit different width demand. Overhead safety shut-off device prevents vehicle damags.

Optional Width Extension Kits With these kits the width between posts is adjusted from 2850mm(112-1/4″) to 3000mm(118-1/8″) Kits No.: 21004(OHX-10) Kits No.: 21005(OHX-10H).

Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
