AMGO OHX-10

The OHX-10 is designed with super asymmetric arms that can be configured with symmetric and asymmetric. The very long carriages design makes the lift working much smoothly and reliable. The top beam is designed to be adjusted in length, so it is easy to install the OHX-10 with about 6″ wider by using the width extension kits.

Click to download Product Brochure

Click to download Product Manual

Description

Features

Dual direct drive hydraulic cylinders made to high standards
Super Asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration
Single point safety release, allows the operator to disengage both columns simultaneously
Self lubricating UHMW Polyethylene sliders and bronze bushings
Clear floor design, provides unobstructed floor use

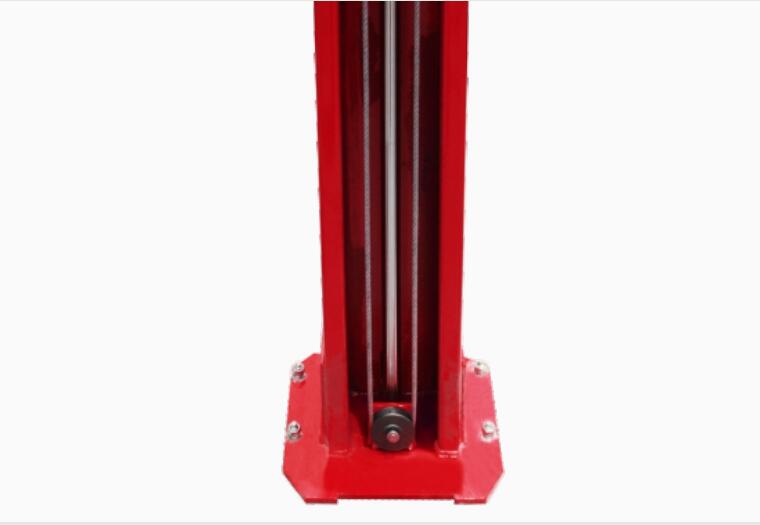

Single piece column allowing for easier installation
Stackable rubber pads and 1.5″, 2.5″, 5″
Width adjustable kit optional. Part #21004
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

Model	OHX-10
Lifting Capacity	10,000 lbs (4,536 kg)
Lifting Time	57s

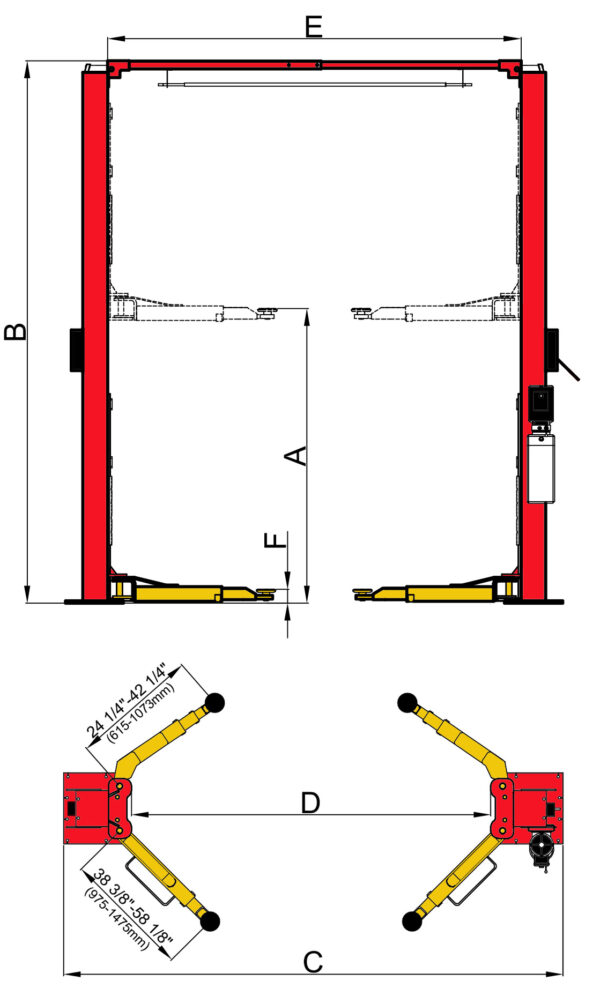

A: Lifting height	71 1/2″〜80 1/2″ (1815〜2044mm)
B: Overall Height	144″ (3658mm)
C: Overall Width	135″ / 140 7/8″ (3428/3578mm)
D: Drive-Thru Clearance	99 1/2″ / 105 1/2″ (2528/2678mm)
E: Width Between Columns	112 1/4″ / 118 1/8″ (2850/3000mm)
F: Minimum Pad Height	3 1/2″ （90mm）
Gross Weight	1,620 lbs (735 kg)
Motor	2.0HP/220V/60Hz,Single Phase

Detailed Images

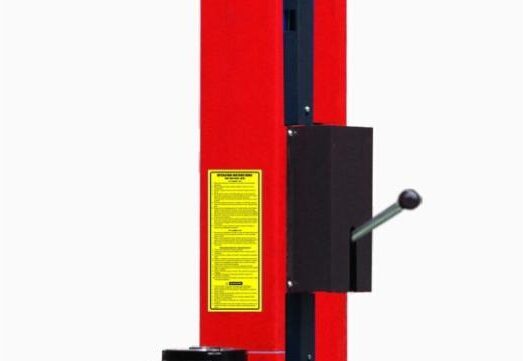

Single point safety release makes it easier for operators to unlock both column locks from one column.

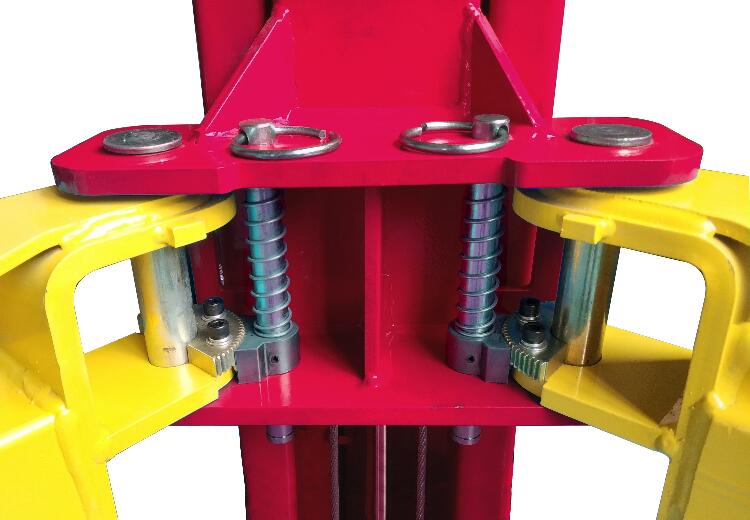

Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

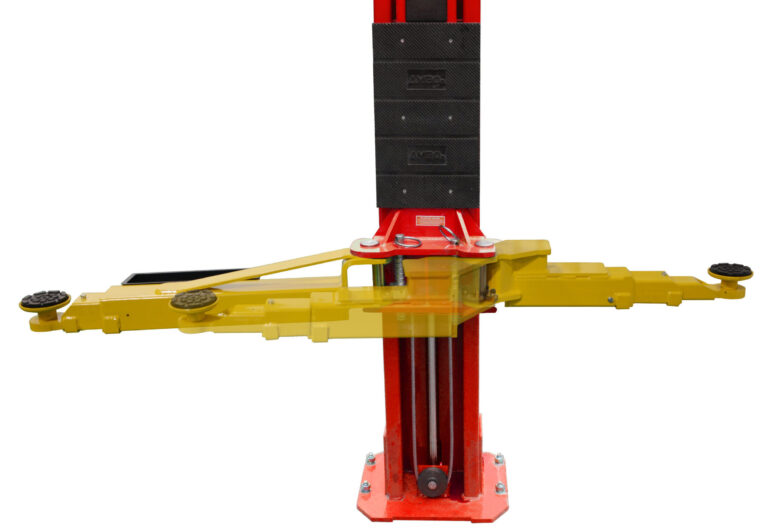

Super asymmetric arms allow you to load different vehicles in an asymmetric or symmetric configuration. Self-lubricating UHMW polyethylene sliders, rubber door guards to protect your vehicle.

Dual hydraulic direct-driven cylinders

The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

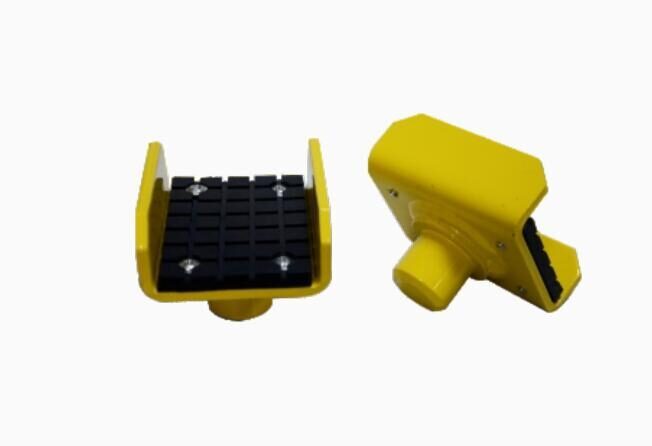

Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802

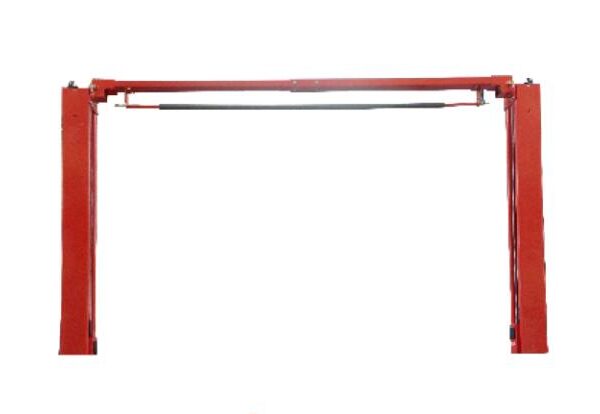

The top beam is designed with adjustment to fit different width demand. Overhead safety shut-off device prevents vehicle damags.

Optional Width Extension Kits With these kits the width between posts is adjusted from 2850mm(112-1/4″) to 3000mm(118-1/8″) Kits No.: 21004(OHX-10) Kits No.: 21005(OHX-10H).

Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
