220V 60Hz Manual Power Unit

These single-phase, 220 Volt, auto-hoist, AC power units are interchangeable for all vertical mount, 220 Volt, two and four-post car lift power units. They may also be used on any compatible hydraulic lifts and/or scissor lifts. Each unit features a power up/gravity down function with the lowering movement controlled by the manual release valve. These power units are designed for vertical mount applications only. When you need quality, power, and affordability all rolled into one unit, trust AMGO Power Units to help protect your business.

Model： 071101, 071102, 071104, and 071106

Contact Us Now

Features

  • CSA certified 2.0HP 3450 RPM motor, large torque
  • 220V single-phase 60Hz AC
  • Cartridge high pressure relief valve, the relief pressure is set at 3000 PSI
  • Cartridge high quality check valve and release valve, the leakage rate under 3000 PSI does not exceed 2 drops/min
  • Oil outlet on both sides (3/8″ SAE screw thread)
  • 3/8″ NPT oil return port
  • Both oil return flow and pressure are adjustable
  • Equipped with 6L, 11L or 14L high-density polyethylene oil tanks
  • 3 years warranty for hydraulic parts, 2 years warranty for electrical parts
Model 071101 071102 071104
Release Mode Manual Manual Manual
Phase 1PH 1PH 1PH
Current (Amps) 14.5 14.5 14.5
MotorVolt 220V 60Hz 220V 60Hz 220V 60Hz
Motor Power 2.0 HP 2.0 HP 2.0 HP
Pressure (MPA) 21 21 21
Rotate Speed (RPM) 3450 3450 3450
Flow (cc/r) 2.1 2.1 2.1
Oil Tank (L) 11 14 6

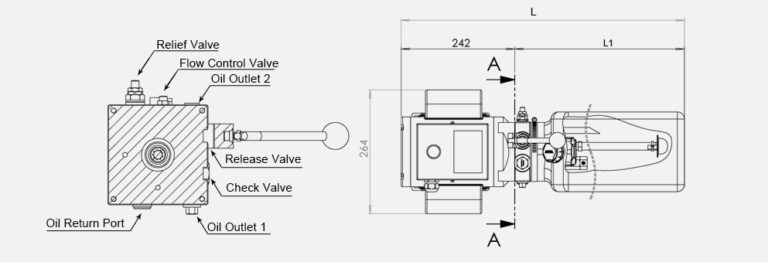

L: Total Length 805 mm 895 mm 595 mm
L1: Total Length 563 mm 653 mm 353 mm
