MC-1200P Motorcycle & ATV Lift

The MC-1200P has same steel structure as the MC-1200, but adopt pneumatic hydraulic pump as the power supply in stead of electricity.

Contact Us Now

Click to download Product Brochure

Click to download Product Manual

Description

Features

Power unit stand with hand-release power unit mechanism.
Mechanical hand-release safety lock with automatic activation.
Wide platform with several slots on each side to apply vehicle tightening belts.
Hydraulic cylinder with flow restrictor for stable and smooth lowering of the vehicle.
Advanced features such as the plastic tool tray and rear tire removal cover.

Model	MC-1200P
Lifting Capacity	1,200 lbs
Lifting Time	23s
A1: Lifting Height	43″ (1090mm)
A2: Minimum Height	6 1/8″ (155mm)
B: Overall Length (lnc.Ramp)	106 1/4″ (2700mm)
C: Runway Length	88 5/8″ (2250mm)
D: Overall Width	29 1/2″ (750mm)
Gross Weight	631 lbs (286 kg)
Air Pressure	0.6Mpa

Detailed Images

category

Front wheel vise Adjusted front wheel vise with Adjustable distance 410mm

category

Rear tire removal cover Removable platform cover plate is convenitent for rear wheel changing

category

Optional width extension kit Adding 600mm extra width on platfrom to be suitable for three or four-wheel motorcycle kits for.Kits NO.:MC001

category

Motorcycle lifts install widened attachments can be lifting ATV after the car

category

Automatically safety lock activating device,only available by AMGO!

category

Optional length extension kit

category

Vehicle tighten belt Tighten vehicle before lifting,shipped as standard.Kits No.:MC006

category

Optional lifting jack lifting capacity：500kg Perfect for wheel removal Kits No.：MC005

category

Pneumatis hydraulic pump

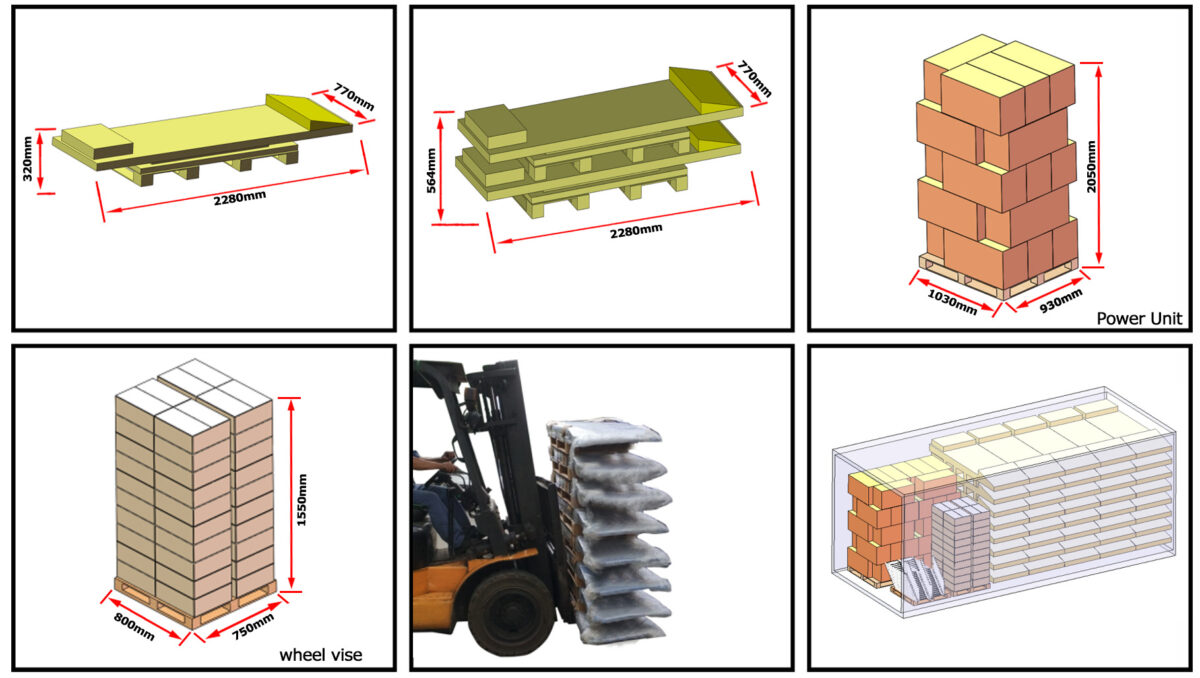

Shipping Information
