MR06 Portable Mid Rise Lift


The Mid-Rise Lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business. It provides a good working height for tires, brakes and body repairs. Quick set up time and an extended raised height makes the MR06 a real Winner for those shops that demand speed and quality in their lifting equipment.

Features

  • Mechanical self-lock and cable-breaking protection
  • Portable design, easy to move the lift with the power unit stand
  • Two hydraulic cylinders with a flow restrictor
  • Standard 1.5″ and 2.5″ extension adapter kits included
Model MR06
Lifting Capacity 6,000 lbs
Lifting Time 26s

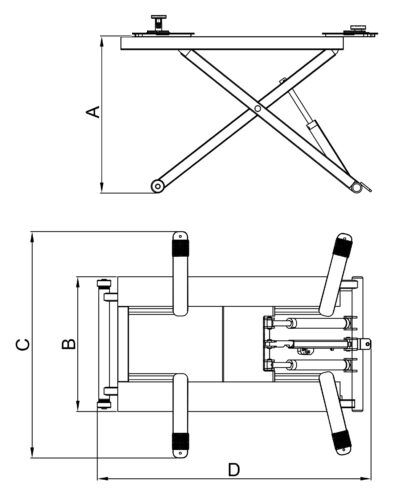

A1: Lifting Height 42 1/8″ (1070mm)
A2: Minimum Height 4 1/8″ (105mm)
B: Platform Width 39 3/8″ (1000mm)
C: Swing Width 66 1/4″ (1684mm)
D: Overall Length 74 1/4″ (1885mm)
Gross Weight 919lbs (417kg)
Motor 1.0HP, 110V/60Hz, Single Phase

Detailed Images

category

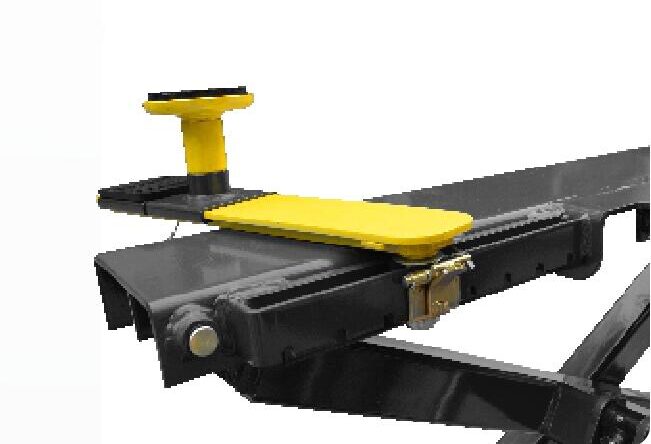

Supporting Arms: Unique limit lock structure, effectively prevents arms to slip off during operation. Two size standard adapters kits for flexibly using.
category

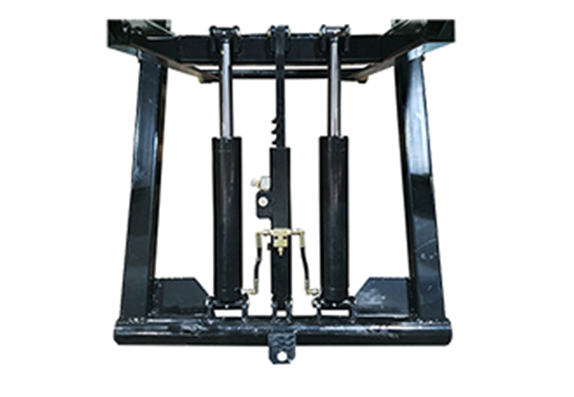

Safety Lock: High strength safety ladder, mechanical self – locking design, manual control safety release.
category

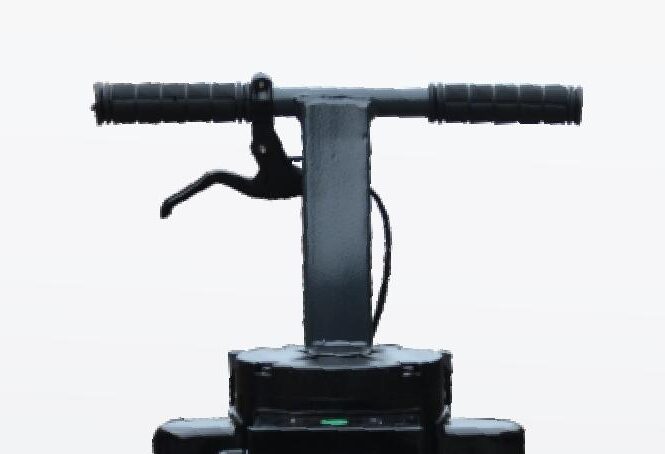

Release safety lock freely by handle.
category

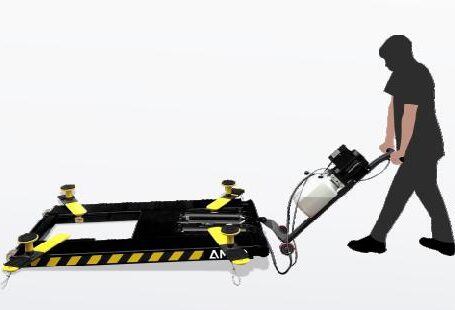

Portable design: Easy to move the lift with the power unit stand.

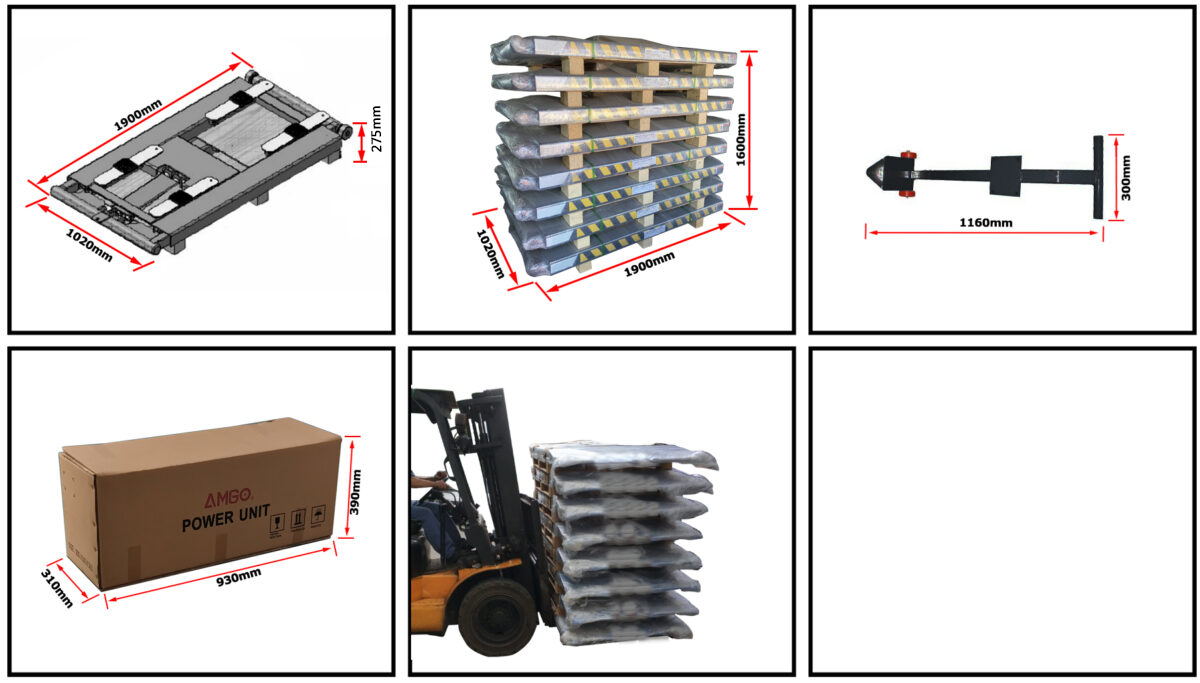

Shipping Information
