EM06 Portable Mid Rise Lift


This mid-rise, portable lift is an excellent choice for a low ceiling tire shop or service center that wants to get a passenger car or light SUV lifted as quickly as possible. The EM06 model raises vehicles to a full 40″. Simply drive the vehicle over the approach ramps and place the rubber support blocks under the vehicle’s lifting points.

Features

  • Moveable Electric / Hydraulic Cabinet with hand-release power unit.
  • Mechanical hand-release safety lock with automatic activation.
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.
  • Can be made portable by using the OPTIONAL dolly, Kit No: EM002.
Model EM06
Lifting Capacity 6,000 lbs
Lifting Time 26s

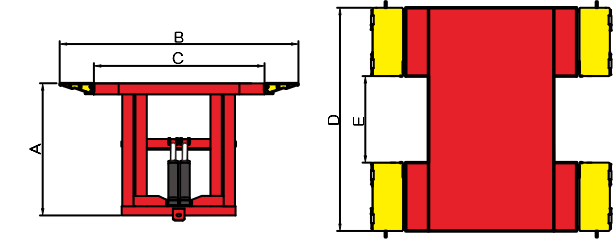

A: Lifting Height 41 3/4″ (1060mm)
A: Minimum Height 4 1/8″ (105mm)
B: Platform Width 80″ (2030mm)
C: Swing Width 57 1/2″ (1460mm)
D: Overall Length 77 1/8″ (1960mm)
Gross Weight 1202lbs (545kg)
Motor 2.0HP,220V/60Hz,single phase

Detailed Images

category
Adjustable approach ramps quickly extend the length of the platform.
category
Two hydraulic cylinders and hydraulic safety locks.
category
Both 1 1/2” and 3” height rubber pads included as standard supply.
category
Can be made portable by using the optional dolly,kit No.:EM002

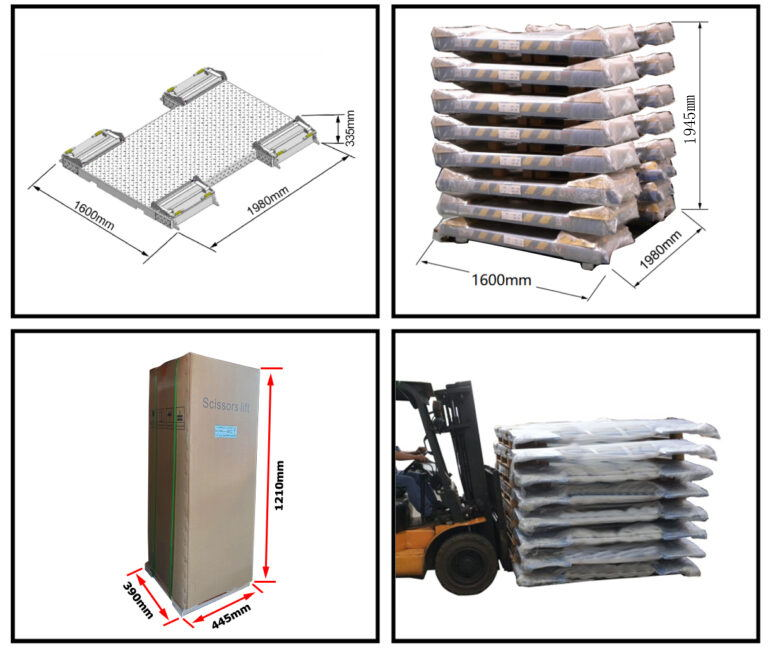

Shipping Information
