AMGO 409-DPX

Longer and higher model of 409-DP. More space created to park higher vehicles underneath, like SUV, light truck, etc.

Click to download Product Brochure

Lifting capacity: 9,000lbs, max. car weight:6,000lbs.
Max lifting height:87 11/16”
Low profile design, minimum platform height only 6 3/32″
Both primary & slack-cable safety devices as standard.

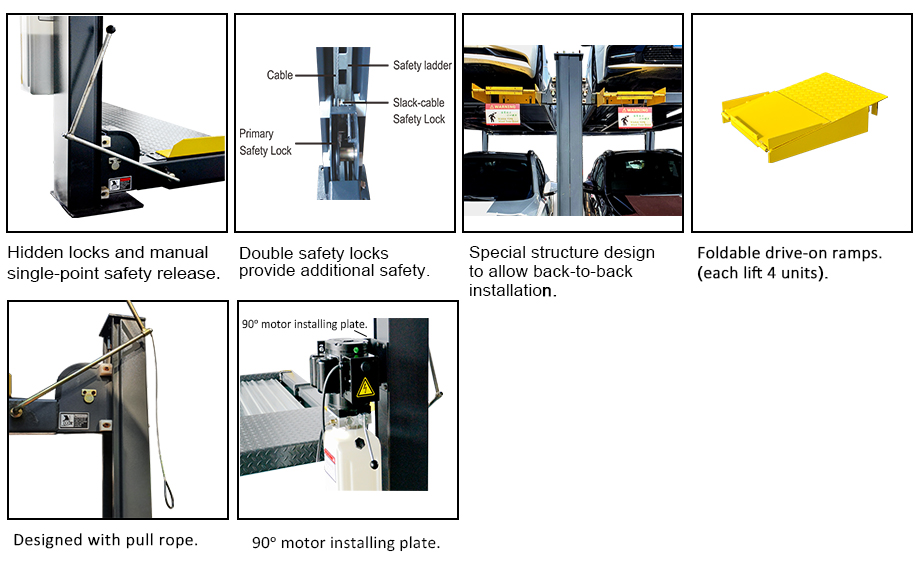

Exclusive: hidden safety locks and manual single-point safety release.
Exclusive: Foldable drive-on ramps of 4 units.

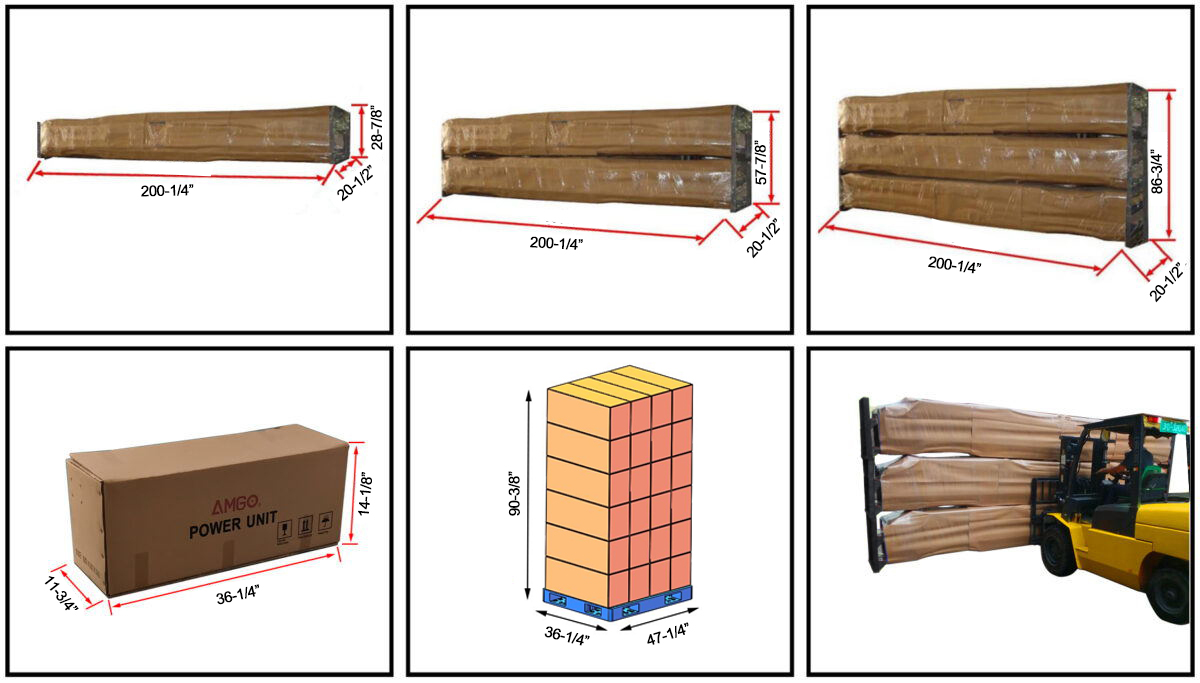

Exclusive: Ingenious designs to minimize the package size, reduces the transportation charge and storage cost.
Exclusive: Double S Shaped columns for increased strength.
Non-slip diamond platforms.
Adjustable multiple safety ladders.
Pull rope comes as standard.
110V power unit is worked with the lift (lifting time: 120s), please specify when ordering.

Model	409-DPX
Lifting Capacity	9,000 lbs
Lifting Time	57s
A: Overall Length (Inc Ramps)	234 27/32″
B: Overall Length (Not Inc Ramps)	201 3/8″
C: Overall Width	201 9/16″
D: Width Between Columns	192 1/16″
E: Drive Through Width	177 23/32″
F: Overall Height	96 21/32″
G: Minimum Height	6 3/32″
H: Max. Lifting Height H: Max. Lock Height to top of Runway	87 11/16″ 84 15/16″
I: Max. Height Underneath Runway H: Max. Lock Height underneath Runway	83 3/4″ 81″
J: Width Between Runways	37″
K: Overwall Width of Single Parking Unit	74 13/32″
L: Width Between Two Parking Units	21 21/32″
Gross Weight	3,142 lbs
Motor	2.0HP 220V Single Phase
