AMGO BP-10

AMGO BP series base plate two column lift are stronger and easier to operate than any other lifter in the world. The rugged BP-10 can lift up to 10,000lbs vehicles. It is designed without overhead barriers and suitable for professional and family garages with low ceilings to increase headroom. AMGO’s two column lifts are manufactured to high quality standards, using critical materials and components, with advanced features and innovative technology.

Click to download Product Brochure

Click to download Product Manual

Description

Features

10,000 lbs capacity, commercial grade 2-post base plate lift is designed and built for any professional shops and home garages to fit low ceiling workshop environment without overhead obstructions.
Single-point safety release allows the operator to unlock the safety locks from both Columns simultaneously. There is also a dual locking system for additional safety.
4 three-stage arms are suitable for more vehicles.
Automatic arm restraints keep the arms locked in their proper positions.
Self-lubricating UHMW Polyethylene sliders and bronze bushings.
Aircraft quality cable is used for synchronization.
Detachable foot guard and tool tray allow for a clutter free workspace.
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components.

Model	BP-10
Lifting Capacity	10,000lbs (4,536kg)
Lifting Time	62s

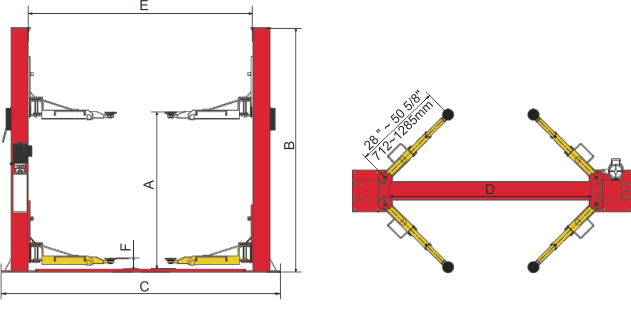

A: Lifting height	76 3/8″ ~ 85 3/8″ (1940~2169mm)
B: Overall Height	111 7/8″ (2841mm)
C: Overall Width	139 1/8″ (3534mm)
D: Drive-Thru Clearance	100 3/4″ (2560mm)
E: Width Between Columns	112 1/4″ (2850mm)
F: Minimum Pad Height	3 1/2″ （90mm）
Gross Weight	1,697lbs (770kg)
Motor	2.0HP/220V/60Hz,Single Phase

Detailed Images

The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

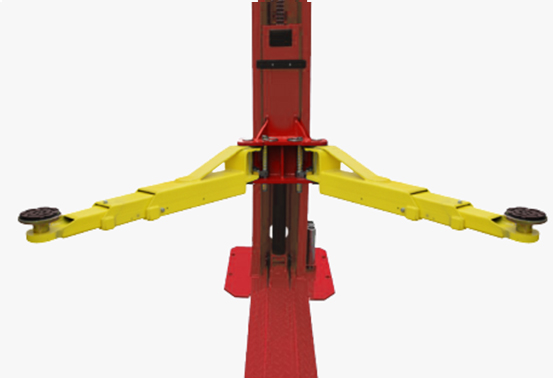

4 three-stage arms are suitable for more vehicles.

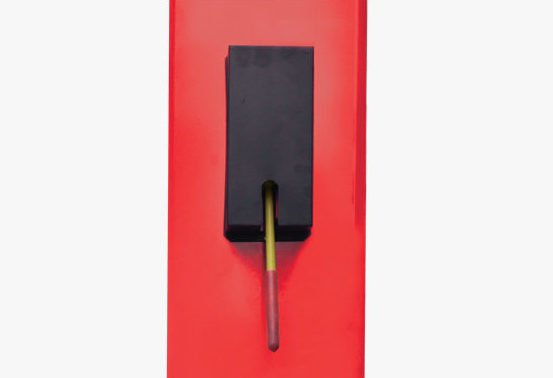

Single point safety release makes it easier for operators to unlock both column locks from one column.

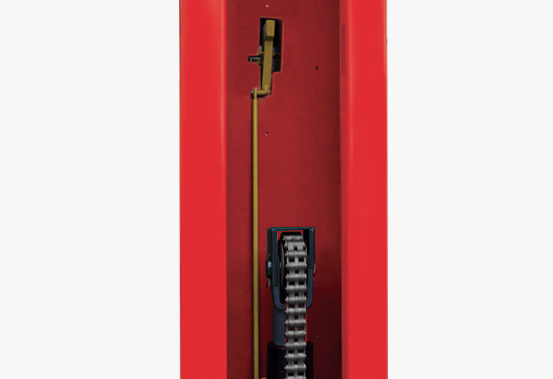

Two locks, one release. Only available from AMGO.

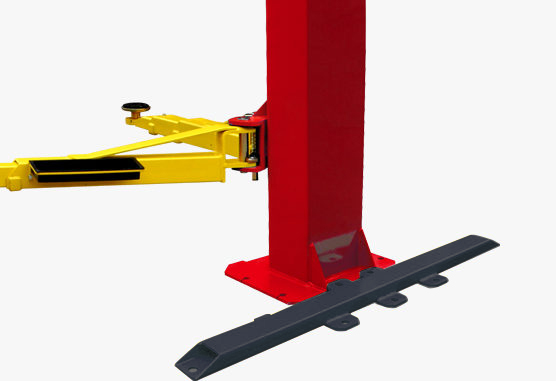

Optional base plate, Kit No: 20903

Optional Saddle adaptors perfect choice for wide size SUV vehicles. Kits No.:20802

Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
