AMGO 409-DP

Our newest space saving 9,000lbs lift. 1 lift can accommodate 2 parking positions to park 4 vehicles. It’s low profile, with hidden safety locks and single-point lock release. Foldable drive-on ramps come standard.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

Features

  • Lifting capacity: 9,000lbs, max. car weight:6,000lbs.
  • Max lifting height: 73 11/16”
  • Low profile design, minimum platform height only 6 3/32″
  • Both primary & slack-cable safety devices as standard.
  • Exclusive: hidden safety locks and manual single-point safety release.
  • Exclusive: Foldable drive-on ramps of 4 units.
  • Exclusive: Ingenious designs to minimize the package size, reduces the transportation charge and storage cost.
  • Exclusive: Double S Shaped columns for increased strength.
  • Non-slip diamond platforms.
  • Adjustable multiple safety ladders.
  • 110V power unit is worked with the lift (lifting time: 100s), please specify when ordering.
Model 409-DP
Lifting Capacity 9,000 lbs
Lifting Time 47s

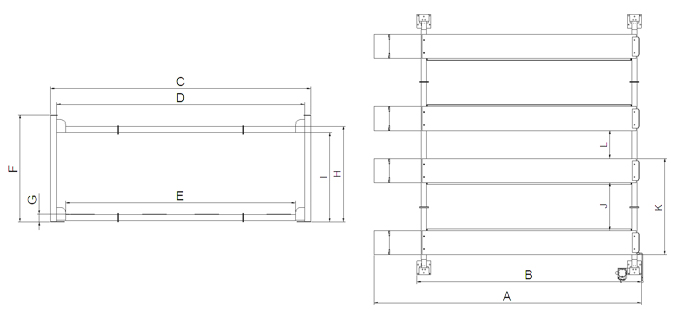

A: Overall Length (Inc Ramps) 207 9/32″
B: Overall Length (Not Inc Ramps) 173 13/16″
C: Overall Width 201 9/16″
D: Width Between Columns 192 1/16″
E: Drive Through Width 177 23/32″
F: Overall Height 82 7/8″
G: Minimum Height 6 3/32″
H: Max. Lifting Height
H: Max. Lock Height to top of Runway		 73 11/16″
70 15/16″
I: Max. Height Underneath Runway
H: Max. Lock Height underneath Runway		 69 3/4″
67″
J: Width Between Runways 37″
K: Overwall Width of Single Parking Unit 74 13/32″
L: Width Between Two Parking Units 21 21/32″
Gross Weight 2,810 lbs
Motor 2.0HP 220V Single Phase

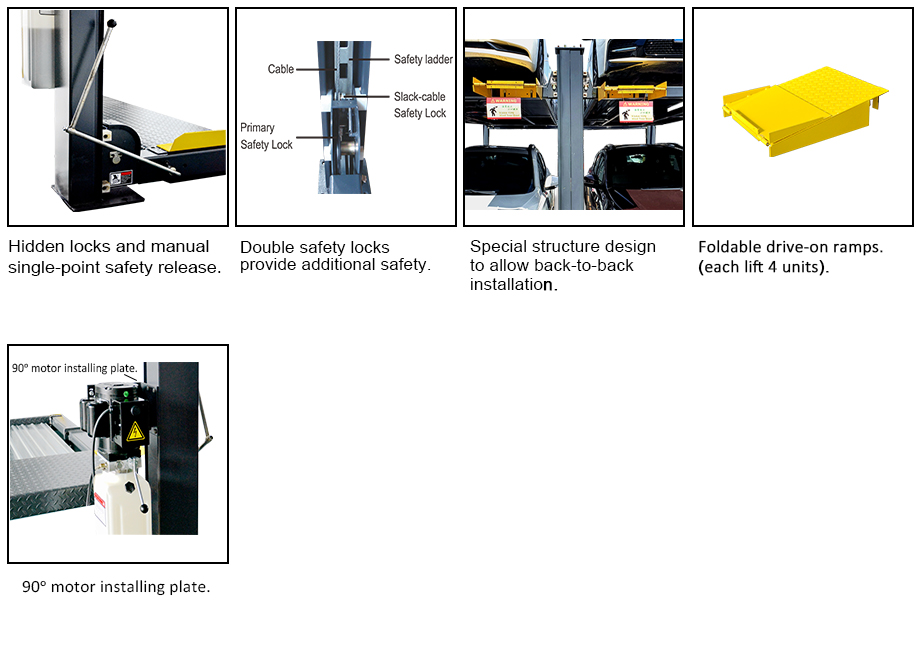

Exclusive Features

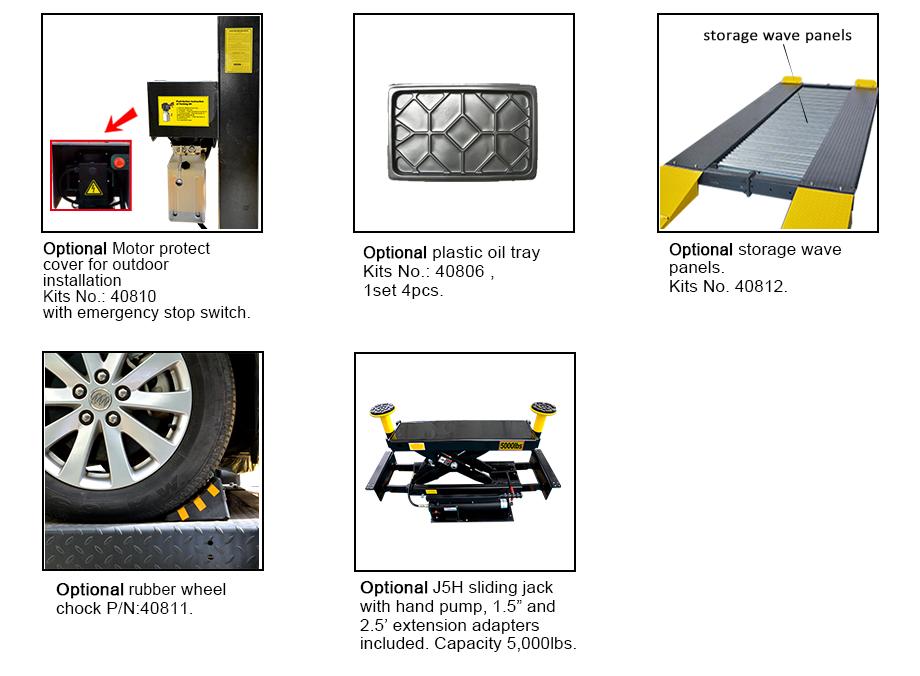

Optional Parts

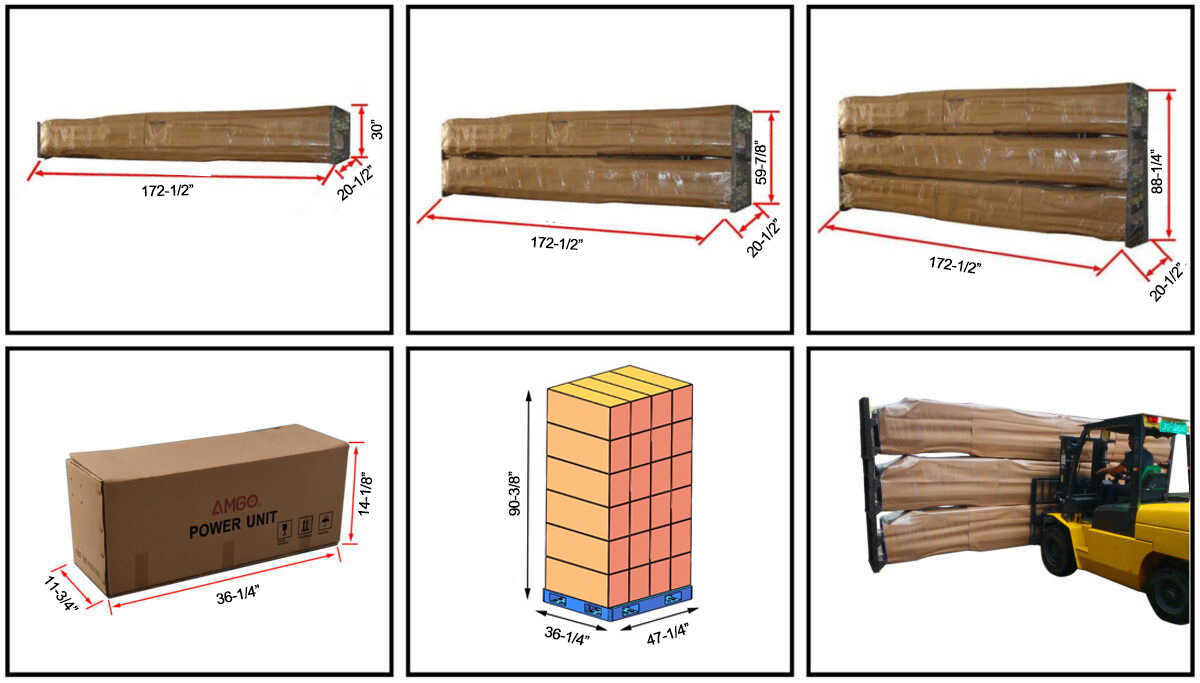

Shipping Information

20′ container can load 12 units.
40′ HQ container can load 24 units.
