AMGO 409-HP

A parking lift for full range vehicle including car, SUV and light truck.Similar to model 408-HP, but longer, wider and heavier.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

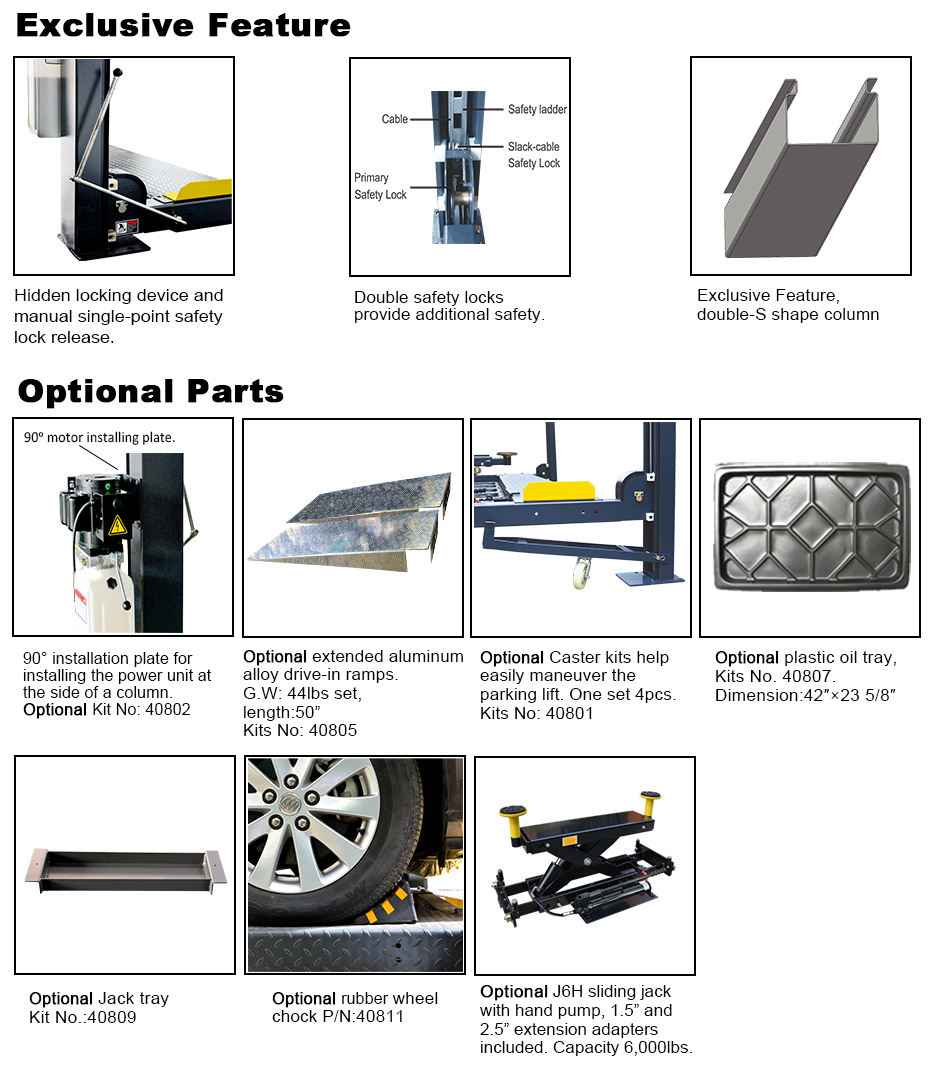

Features

  • 9,000lbs lifting capacity
  • High lifting rise: 82”
  • AMGO exclusive hidden safety locks and manual single-point lock release
  • Multi safety locks in each column
  • Adjustable lock ladder
  • Automatic safety locks combined with redundant anti-fall devices
  • Double-S shaped columns for increased strength
  • Non-slip platform
  • Flexible Design: power side column can be installed at any corner
  • Designed portable,it can be moved easily by using the optional caster kits
  • 220V or 110V single phase power unit
  • AMGO 5-3-2 Warranty
Model 409-HP
Lifting Capacity 9,000lbs
Lifting Time 122s(110V) 46s(220V)
A: Overall Length (Inc Ramps) 234 1/2″ (5957mm)
B: Overall Length (Not Inc Ramps) 200 3/4″ (5100mm)
C: Overall Width 126 1/4″ (3206mm)
D: Width Between Posts 112 5/8″ (2860mm)
E: Max. Lifting Height 87 3/4″ (2227mm)
F: Overall Height 96 5/8″ (2455mm)
G: Minimum Height 6 1/8″(155mm)
H: Max. Underneath Height 83″ (2107mm)
I: Drive-Thru Clearance 98 1/4″ (2496mm)
J: Width Between Runways 42 3/8″ (1077mm)
K: Outside Edge of Runways 82 3/8″ (2093mm)
Gross Weight 1,993lbs (904kg)
Motor 1.0HP 110V/60Hz; 2.0HP 220V/60Hz

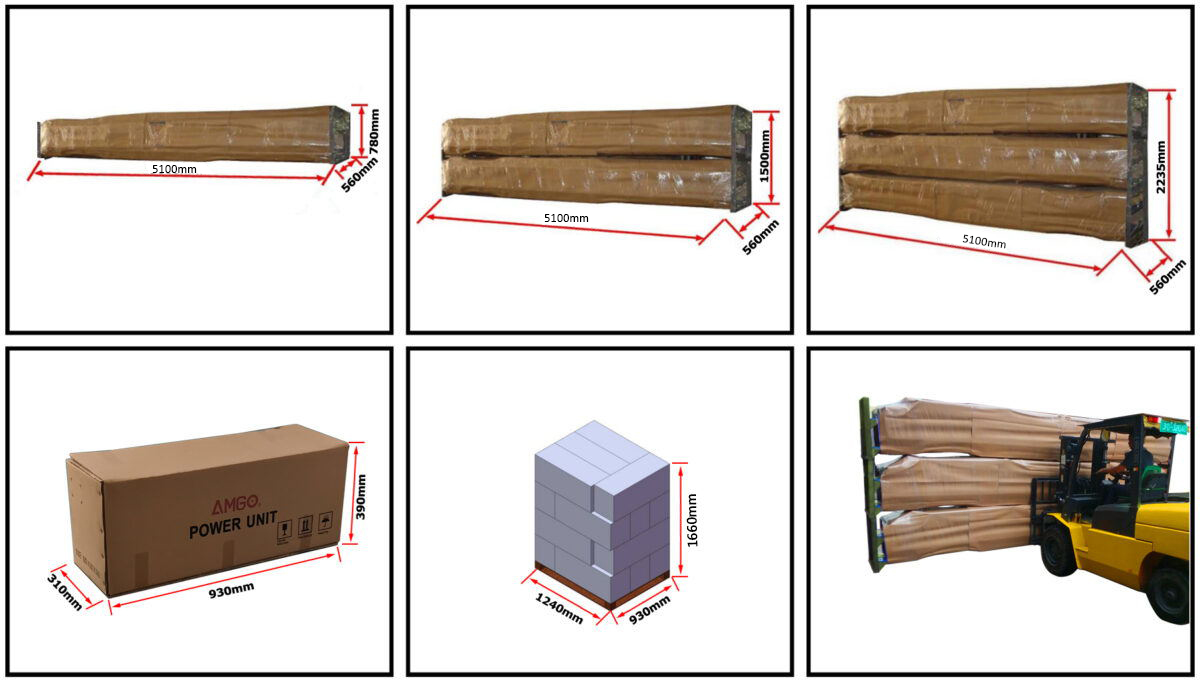

Shipping Information

20′ container can load 12 units.
40′ container can load 24 units.
