AMGO 408-P

The AMGO 408-P is the perfect lift for residential and commercial shops alike. It can handle vehicles up to 8,000lbs and requires no anchors to your concrete. This lift is easy to install and operate, and is built to the highest quality standard. The AMGO 408-P is one of the best 4-post lifts on the market. Add on additional caster kits, and simply roll the lift to a new location.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

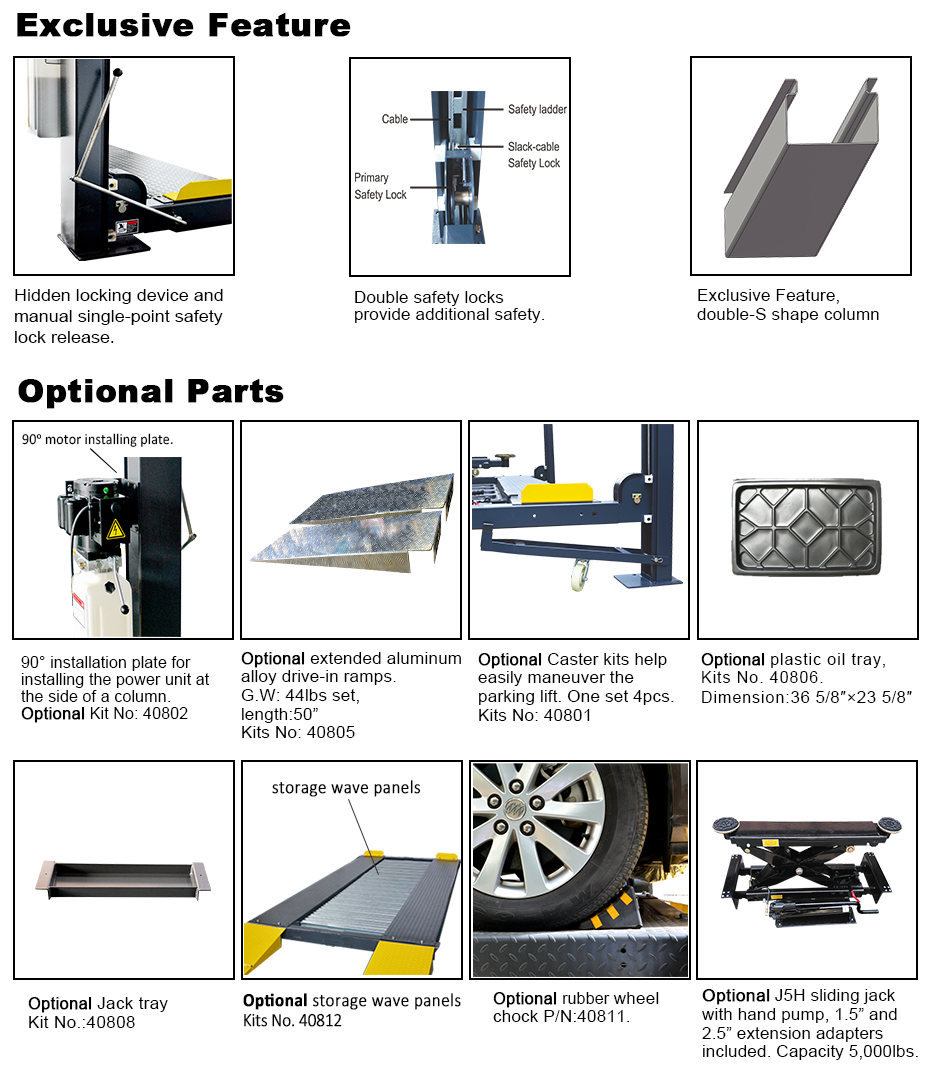

Features

  • 8,000lbs lifting capacity
  • AMGO exclusive hidden safety locks and manual single-point lock release
  • Multi safety locks in each column
  • Adjustable lock ladder
  • Automatic safety locks combined with redundant anti-fall devices
  • Double-S shaped columns for increased strength
  • Non-slip platform
  • Flexible Design: power side column can be installed at any corner
  • AMGO 5-3-2 Warranty
Model 408-P
Lifting Capacity 8,000lbs
Lifting Time 83s(110V) 31s(220V)

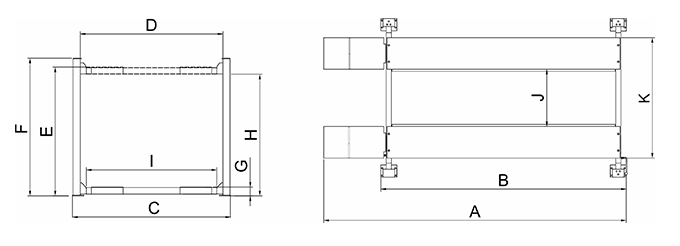

A: Overall Length (Inc Ramps) 207″ (5257mm)
B: Overall Length (Not Inc Ramps) 173 1/4″ (4400mm)
C: Overall Width 109 5/8″ (2784mm)
D: Width Between Posts 96″ (2438mm)
E: Max. Lifting Height 73 3/4″ (1872mm)
F: Overall Height 82 7/8″ (2105mm)
G: Minimum Height 6 1/8″(155mm)
H: Max. Underneath Height 69″ (1752mm)
I: Drive-Thru Clearance 81 5/8″ (2074mm)
J: Width Between Runways 37″ (940mm)
K: Outside Edge of Runways 74 3/8″ (1890mm)
Gross Weight 1,649lbs(747kg)
Motor 1.0HP 110V/60Hz; 2.0HP 220V/60Hz

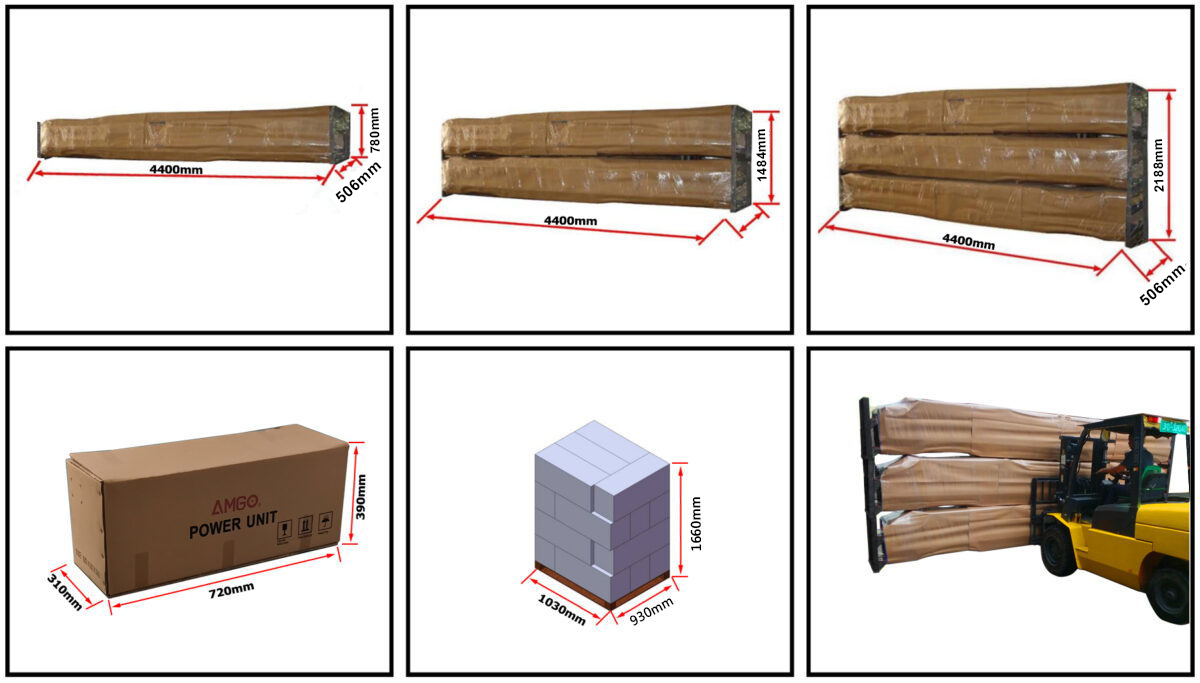

Shipping Information

20′ container can load 12 units.
40′ container can load 24 units.
