SPL-6 Single-post Parking Lift

The SPL-6 is our newest single post parking lift. This lift combines AMGO high quality with space saving design and easy operation. The SPL-6 is great fit for home garages and commercial shops.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

Features

  • 6,000lbs lifting capacity
  • Manual safety lock release
  • Non slip lifting platform
  • H-shaped lifting platform with reinforced column
  • Low post height for low ceilings
  • Suitable for home garages and commercial applications
  • Reversible Drive in ramps (drive in from either side)
  • ETL certified power unit
Model SPL-6
Lifting Capacity 6,000lbs
Lifting Time 84s(110V) 32s(220V)
A： Overall Height 108 7/8″ (2766mm)
B： Max. Lifting Height 74″ (1880mm)
C： Max. Underneath Height 69 1/4″ (1760mm)
D: Minimum Height 6 3/8″ (160mm)
E： Overall Width 111″ (2820mm)
F： Outside Edge of Runways 82 3/8″ (2093mm)
G： Width Between Runways 42 3/8″ (1077mm)
H： Platform Length 152″ (3860mm)
I： Overall Length 192 1/8″ (4880mm)
Gross Weight 2,725lbs (1235kg)
Motor 2.0HP, 220V/60Hz Single Phase

Optional Parts

category

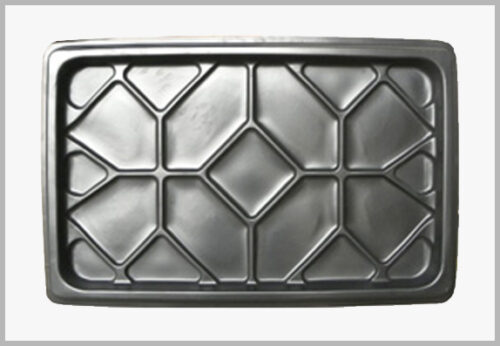

Optional Drip Trays one set 4pcs. Kit No: 40807. Specifications 42″×23 5/8″
category

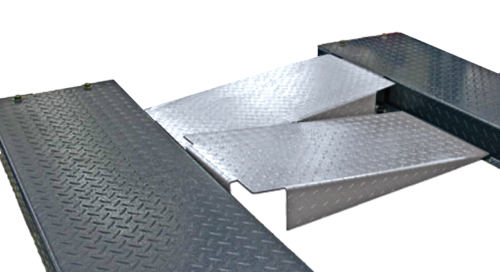

Optional Aluminum alloy drive in ramps. Weight for the set is 40 lbs (18 kg). Kit No: 40803
