AMGO AX-16A

The AMGO AX-16A Alignment Scissor Lift is more than just an alignment lift. The AX-16A is a great lift to expand your shop’s capacity for larger vehicles and greater workload with its rugged design and increased dependability. The hefty 8 ton lifting capacity provides the heavy-duty workload needed for mechanics to increase efficiency and productivity for greater long-run profits.

Click to download Product Brochure

Click to download Product Manual

Description

Features

2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
Electro-air control system, which operates the self-lock safety mechanism
Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
Skid proof diamond platform
Optional Rolling Jacks:
- RJ-8A: 8,000 lbs with pneumatic pump
More choices:
- Optional turnplate Kits No. 40101
- Optional led lights Kits No. PX010
- Optional extension Kits No. PX003
- Optional airline Kits No. PX004

Model	AX-16A
Style	Alignment
Lifting Capacity	16,000 lbs (7,300 kg)
Lifting Time	110s

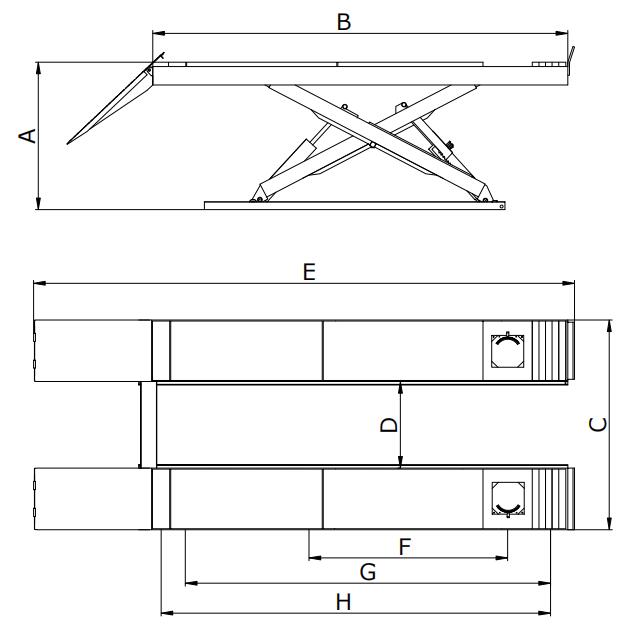

A1: Max. Lifting Height	73 5/8″ (1870mm)
A2: Minimum Height	13″ (330mm)
B: Runway Length	213 3/4″ (5428mm)
C: Overall Width	94 1/8″ (2390mm)
D: Width Between Runways	44 7/8″ (1140mm)
E: Overall Length(Inc.Ramps)	274 1/8″ (6964mm)
F: Min.Four Wheel Align	98″ (2490mm)
G: Max.Four Wheel Align	184 1/2″ (4680mm)
H: Max.Two Wheel Align	190 1/2″ (4840mm)
Gross Weight	6,345lbs (2,878 kg)
Motor	2.0HP, 220V/60Hz Single Phase
