AMGO DX-12A

The AMGO DX-12A Double Scissors Lift is the ideal lift for easily and conveniently lifting all wheels off the runway for brake, tire, suspension and two or four-wheel alignment work. The DX-12A is made stronger, more versatile, and easier to use and can lift 12,000lbs.

Click to download Product Brochure

Click to download Product Manual

Description

Features

12,000lbs capacity for main scissor lift and 9,000lbs capacity for secondary scissor lift

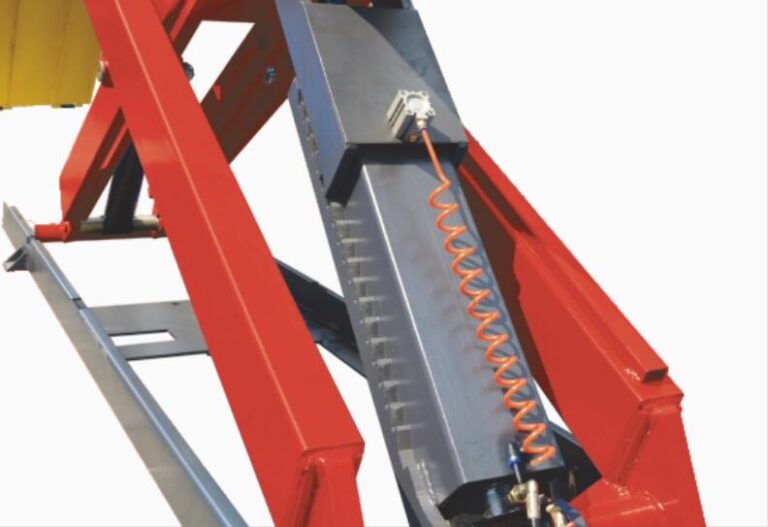

Synchronization cylinders system equipped with hose burst valves
Safety stop device at the height of 11 3/4″, both control buttons are needed to lower the lift from 11 3/4″ to ground, with tone alarm for added safety

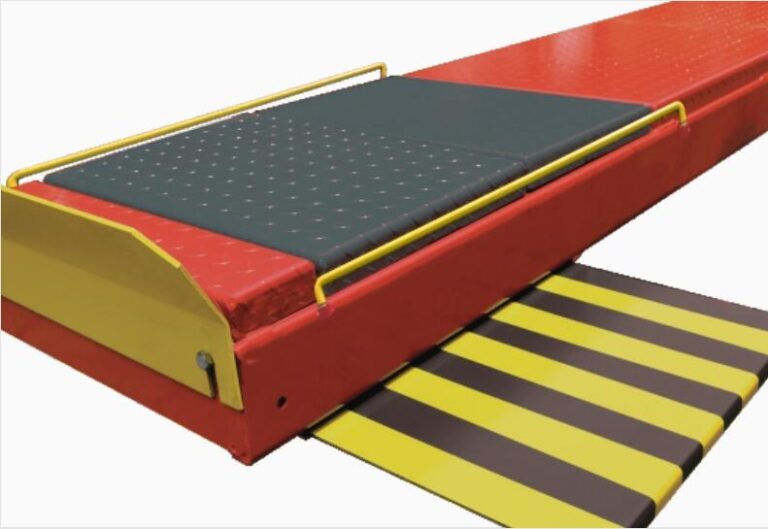

Skid proof diamond runways and optional adjustable turnplate pockets
Self-lubricating UHMW polyethylene sliders and bronze bushings

Model	DX-12A
Main Scissor Lifting Capacity	12,000 lbs (5,500 kg)
Lifting Time	63s

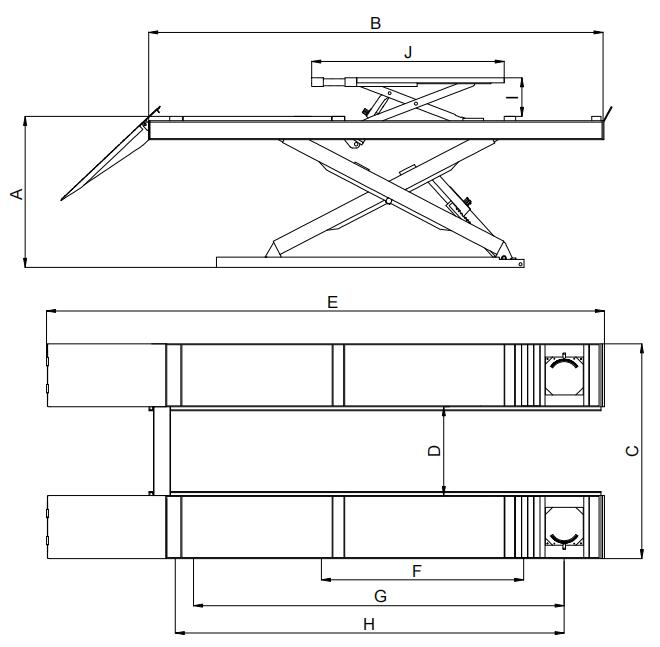

A1: Max. Lifting Height	73 5/8″ (1870mm)
A2: Minimum Height	12 5/8″ (320mm)
B: Runway Length	196 1/2″ (4991mm)
C: Overall Width	86 1/4″ (2190mm)
D: Width Between Runways	37″ (940mm)
E: Overall Length(Inc.Ramps)	257″ (6527mm)
F: Min.Four Wheel Align	85 7/8″ (2180mm)
G: Max.Four Wheel Align	166 1/2″ (4230mm)
H: Max.Two Wheel Align	172 7/8″ (4390mm)
Secondary Scissor Lifting Capacity	9,000lbs (4000kg)
I: Secondary Scissor Lifting Height	16 1/2″ (420mm)
J: Secondary Scissor Length	63″~74″ (1600~1880mm)
Gross Weight	5,706 lbs (2,588 kg)
Motor	2.0HP, 220V/60Hz Single Phase
