XL-9F Flush Mount Scissors Lift

The AMGO XL-9F Scissors Lift is the perfect choice for you. AMGO’s Full Rise XL-9F Flush Mount Scissors Lift works great for raising vehicles high enough to walk underneath, and can be flush mounted to the floor, maximizing limited bay space. The XL-9F is made stronger, more versatile, and easier to use and can lift 9,000lbs.

Click to download Product Brochure

Click to download Product Manual

Description

Features

Features an electric/hydraulic power system.

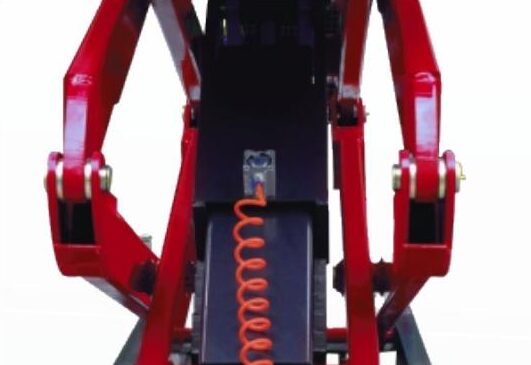

Dual synchronous cylinders are applied to assure the lifting level on both platforms.

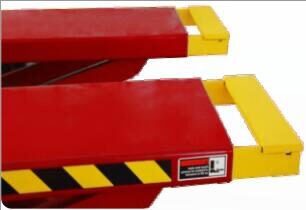

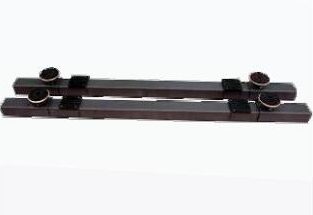

Platforms are designed to be extended. It can be adjusted for most of the cars.

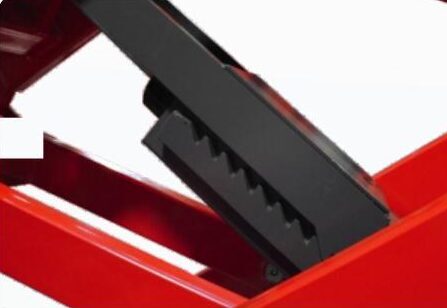

Mechanical locking system. The safety release is operated by air cylinders.
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components

Model	XL-9F
Lifting Capacity	9,000 lbs (4,000 kg)
Lifting Time	49s

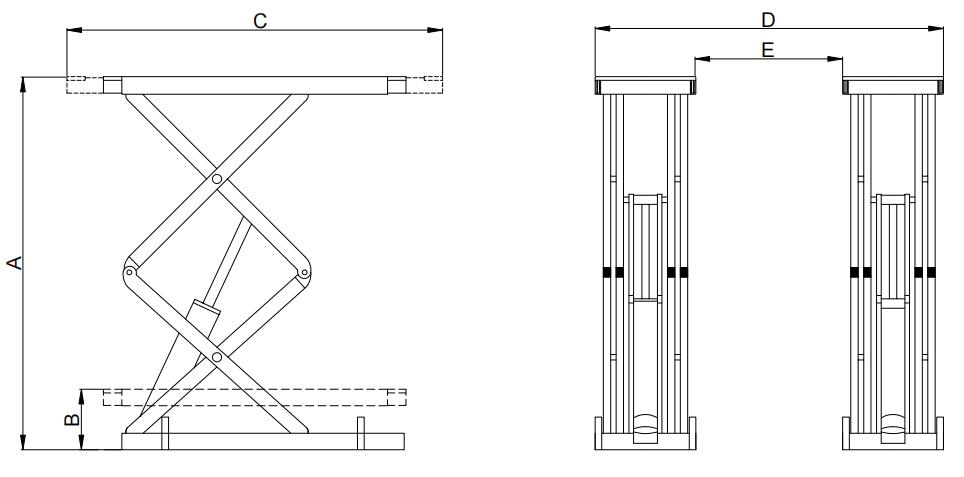

A: Max. Lifting Height	87 3/4″ (2230mm)
B: Minimum Height	13 3/4″ (350mm)
C: Overall Length	65 1/8″-80 7/8″ (1654-2054mm)
D: Overall Width	74 3/4″ (1900mm)
E: Width Between Runways	31 1/2″ (800mm)
Gross Weight	2,028 lbs (920 kg)
Motor	2.0HP, 220V/60Hz Single Phase
