XL-7 Low Profile Scissors Lift

If you have a growing workload but limited space, then the AMGO XL-7 Scissors Lift is the perfect choice for you. AMGO’s Full Rise XL-7 Scissors Lift works great for raising vehicles high enough to walk underneath, and has a low profile design of only 4 ½ inches, maximizing limited bay space. The XL-7 is made stronger, more versatile, and easier to use and can lift 7,000lbs.

Click to download Product Brochure

Click to download Product Manual

Description

Features

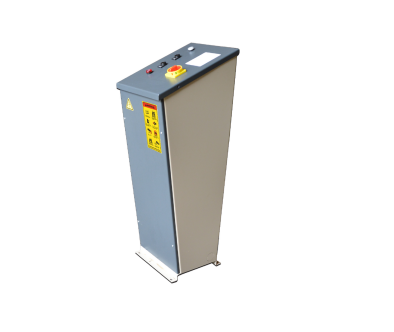

24V control system for safety operation

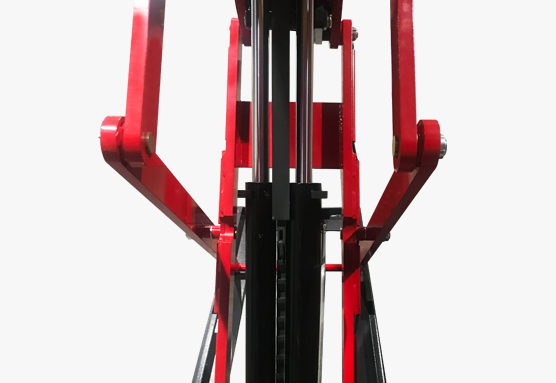

2-Dual synchronous cylinders are applied to assure the lifting level on both platforms
Hydraulic cylinders built with hose burst valves for safety protection
Both mechanical and hydraulic locking system. This makes it one of the safest small scissors lift in the world
A safety stop device at the height of 11 7/8″(300mm), both control buttons are needed to lower the lift to ground, tone alarm for added safety.
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components

Model	XL-7
Lifting Capacity	7,000 lbs
Lifting Time	42s

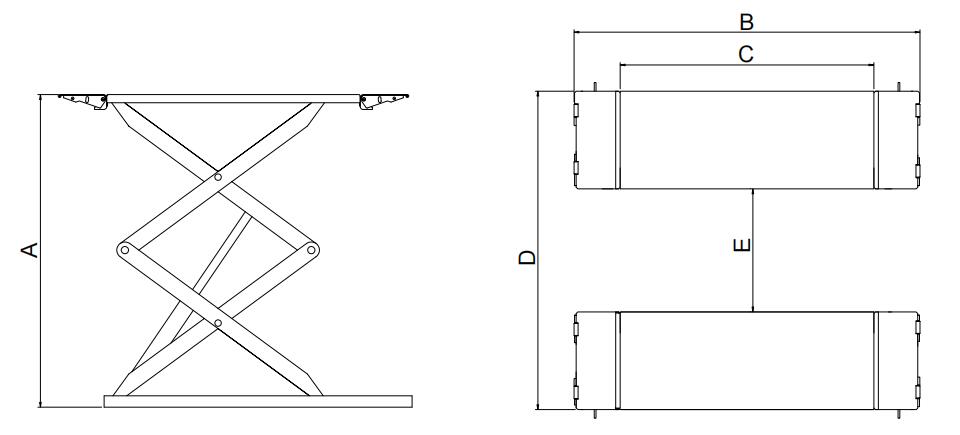

A1: Max. Lifting Height	78 3/4″ (2000mm)

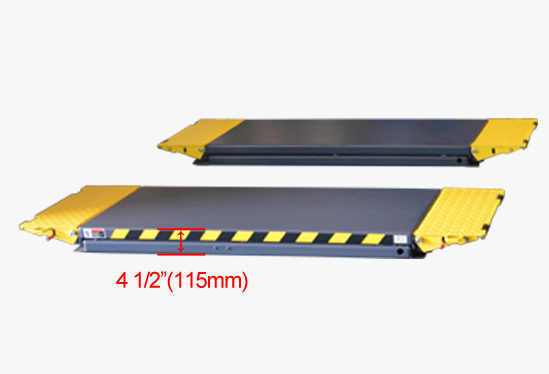

A2: Minimum Height	4 1/2″ (115mm)
B: Overall Length(Inc Ramps)	80″ (2032mm)
C: Runway Length	57 5/8″ (1464mm)
D: Overall Width	76 3/4″ (1950mm)
E: Width Between Runways	29 1/2″ (750mm)
Gross Weight	1,949 lbs (884kg)
Motor	2.0HP, 220V/60Hz Single Phase
