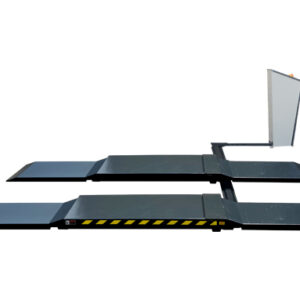

MRL09 Mid-rise Scissors Lift

AMGO mid-rise scissors lift model MRL09 is designed with hydraulic locking system, and double entrance drive-in ramps which are suitable for most vehicles, especially lower chassis cars.

Click to download Product Brochure

Click to download Product Manual

Description

Features

9,000 lbs(4000kg) capacity.
Mid rise scissors lift, 24V Safety voltage control.

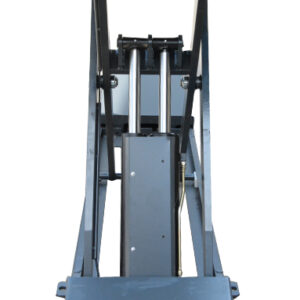

Dual hydraulic synchronization & hydraulic locking system.
The lifting scissors are made of thickened steel which is more strong.

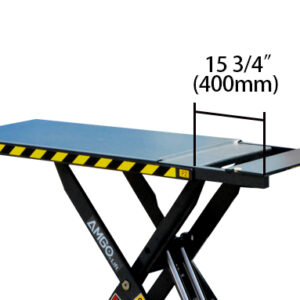

Adjustable lift platform length, applicable to vehicles with different wheelbases.
Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles.
Flexible structure design, users can choose either flush mount or surface mount installation.
Standard ETL certificated power unit./li>
AMGO global 5-3-2 warranty policy
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components

Model	MRL-09
Lifting Capacity	9,000 lbs (4,000kg)
Lifting Time	29s

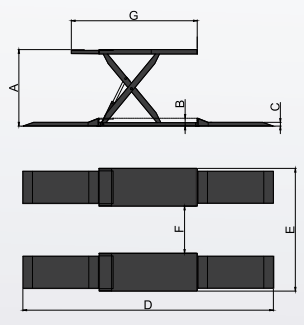

A: Max. Lifting Height	47 1/4″ (1200mm)
B: Minimum Height	5 3/8″ (135mm)
C: First Stage Ramp Height	2 1/2″ (65mm)
D: Overall Length (Inc. Ramps)	156 3/4″ (3980mm)
E: Overall Width	76 3/4″ (1950mm)
F: Width Between Runways	29 1/2″ (750mm)
G: Runway Length	61 3/8″ - 77 1/8″ (1560mm-1960mm)
Gross Weight	1,788 lbs (811kg)
Motor	2.0HP, 220V/60Hz Single Phase
