AMGO PRO-18A

The PRO-18A, this is the lift you need if you want to have great features with a high capacity for alignment work performed on your vehicles.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

Features

  • 18,000 lbs capacity.
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self lock and cable breaking protection.
  • Optional turnplate pockets to fit different wheel bases
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed
  • Optional Rolling Jack:
    - RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41801 and plus 41803
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components
Model PRO-18A
Style Alignment
Lifting Capacity 18,000 lbs (8,000kg)
Lifting Time 92s
A: Overall Length (Inc.Ramps) 292 3/4″ (7436mm)
B: Overall Length (No.Ramps) 252 1/4″ (6408mm)
C: Overall Width 137 1/8″ (3482mm)
D: Width Between Columns 122 3/8″ (3108mm)
E: Max. Lifting Height 75 3/8″ (1915mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 9 7/8″ (250mm)
H: Max. Underneath Height 66 5/8″ (1692mm)
I: Drive-Thru Clearance 108 1/4″ (2750mm)
J: Width Between Runways 51 1/4″ (1302mm)
K: Outside Edge of Runways 95 1/4″ (2418mm)
L: Min. Four Wheel Align 99 5/8″ (2530mm)
M: Max. Four Wheel Align 182 5/8″ (4640mm)
N: Max. Two Wheel Align 209 1/8″ (5310mm)
Gross Weight 4,429 lbs (2,009kg)
Motor 2.0HP, 220V/60Hz Single Phase

Detailed Images

category
Air control safety device.
category
Double-safety locks
category
Adjustable turnplate blocks. Optional turnplate. Kit No.: 40101
category
High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
category
Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
category
Optional LED light.Kit No.40103
category
Optional length extension kits adds an extra 29″ (737mm) length to the platform. Kits No.: 41801
category

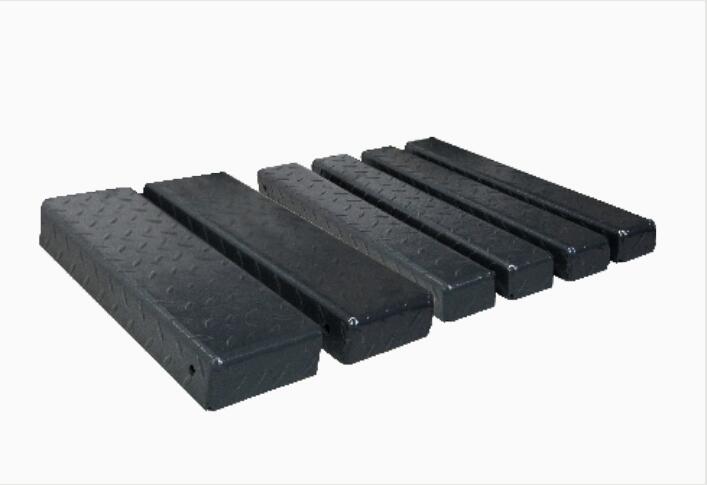

Optional adjustable blocks for alignment 4 post lift. Kits No.: 41803 (used with kits 41801)
