AMGO PRO-12A


The PRO-12A, with a 12,000 lb lifting capacity, provides wheel service maintenance with integrated rear slip plates and it has adjustable turn plate pockets to fit various wheelbases.

Features

  • 12,000 lbs capacity.
  • Air-Lock Released for Safety and Reliability of Convenient Operation
  • Mechanical self lock and cable breaking protection.
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4”(1100mm) and maximum distance is 51 1/8”(1300mm).
  • Optional Rolling Jacks:
    - J6H 6,000lbs manual control
    - J6A 6,000lbs pneumatic pump
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41203
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on electrical components
Model PRO-12A
Style Alignment
Lifting Capacity 12,000 lbs (5,500 kg)
Lifting Time 63s

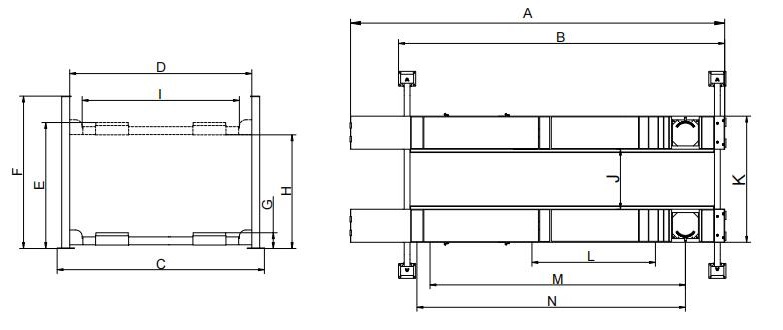

A: Overall Length (Inc.Ramps) 236 5/8″ (6012mm)
B: Overall Length (No.Ramps) 200 3/4″ (5100mm)
C: Overall Width 126 1/4″ (3208mm)
D: Width Between Columns 112 1/4″ (2852mm)
E: Max. Lifting Height 75 3/8″ (1915mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 8 5/8″ (220mm)
H: Max. Underneath Height 67 7/8″ (1724mm)
I: Drive-Thru Clearance 98 3/8″ (2498mm)
J: Width Between Runways 43 1/4″ (1100mm), Max. 51 1/8″ (1300mm)
K: Outside Edge of Runways 83 1/4″ (2116mm), Max. 91 1/8″ (2316mm)
L: Min. Four Wheel Align 78 3/4″ (2000mm)
M: Max. Four Wheel Align 155 7/8″ (3960mm)
N: Max. Two Wheel Align 161 3/8″ (4100mm)
Gross Weight 2,901 lbs (1,316kg)
Motor 2.0HP, 220V/60Hz Single Phase

Detailed Images

category
Air control safety device.
category

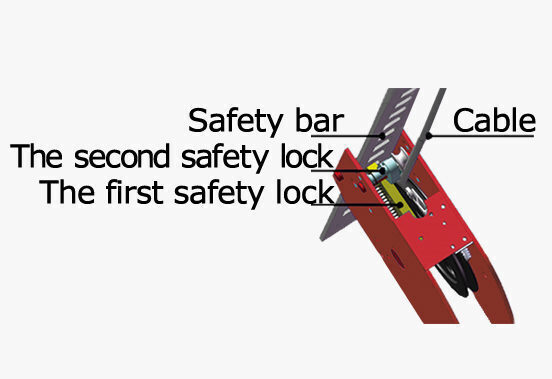

Double-safety locks
category

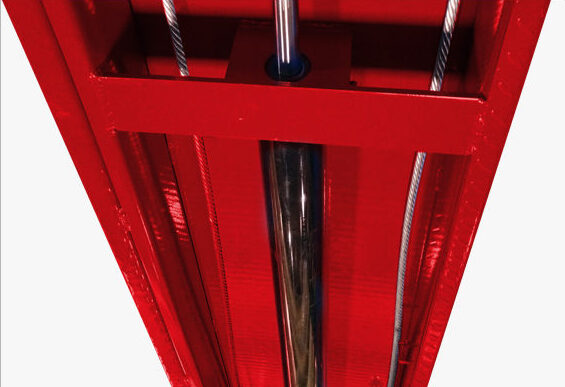

High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
category

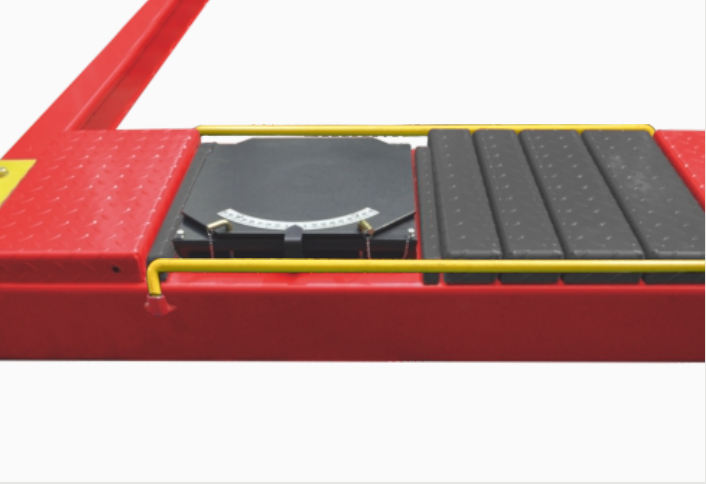

Adjustable turnplate blocks. Optional turnplate. Kit No.: 40101
category

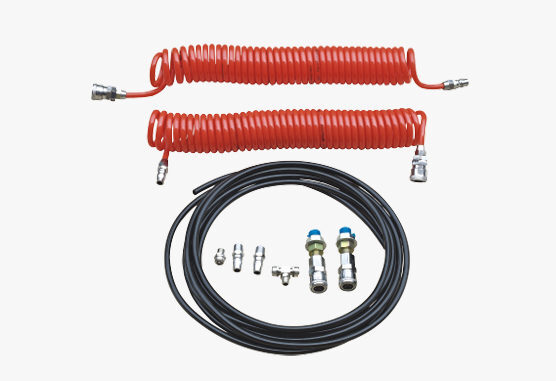

Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
category
Optional LED light.Kit No.40103
category

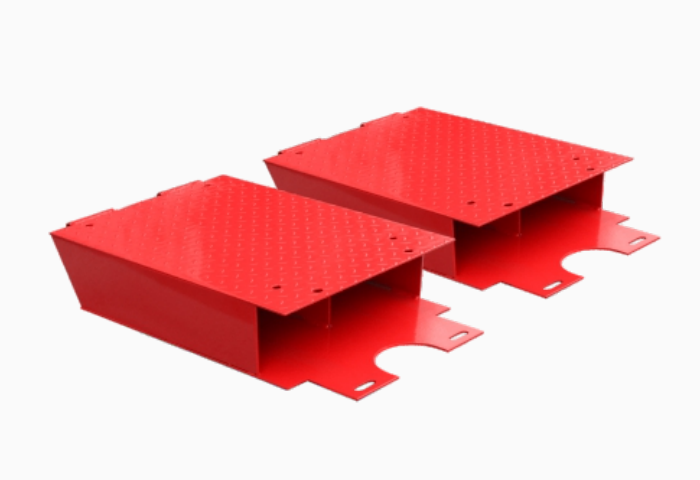

Optional length extension kits adds an extra 26″ (660mm) length to the platform. Kits No.: 41203
category

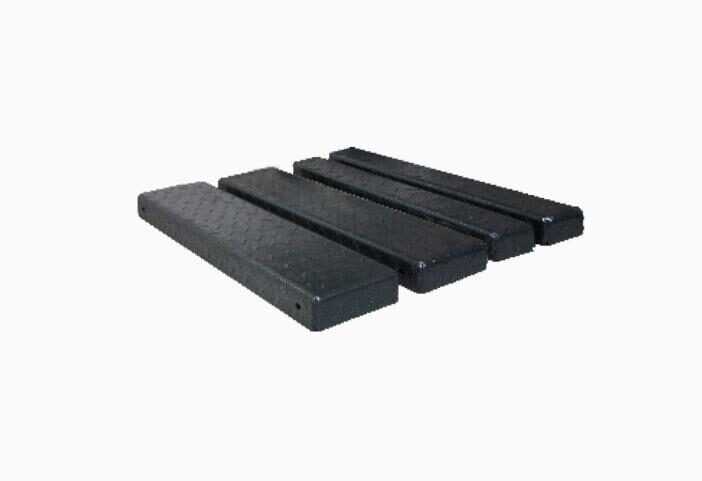

Optional adjustable blocks for alignment 4 post lift. Kits No.:40905(used with kits 41203)
category

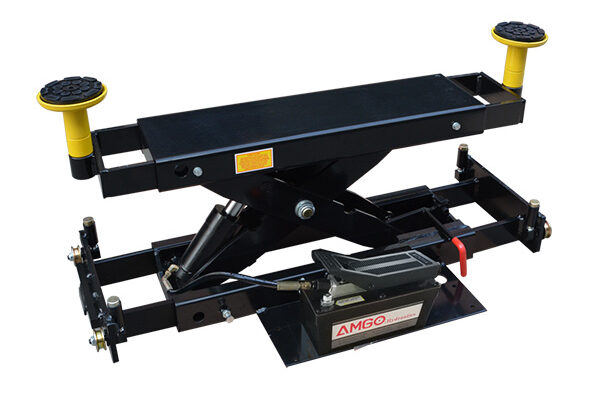

Optional Rolling Jacks: J6A:Pneumatic hydraulic type 6,000lbs;
category

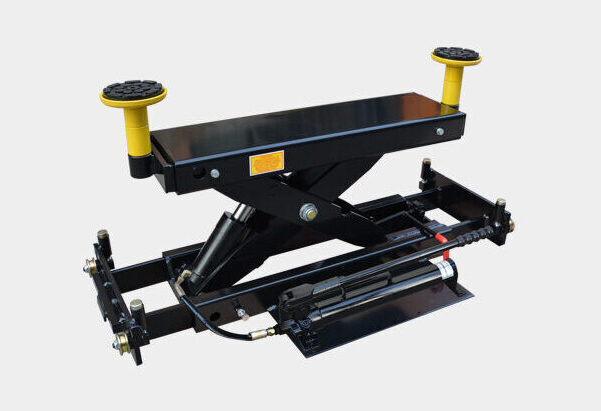

Optional Rolling Jack: J6H: 6,000 lbs with manual pump

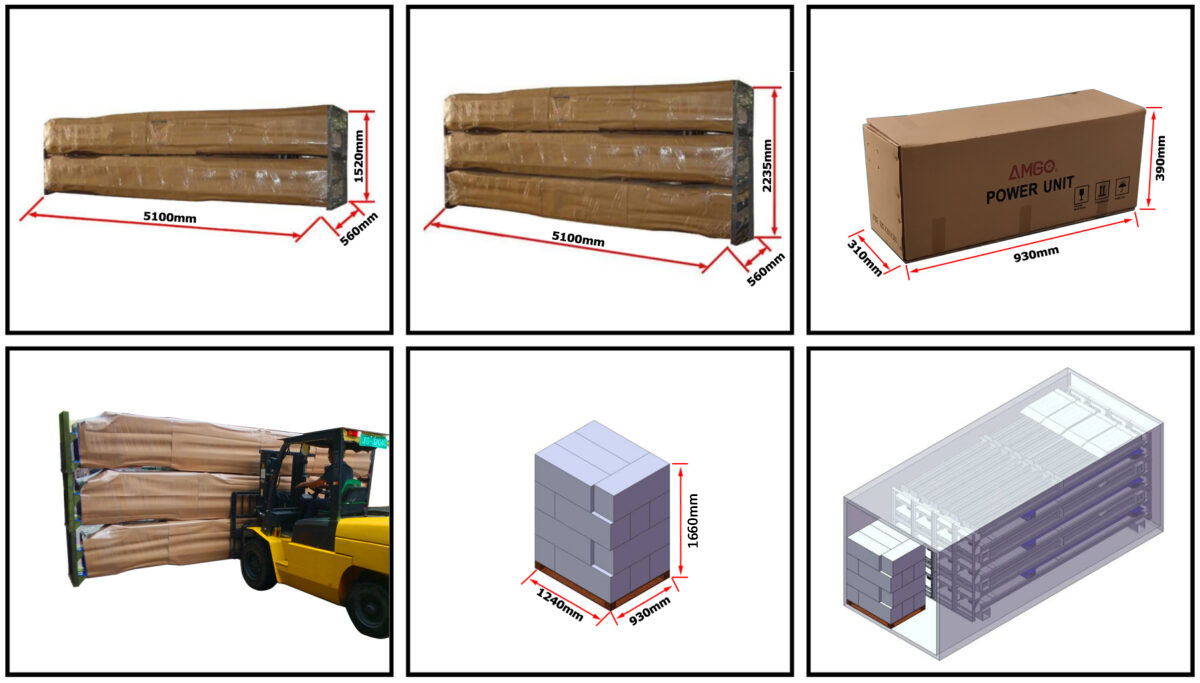

Shipping Information
