AMGO PRO-40E

With the same weight capacity as the PRO-40 but with a runway length of 374”, this lift can fit the longer vehicles for work purposes. Coming Soon.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

Features

  • 40,000 lbs capacity.
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self lock and cable breaking protection.
  • 3/4″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and made to high quality standards.
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.
  • Optional Rolling Jack:
    - RJ-20A 20,000lbs pneumatic pump
Model PRO-40E
Lifting Capacity 40,000 lbs
Lifting Time 176s
A: Overall Length (Inc.Ramps) 425 1/8″ (10800mm)
B: Overall Length (No.Ramps) 374 1/2″ (9514mm)
C: Overall Width 161 3/8″ (4100mm)
D: Width Between Columns 143 7/8″ (3654mm)
E: Max. Lifting Height 74 3/4″ (1900mm)
F: Overall Height 91 7/8″ (2332mm)
G: Minimum Height 10 1/2″ (265mm)
H: Max. Underneath Height 65 7/8″ (1674mm)
I: Drive-Thru Clearance 129 7/8″ (3298mm)
J: Width Between Runways 58 7/8″ (1496mm)
K: Outside Edge of Runways 114 7/8″ (2916mm)
Gross Weight 9,204lbs (4175kg)
Motor 2.0HP, 220V/60Hz Single Phase

Detailed Images

category
Air control safety device.
category
Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kits No.: 40106
category
Optional LED light kits is fitted for every model of AMGO 4-post lifts. LED Kits No.:40103
category
Optional Rolling Jacks: RJ-20A 20,000lbs

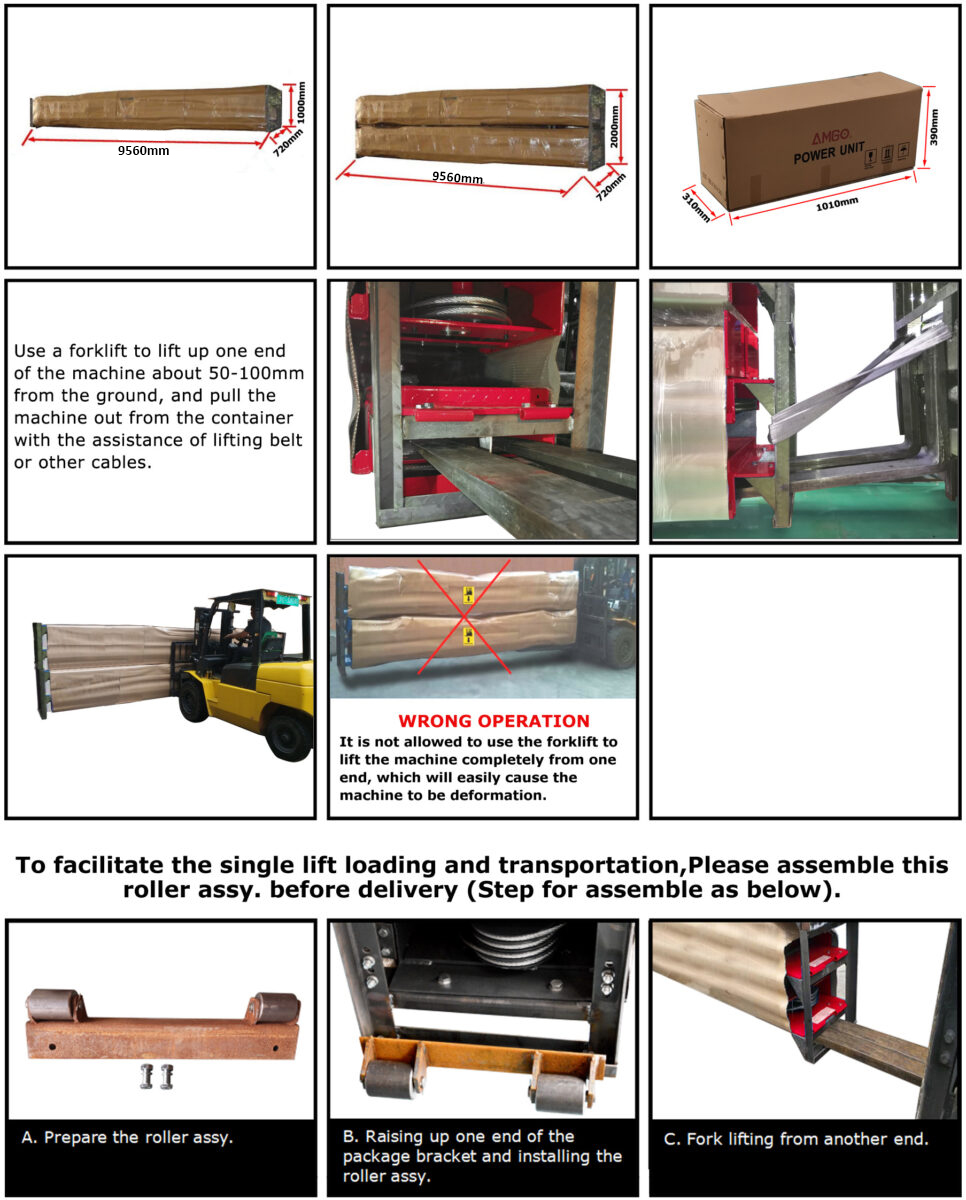

Shipping Information
