AMGO SL-7

AMGO’s newly designed single post lift is the perfect choice when you must quickly lift a vehicle in limited space.The SL-7 is one of the least space-consuming, permanently affixed lifts in the world and can be used in commercial service shops, home garages, or any area where space is at a premium and durability is a must.

Click to download Product Brochure

Click to download Product Manual

Description

Features

Lifting capacity: 7,000 lbs
Max. lifting height: 77 3/4″ (1976 mm)
Min height: 4 3/8″ (110 mm)
Self-lubricating UHMW Polyethylene sliders and self-lubricating bronze bushings.
High quality cylinders and power units are manufactured to high quality standards.
AMGO 5-3-2 Warranty.

Model	SL-7
Lifting Capacity	7,000 lbs
Lifting Time	84S (110V) 32S (220V)

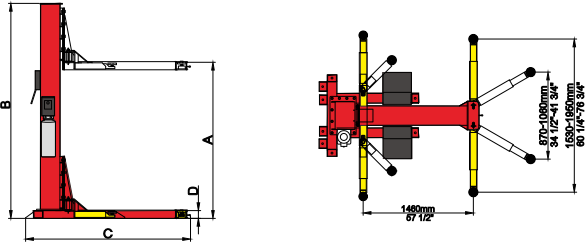

A: Lifting height	72″~77 3/4″ (1830mm ~ 1976mm)
B: Overall Height	108 7/8″ (2766mm)
C: Overall Width	84 1/2″ (2146mm)
D: Minimum Pad Height	4 3/8" (110mm)
Gross Weight	1,488 lbs (675 kg)
Motor	1.0HP，110V/60Hz Single Phase 2.0HP，220V/60Hz Single Phase
