AMGO PRO-30

AMGO’s PRO-30 is a step above our PRO-18, which is an entry level lift in the medium duty truck category, because of its 30,000lb lifting capacity. This lift brings you into the business of working with construction equipment, semi trucks and buses.

Click to download Product Brochure

Click to download Product Manual

Description

Features

30,000 lbs capacity.

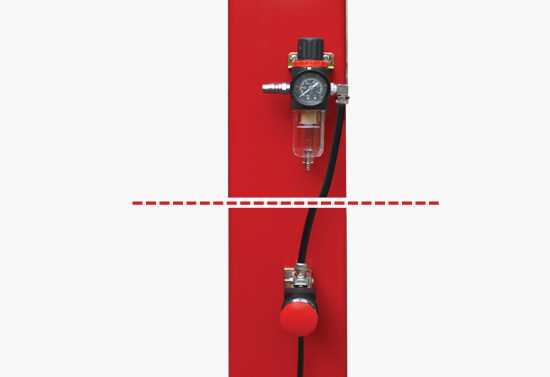

Air-released safety lock for convenient operation and reliability
Mechanical self lock and cable breaking protection.
3/4″ Aircraft quality cable.
Skid proof diamond platform.
Hydraulic cylinders are designed and made to high quality standards.
Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.

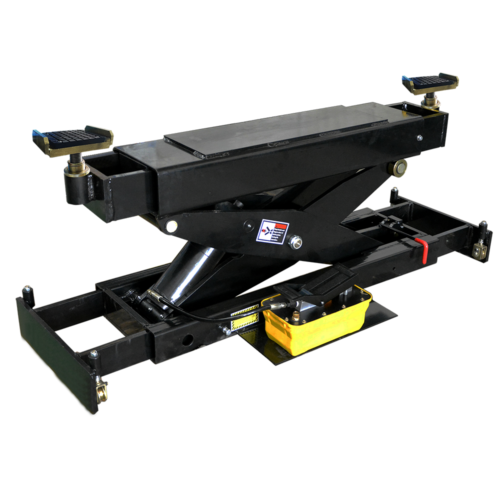

Optional Rolling Jacks:
- RJ-20A 20,000lbs pneumatic pump

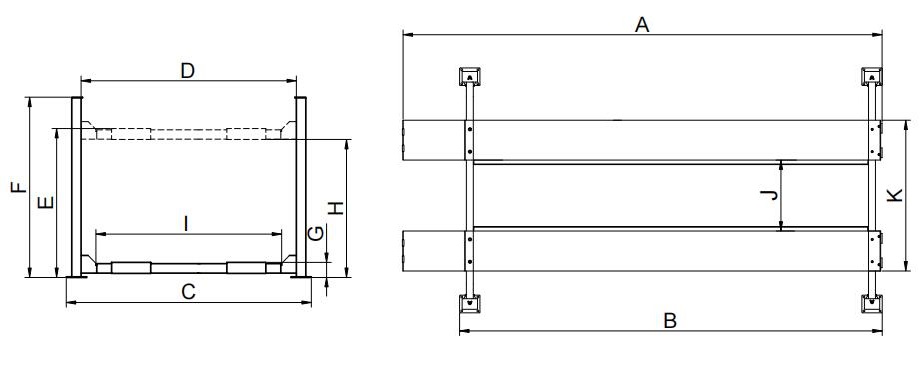

Model	PRO-30
Lifting Capacity	30,000 lbs
Lifting Time	130s
A: Overall Length (Inc.Ramps)	307 1/8″ (7800mm)
B: Overall Length (No.Ramps)	256 1/2″ (6514mm)
C: Overall Width	149 3/8″ (3794mm)
D: Width Between Columns	131 3/4″ (3348mm)
E: Max. Lifting Height	74 3/4″ (1900mm)
F: Overall Height	91 7/8″ (2332mm)
G: Minimum Height	10 1/2″ (265mm)
H: Max. Underneath Height	65 7/8″ (1674mm)
I: Drive-Thru Clearance	117 3/4″ (2992mm)
J: Width Between Runways	54 3/4″ (1390mm)
K: Outside Edge of Runways	102 3/4″ (2610mm)
Gross Weight	5,362 lbs (2,432kg)
Motor	2.0HP, 220V/60Hz Single Phase
