AMGO PRO-18

The PRO-18 is the perfect choice of lift, with the combination of great performance and safety, for your heavy-duty commercial services. The newly engineered PRO-18 four post lift is made stronger, more versatile, and easier to use than most other lifts while able to lift up to 18,000 lbs

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

Features

  • 18,000 lbs capacity.
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self lock and cable breaking protection.
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and made to high quality standards.
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.
  • Optional Rolling Jacks:
    - RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41801
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
Model PRO-18
Style Non-Alignment
Lifting Capacity 18,000 lbs (8,000 kg)
Lifting Time 92s
A: Overall Length (Inc.Ramps) 293 1/4″ (7449mm)
B: Overall Length (No.Ramps) 252 1/4″ (6408mm)
C: Overall Width 137 1/8″ (3482mm)
D: Width Between Columns 122 3/8″ (3108mm)
E: Max. Lifting Height 73 1/2″ (1865mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 7 7/8″ (200mm)
H: Max. Underneath Height 66 5/8″ (1692mm)
I: Drive-Thru Clearance 108 1/4″ (2750mm)
J: Width Between Runways 51 1/4″ (1302mm)
K: Outside Edge of Runways 95 1/4″ (2418mm)
Gross Weight 3,483lbs (1,580kg)
Motor 2.0HP, 220V/60Hz Single Phase

Detailed Images

category
Air control safety device.
category
Double-safety locks
category
High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
category
Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
category

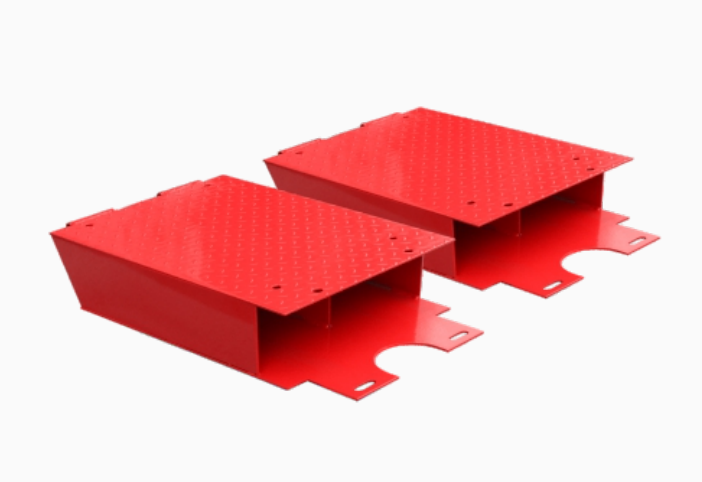

Optional length extension kits adds an extra 29″ (737mm) length to the platform. Kits No.: 41801
category
Optional LED light kits is fitted for every model of AMGO 4-post lifts. LED Kits No.:40103

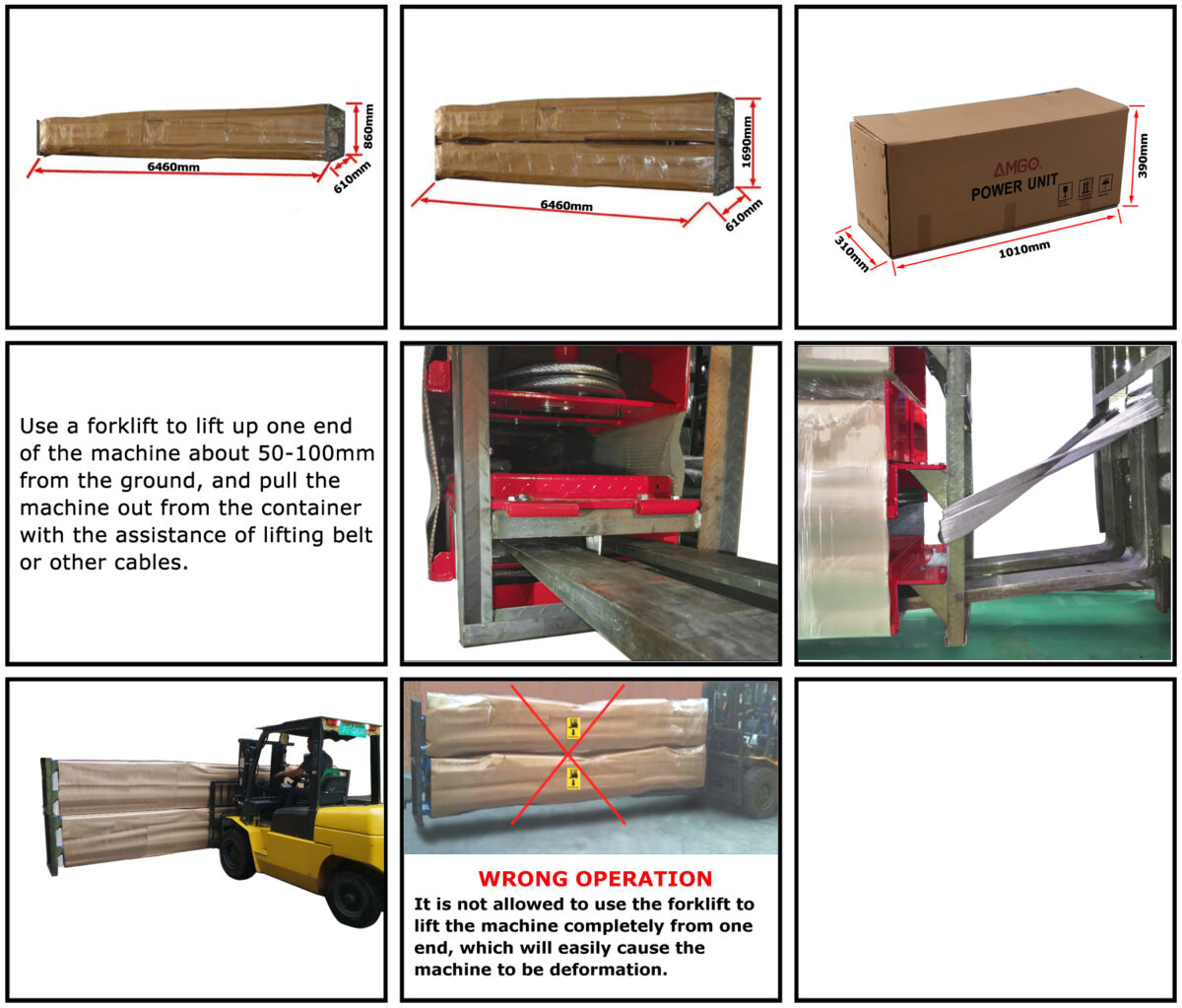

Shipping Information
