AMGO PRO-14E

AMGO powerful 4-post lift provides a 14,000 lbs lifting capacity and features extra long runways to accommodate a wide variety of vehicle types and wheel bases.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

Features

  • 14,000 lbs capacity.
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self lock and cable breaking protection.
  • 1/2″ Aircraft quality cable.
  • Skid proof diamond platform.
  • Hydraulic cylinders are designed and Made to high quality standards.
  • Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 47”(1194mm) and maximum distance is 54 1/2”(1385mm).
  • Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed.
  • Optional Rolling Jacks:
    - RJ-8A: pneumatic hydraulic type 8,000lbs (3,500kg)
    - RJ-10A: pneumatic hydraulic type 10,000lbs (4,500kg)
  • More choices:
    - Optional led lights: No. 40103
    - Optional extension kits: No. 41403
    - Optional air line kit: No. 40102
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
Model PRO-14E
Style Non-Alignment
Lifting Capacity 14,000 lbs (6,500 kg)
Lifting Time 76s
A: Overall Length (Inc.Ramps) 286″ (7265mm)
B: Overall Length (No.Ramps) 245″ (6224mm)
C: Overall Width 130 7/8″ (3324mm)
D: Width Between Columns 116″ (2946mm)
E: Max. Lifting Height 73 1/2″ (1865mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 7 7/8″ (200mm)
H: Max. Underneath Height 66 3/4″ (1695mm)
I: Drive-Thru Clearance 102 1/8″ (2592mm)
J: Width Between Runways 47″ (1194mm), Max. 54 1/2″ (1385mm)
K: Outside Edge of Runways 87″ (2210mm), Max. 94 1/2″ (2401mm)
Gross Weight 2,945lbs (1,336kg)
Motor 2.0HP, 220V/60Hz Single Phase

Detailed Images

category
Air control safety device.
category
Double-safety locks
category
High grade cylinders made to high quality standards, NOK seals, strict quality control and testing.
category
Optional airline kit. Easy to install with all models of rolling jacks with pneumatic pump accessories. Kit No.:40102
category
Optional length extension kits adds an extra 26″(660mm)length to the platform. Kits No.: 41403.
category
Optional LED light kits is fitted for every model of AMGO 4-post lifts. LED Kits No.:40103

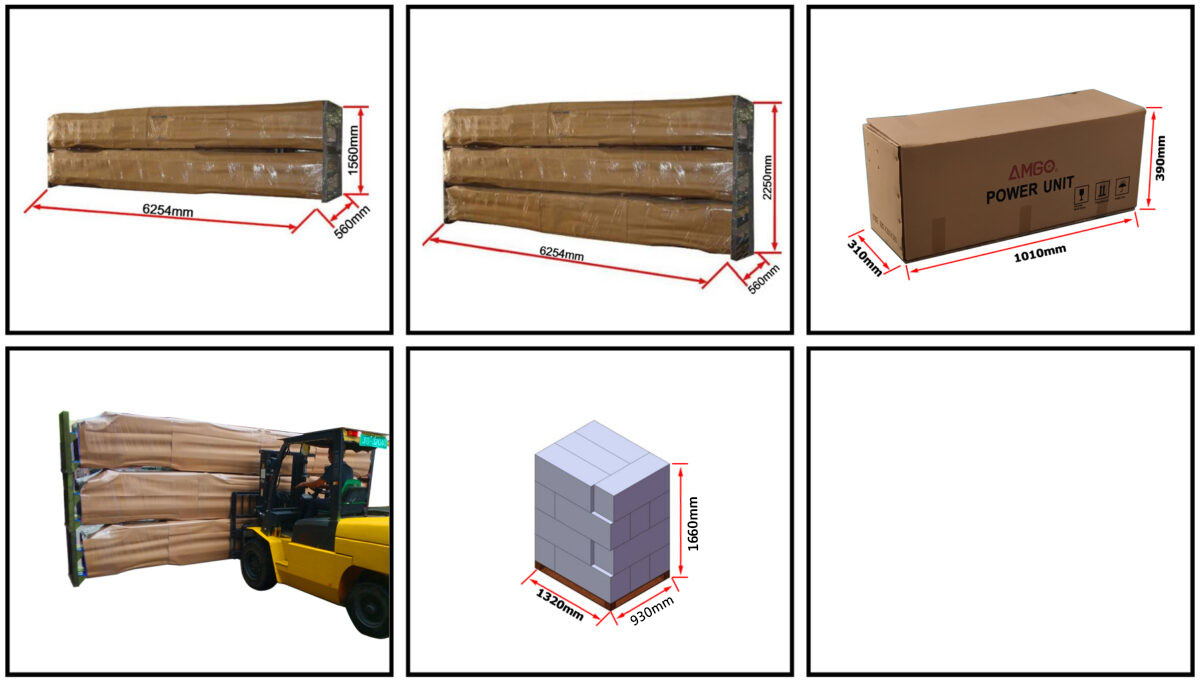

Shipping Information
