AMGO BP-12

AMGO BP Series Base plate two post lifts are stronger and more convenient to operate than most all other lifts in the world. The rugged BP-12 can lift vehicles up to 12,000 lbs. and is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO two post lifts are manufactured according to high-quality standards, while using critical materials and parts choosing, with advanced features and innovative technology.

Click to download Product Brochure

Click to download Product Manual

Description

Features

12,000 lbs capacity, chain-driven 2 post lift with base plate heavy duty design
Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety
4 three-stages arms suitable for more vehicles
Automatic arm restraints keep the arms locked in their proper positions
Width adjustment:width between columns 118 1/8″(3000mm)and 123 1/2″(3137mm)
Self-lubricating UHMW Polyethylene sliders and bronze bushings
Aircraft quality cable is used for synchronization
Detachable foot guard and tool tray to allow for a clutter free work space
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components

Model	BP-12
Lifting Capacity	12,000 lbs (5,443 kg)
Lifting Time	65s

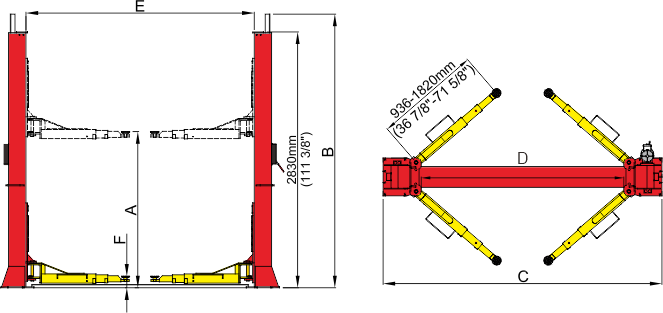

A: Lifting height	73 1/4″ ~ 82 1/4″ (1860~2089mm)
B: Overall Height	122 1/2″ (3110mm)
C: Overall Width	145 3/8″ ~ 150 3/4″ (3692 / 3829mm)
D: Drive-Thru Clearance	104 1/2″ ~ 109 7/8″ (2653 / 2790mm)
E: Width Between Columns	118 1/8″ ~ 123 1/2″ (3000 / 3137mm)
F: Minimum Pad Height	4 3/4″ (120mm)
Gross Weight	2,150 lbs (975 kg)
Motor	2.0HP/220V/60Hz,Single Phase

Detailed Images

Single point safety release makes it easier for operators to unlock both column locks from one column.

Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

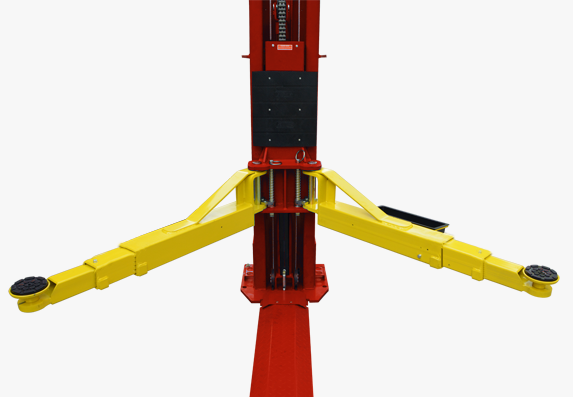

4 three-stage arms are suitable for more vehicles.

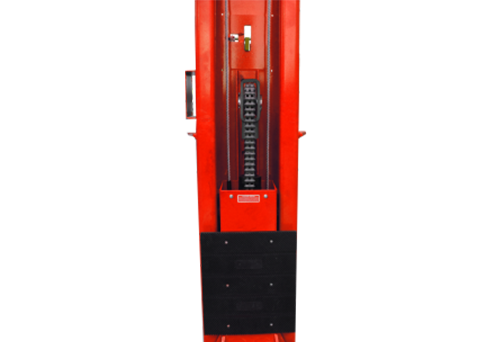

The chain protection cover prevents the chain from slipping off.

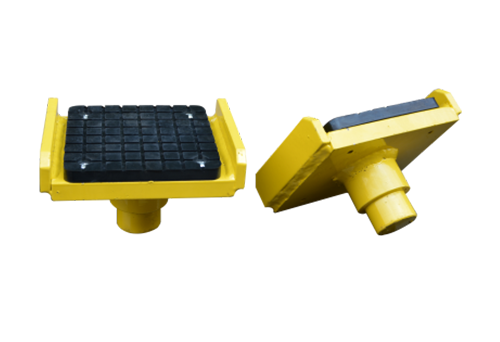

The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

Optional saddle adapter. kits No. for light truck:20802 kits No. for heavy-duty truck:21103

The Optional Base Plate Kits No.21501,lncluding extension frames,and 14 pcs of our standard Anchor Bolts.

Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
