AMGO OH-15

OH-15 two post lift are the new products developed by AMGO for heavy duty purpose with a lifting capacity up to 15000lbs. Heavy-duty construction,self-lubricating bush,sliders and high quality parts to make the lift almost no maintenance required.

Click to download Product Brochure

Click to download Product Manual

Description

Features

15,000 lbs capacity
Single-point safety release
4 two-stages arms allowing to lift the trucks from short to long wheel base
Automatic arm restraints keep the arms locked in their proper positions
Self-lubricating UHMW Polyethylene sliders and bronze bushings
Adjustable two height setting accommodate varying service ceiling heights
Aircraft quality cable is used for synchronization
Detachable foot guard and tool tray to allow for a clutter free work space
Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

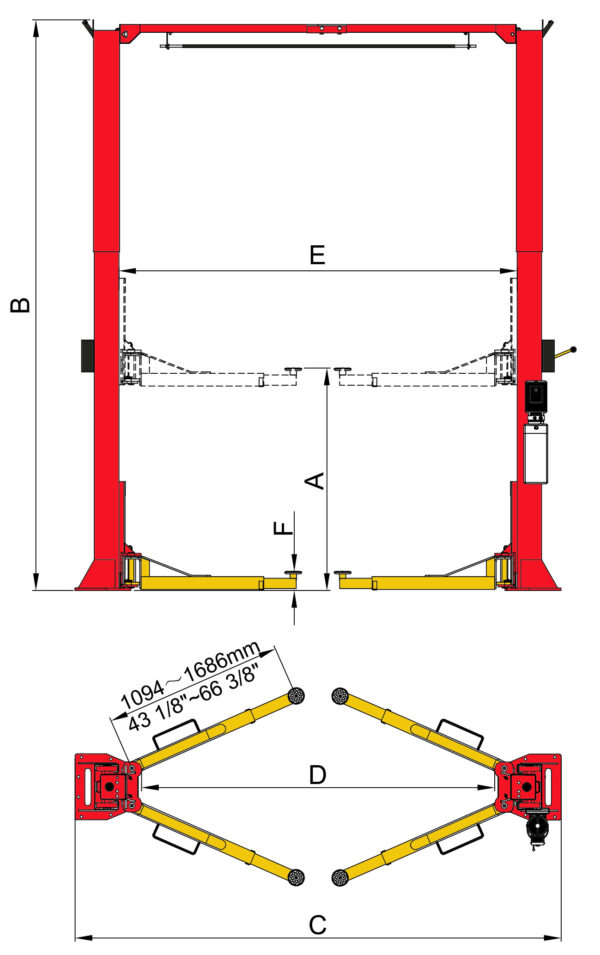

Model	OH-15
Lifting Capacity	15,000 lbs (6,800 kg)
Lifting Time	84s
A: Lifting height	75 1/4″ ~ 84 1/4″ (1912~2141mm)
B: Overall Height	174″/ 198″ (4420/5029mm)
C: Overall Width	150 3/4″ (3829mm)
D: Drive-Thru Clearance	109 3/4″ (2787mm)
E: Width Between Columns	123 1/2″ (3137mm)
F: Minimum Pad Height	7 1/2″ (185mm)
Gross Weight	2,573 lbs (1167 kg)
Motor	2.0HP/220V/60Hz,Single Phase

Detailed Images

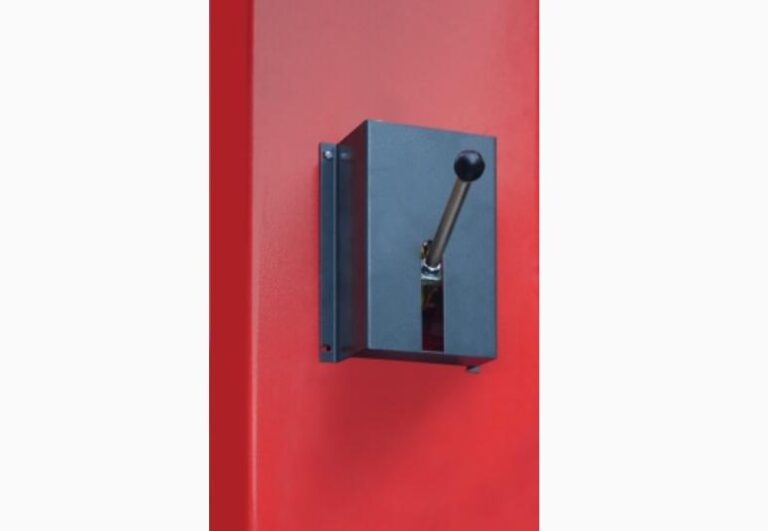

Single point safety release makes it easier for operators to unlock both column locks from one column.

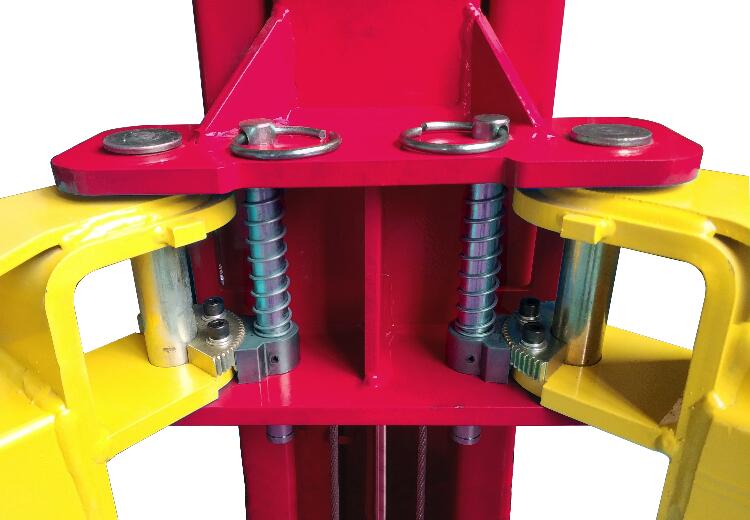

Lifting arm lock automatic release device, high strength gear rack, more stable and safer.

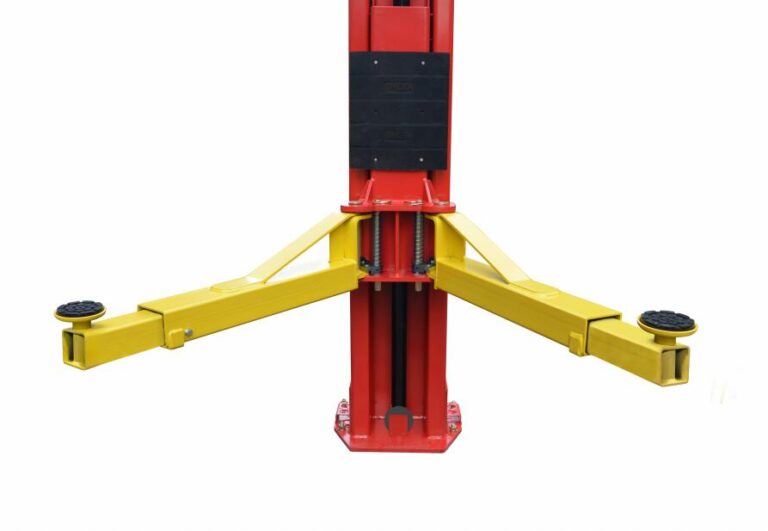

The OH-15 is designed with 4 two-stages arms. it is tronger for heavy-duty trucks.

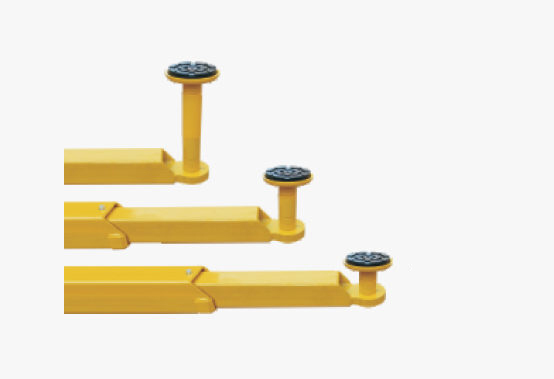

The stackable rubber pads package with 1.5″, 2.5″, 5″ extension adapters.

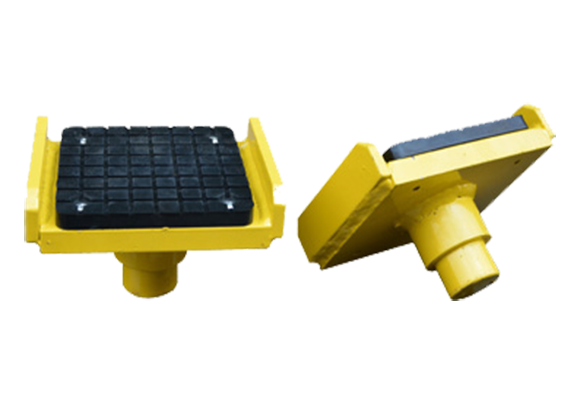

Optional saddle adapter. For light truck No.: 20802. For heavy-duty truck: 21103

The Optional Base Plate Kits No.21501,lncluding extension frames,and 14 pcs of our standard Anchor Bolts.

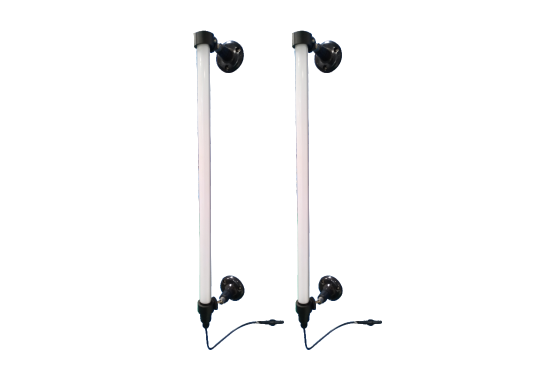

Optional LED light for all two post lifts. Floor plate two post lifts LED light，Kits No.:20101; Clear floor two post lifts LED light，Kits 20101 plus extension cable 20103
