AMGO OH-12S

Our newest Heavy Duty two post lift: OH-12S is the ideal choice for shops and service centers with limited ceiling height. The OH-12S can be set to three different heights, only available at AMGO.

Click to download Product Brochure

Click to download Product Manual

Description

Features

12,000 lbs capacity
Single-point safety lock release
Exclusive: adjustable three height setting accommodates varying service ceiling heights
4 three-stage arm design allows to lift vehicles from short to long wheel base
Automatic arm restraints keep the arms locked in their proper positions

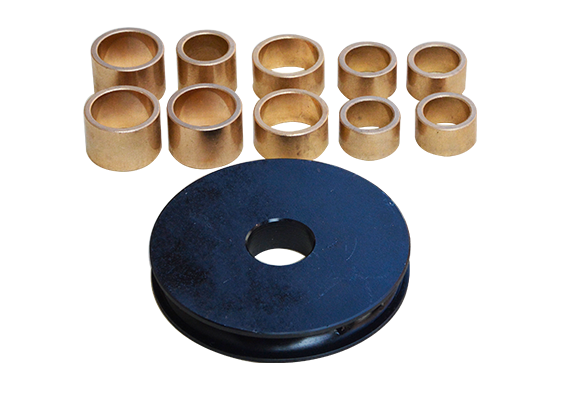

Self-lubricating UHMW Polyethylene sliders and bronze bushings
Aviation standard durable cables used for synchronization

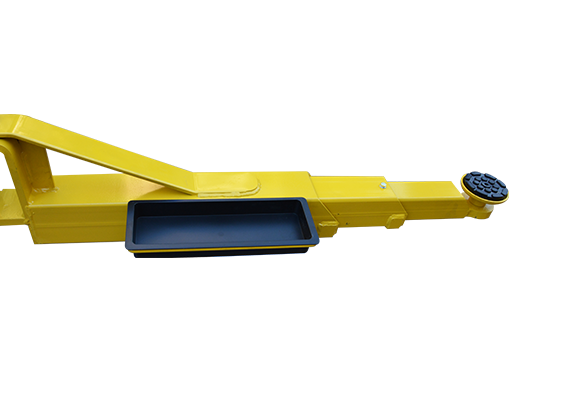

Detachable foot guard and tool tray come standard
5-3-2 warranty: 5 years for steel construction, 3 years for hydraulic parts,and 2 years for electrical components.

Model	OH-12S
Lifting Capacity	12,000 lbs (5,443 kg)
Lifting Time	69s
A: Lifting height	72 1/2″ ~ 81 1/2″ (1842~2071mm)
B: Overall Height	143 1/8″/155 1/8″/167 1/8″ (3635/3940/4245mm)
C: Overall Width	150 3/4″ (3829mm)
D: Drive-Thru Clearance	109 3/4″ (2787mm)
E: Width Between Columns	123 1/2″ (3137mm)
F: Minimum Pad Height	4 1/2″ (115mm)
Gross Weight	2,174 lbs (986 kg)
Motor	2.0HP/220V/60Hz,Single Phase
