AMGO SML-7

The SML-7 is a portable single-column lift that is perfect for shops or homeowners who don’t want to take up space. The lift allows the operator to walk under the vehicle or move the lift around.

Contact Us Now
Click to download Product Brochure
Click to download Product Manual

Features

  • 7,000lbs capacity, portable single post lift.
  • Max. lifting height: 77 3/4″ (1976 mm)
  • Min height: 4 3/8″ (110 mm)
  • Self-lubricating UHMW Polyethylene sliders and a self-lubricating bronze bushings.
  • High quality cylinders and power units are manufactured to high quality standards.
  • AMGO 5-3-2 Warranty.
Model SML-7
Lifting Capacity 7,000 lbs
Lifting Time 84S (110V) 32S (220V)

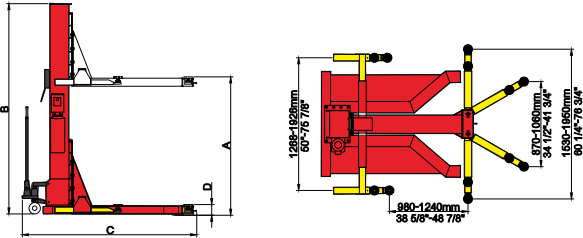

A: Lifting height 72″~77 3/4″ (1830mm ~ 1976mm)
B: Overall Height 108 7/8″ (2766mm)
C: Overall Width 90 3/8″ (2295mm)
D: Minimum Pad Height 4 3/8 “（110 mm）
Gross Weight 1,916 lbs（869 kg）
Motor 1.0HP，110V/60Hz Single Phase 2.0HP，220V/60Hz Single Phase

Detailed Images

category

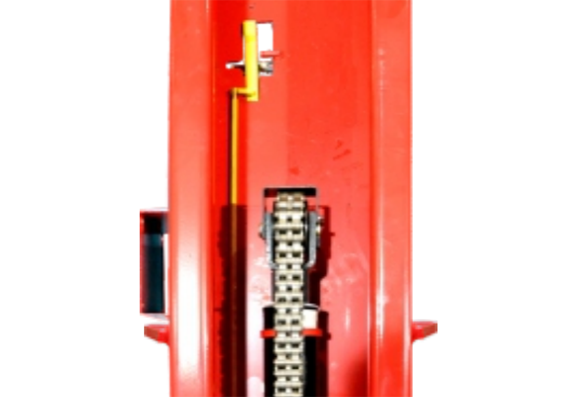

A manually locking release safety device controls the double locks.
category
Two locks, one release. Only available from AMGO.
category

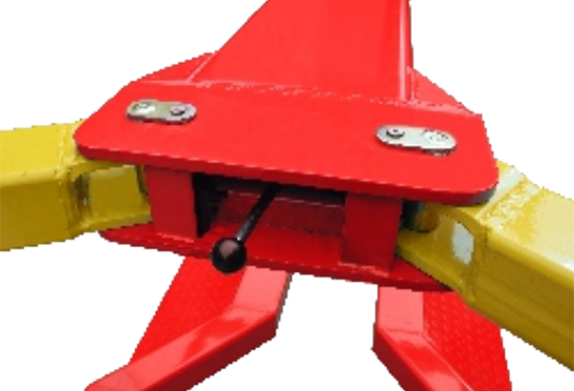

Arm locking device with easy release handles.
category

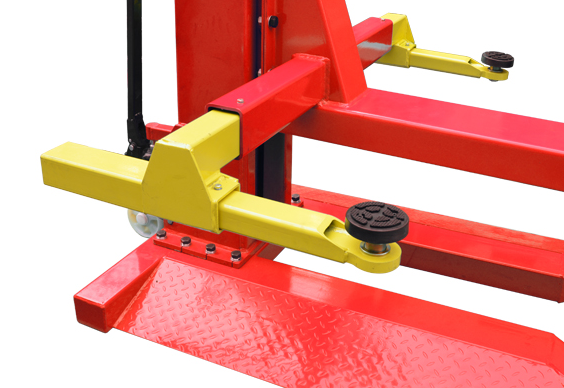

Adjustable arms, two stage stretching.
category

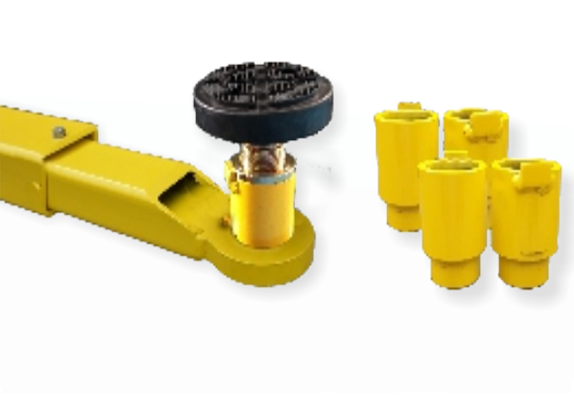

Features screw and insert rubber pads.
category

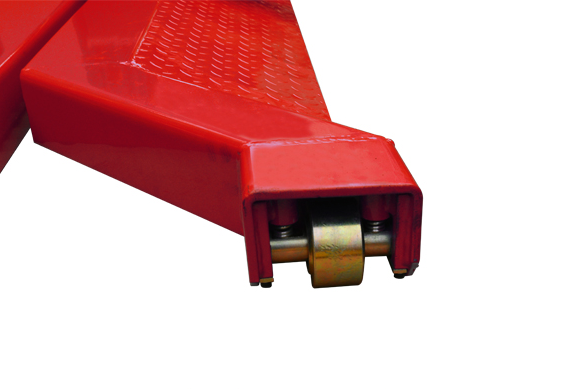

Portable roller device to easily move the lift.
category

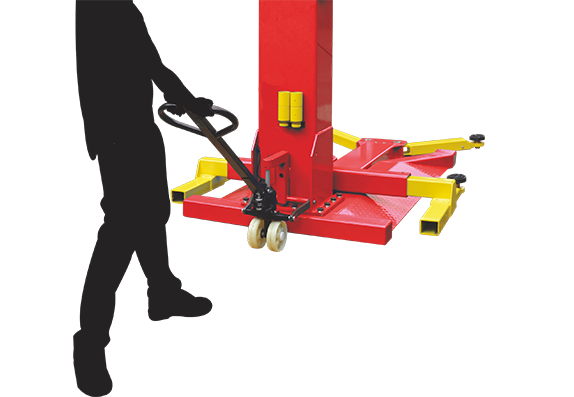

"pallet jack" style device allows the lift to move freely to wherever the job may be.
category

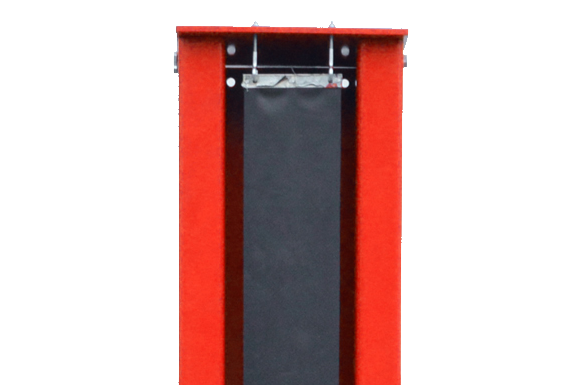

Dust cloth provides protection to the chain and gives the SML-7 an elegant appearance.

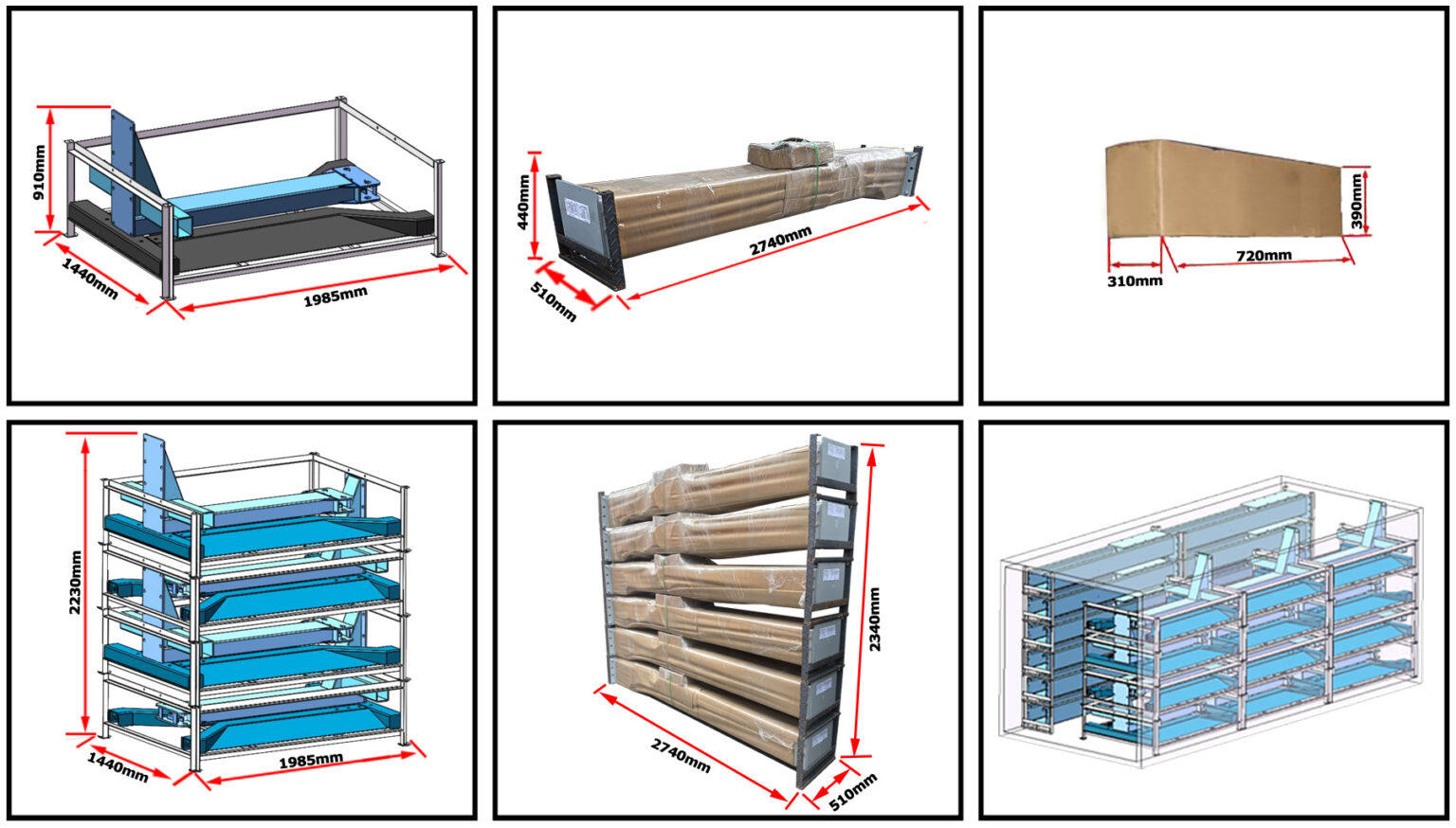

Shipping Information
